Page 104
10-6
Item
Part No.
Qty.
Description Of Part
9104-3367
1
SWAY CYLINDER ASSY (includes
all items)
9103-4297
1
SEAL KIT (includes items 5, 6, 7, 8,
10, 11, 13, & 14)
1
9104-4298
1
TUBE ASSY (includes item 2)
2
9108-4176
1
BUSHING
3
8867-1033
1
LUBE FITTING, STRAIGHT 1/4-28
4
9103-4286
1
LOCK NUT (torque to 590 ft. lbs.)
5
2
WEAR RING
6
1
SEAL
7
1
O-RING
8
1
O-RING
9
9103-4291
1
PISTON
10
1
BACK-UP RING
11
1
O-RING
12
9103-4299
1
GLAND
13
1
SEAL
14
1
WIPER
15
9103-4300
1
ROD ASSY (includes item 16)
16
9108-4176
2
BUSHING
17
8867-1033
1
LUBE FITTING, STRAIGHT 1/4-28
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE FOR
SERVICE.

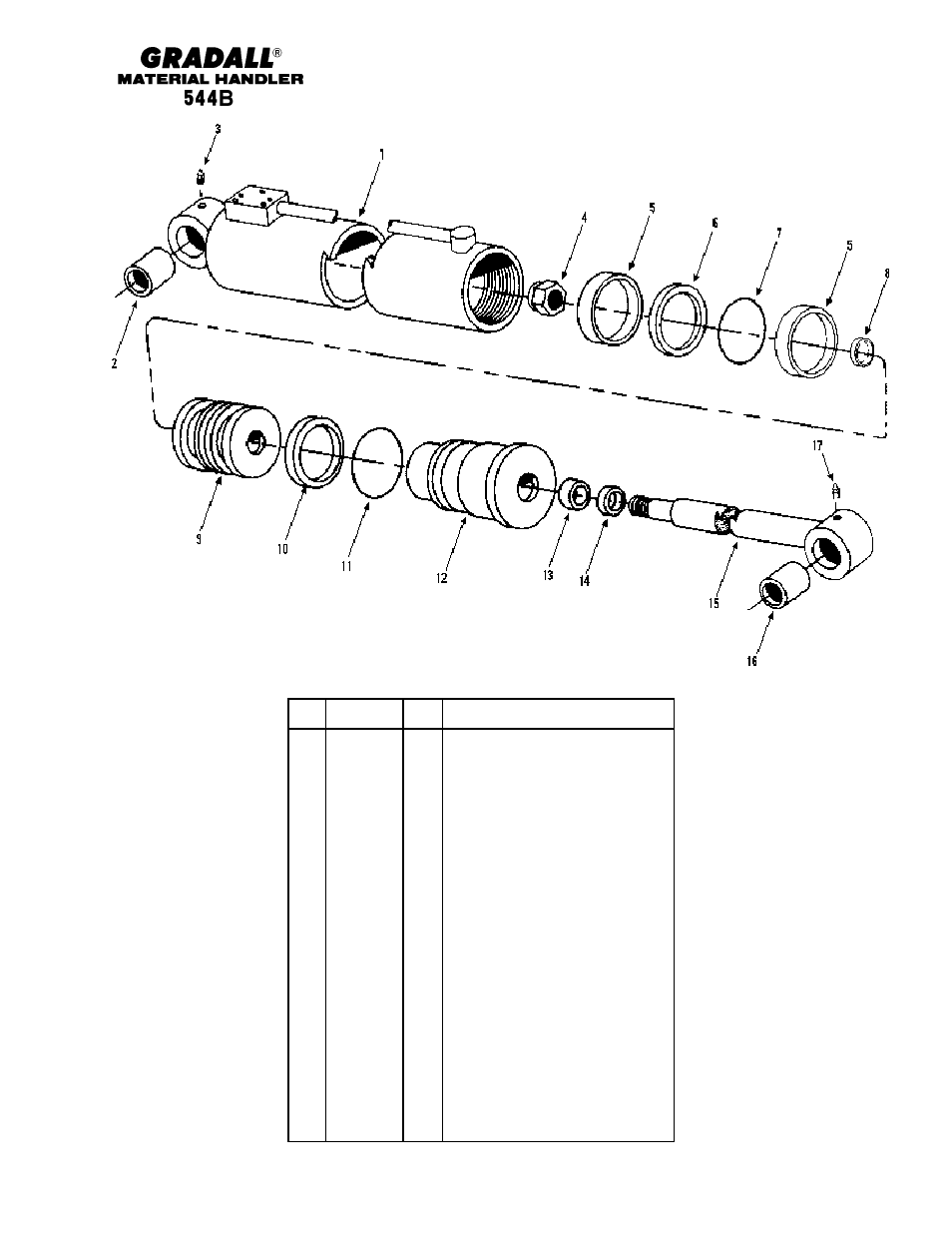

HYDRAULIC COMPONENTS
Sway Cylinder
Starting Serial No. 0155299S
Original Issue 3-90
