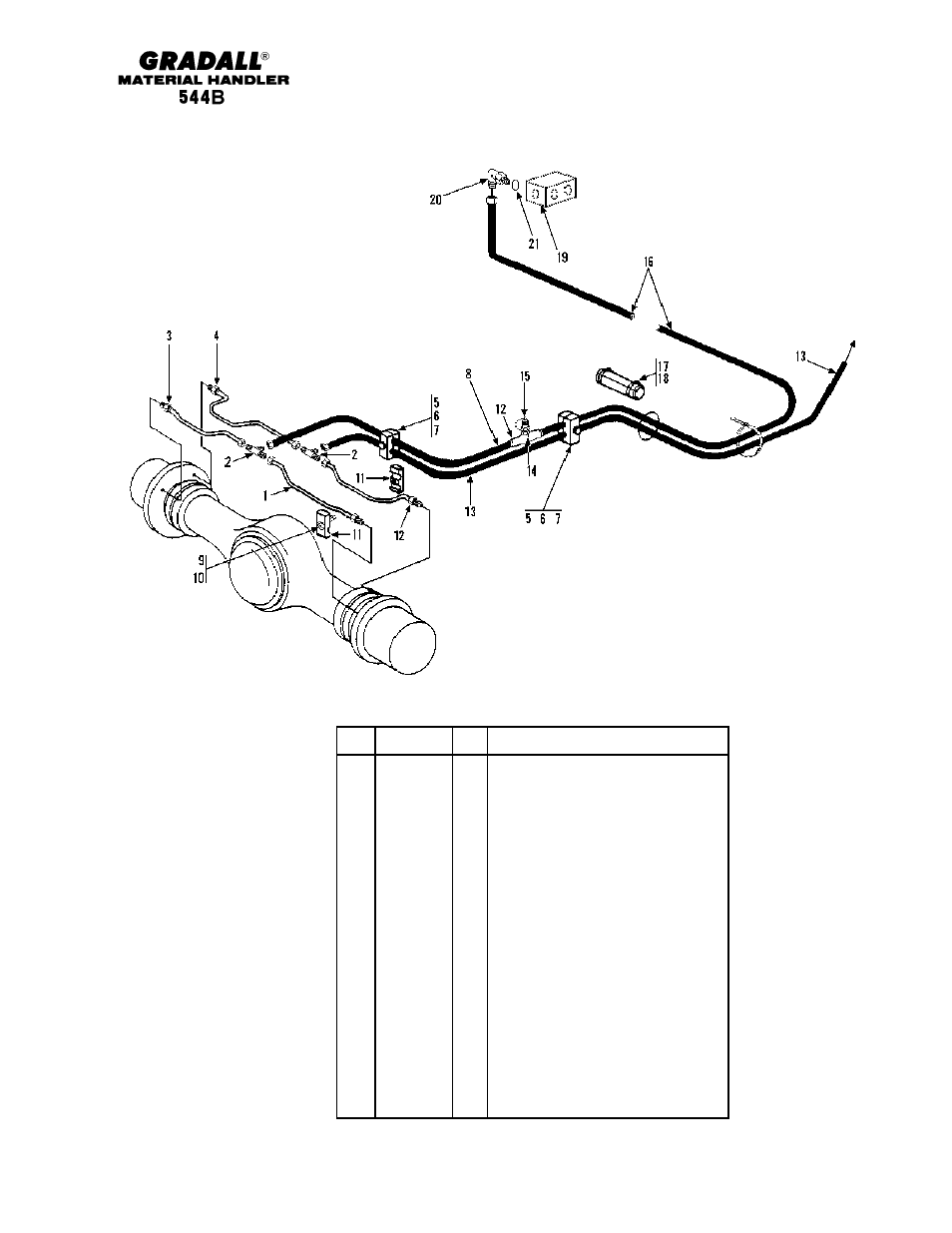

BRAKES
Hydraulics & Parking Brake Lines
Starting Serial No. 0155299S
Original Issue 3-90
8-1
TO PARKING
BRAKE VALVE
(SEE PAGE 8-2)
Item Part No. Qty. Description Of Part
1 9104-3293 1 TUBE ASSY
2 8866-1305 2 UNION TEE, 3/8 TUBE
3 9104-3294 1 TUBE ASSY
4 9104-3189 1 TUBE ASSY
5 7713-3177 2 HEX HD CAPSCREW
6 7713-3140 2 COVER PLATE
7 7713-3139 2 CLAMP SET
8 8471-7524 1 HOSE ASSY
9 8820-1005 2 HEX HD CAPSCREW, 1/4-20X1, GR5
10 8856-1002 2 FLAT WASHER, 1/4
11 7713-3270 2 CLAMP SET
12 9104-3190 1 TUBE ASSY
13 8471-7522 1 HOSE ASSY
14 9104-3091 1 FEMALE BRANCH TEE
15 9103-3032 1 MINI CHECK COUPLING
16 8471-7523 1 HOSE ASSY
17 9002-7178 AR NYLON HOSE TIE
18 9104-1258 1 HOSE
19 9104-3076 Ref BRAKE VALVE ASSY (see page
10 -19 for details)
20 8866-2064 1 ELBOW, 90 DEGREES (includes
item 21)
21 8859-1204 1 O-RING
