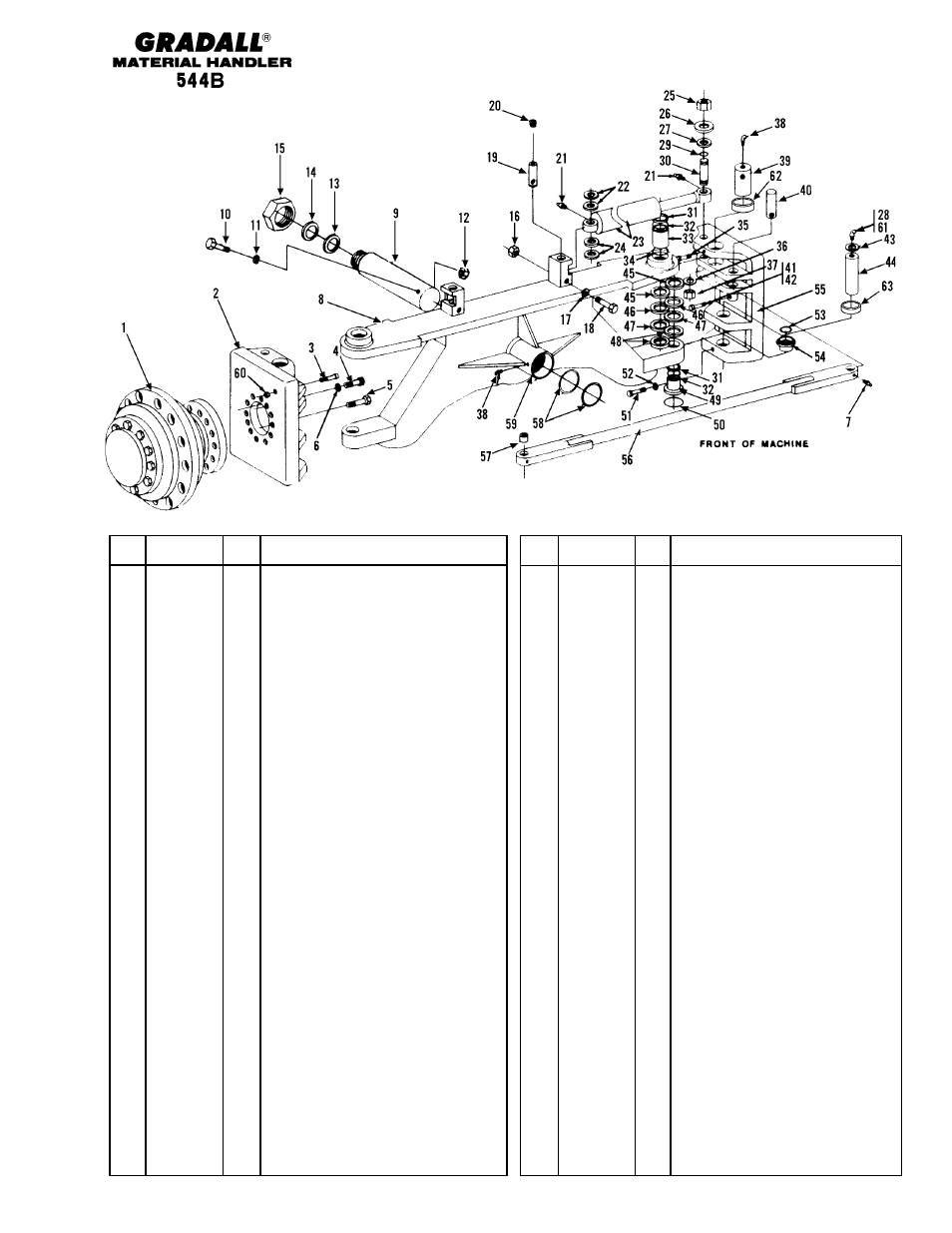

CHASSIS & ATTACHING PARTS
Rear Steering Axle & Attaching Parts
Starting Serial No. 0155369
Original Issue 6-93
Revised 6-1-99
Item Part No. Qty. Description Of Part
28 9103-3445 2 LUBE FITTING
29 8859-1019 2 O-RING
30 9104-1481 2 STEERING CYLINDER PIN
31 9112-3030 4 BACK-UP RING
32 8859-1032 4 O-RING
33 9112-3028 2 BUSHING
34 8692-1268 2 LIP SEAL
35 8821-1121 2 SOCKET HD CAPSCREW,
1/2-13X6-1/2, GR8
8852-1208 2 HEX LOCKNUT, 1/2
36 9104-1459 2 WASHER
37 8850-1416 2 HEX JAM NUT, 1-14, (lubricate &
torque to 425-475 ft. lbs.)
38 8867-1022 4 LUBE FITTING, 30 DEGREES, 1/8
39 9108-1693 2 UPPER KING PIN
40 9104-1439 2 TIE ROD PIN
41 8320-1140 2 HEX HD CAPSCREW, 3/8-16X2-3/4,
GR8
42 8852-1306 2 LOCKNUT, 3/8-16
43 8858-1323 2 RETAINING RING
44 9108-1382 2 LOWER KING PIN
45 9104-1596 4 SHIM, (20 gauge, use as required)
46 9104-1449 4 SHIM, (.060 thick, use as required)
47 9104-1450 4 SHIM, (.0478 thick, use as required)
48 9104-1451 6 SHIM, (.106 thick, use as required)
49 9112-3027 2 BUSHING
50 9112-3029 2 O-RING
51 8821-2321 2 SLOT HD CAPSCREW,
5/8-11X3-3/4, GR8
52 8855-1153 2 LOCKWASHER, 5/8
53 8859-1104 2 O-RING
54 9112-1091 2 THRUST BUSHING
55 9112-0003 1 L.H. STEERING KNUCKLE
56 9116-6063 1 TIE ROD, (includes item 57)
57 9104-3247 2 SELF-ALIGNING BUSHING
58 2460-1570 2 LIP SEAL
59 9112-3031 2 BUSHING
60 8850-1110 2 HEAVY HEX JAM NUT, 5/8-11
61 9103-3444 2 STREET ELBOW
62 9112-1239 2 BUSHING
63 9112-1240 4 BUSHING
Item Part No. Qty. Description Of Part
9103-5240 1 STEERING KNUCKLE KIT, (includes
items 26, 27, 29, 31, 32, 33, 34,
35, 38, 39, 43 thru 54, 62, & 63, one kit
will do both sides)
9104-5152 AR STEERING CYLINDER PIN KIT,
(includes one each of items 25, 26, 27,
29, 30, 36, & 37, one kit needed for each
side)
1 1 DRIVE HUB, (see page 6-17 for details)
2 9112-0004 1 R.H. STEERING KNUCKLE
3 8821-2321 2 SOCKET HD CAPSCREW,
5/8-11X3-3/4, GR8
4 8320-1006 12 HEX HD CAPSCREW, 3/4-10X2, GR8,
(lubricate and torque to 270-290 ft. lbs.)
5 9104-3222 4 CAPSCREW, 12 PT. 3/4-10X2,
(lubricate and torque to 270-290 ft. lbs.)
6 8668-1572 12 HARDENED WASHER, 3/4
7 8867-1001 2 LUBE FITTING, STRAIGHT, 1/8
8 9104-6114 1 REAR AXLE WELDMENT, (includes
items 33, 49, & 59)
9 9103-1440 1 REAR AXLE MOUNTING PIN
10 9002-0247 1 HEX HD CAPSCREW, 1-1/4-7X6
11 8856-1119 1 FLAT WASHER, 1-1/4
12 8510-1098 1 HEX NUT, 1-1/4-7
13 9020-6846 AR SHIM, (1/8 thick)
14 9103-1009 AR SHIM, (1/4 thick)
15 9002-2234 1 HEX LOCKNUT
16 8850-1006 2 HEX NUT, 3/8-16
17 8855-1011 2 LOCKWASHER, 3/8
18 8320-1144 2 HEX HD CAPSCREW, 3/8-16X5-3/4,
GR5
19 9108-1695 2 STEERING CYLINDER PIVOT PIN
20 8871-1280 2 PIPE PLUG
21 8867-1033 4 LUBE FITTING,STRAIGHT,1/4-28
22 9104-1598 AR SHIM
23 2 STEERING CYLINDER ASSY, (see page
10-7 for details)
24 9020-1918 AR SHIM, (10 gauge thick)
25 8852-1312 2 HEX LOCKNUT, 3/4-10
26 9108-1415 2 DIRT SHIELD
27 9104-1732 2 SPACER
2-5
*
PCN 980725, 980730 - JH * Changed Description on Steering Knuckle Kit; changed Part No. on items 2 & 55;
added items 62 & 63; added service note and revised illustration.
*
*
*
*
NOTE: All machines must bore out Steering Knuckles to use items 62 & 63. Unless you
have purchased new Steering Knuckles part number 9112-0003 & 9112-0004. See
engineering print that comes with the Steering Knuckle Kit for details.
