Page 128
10-26

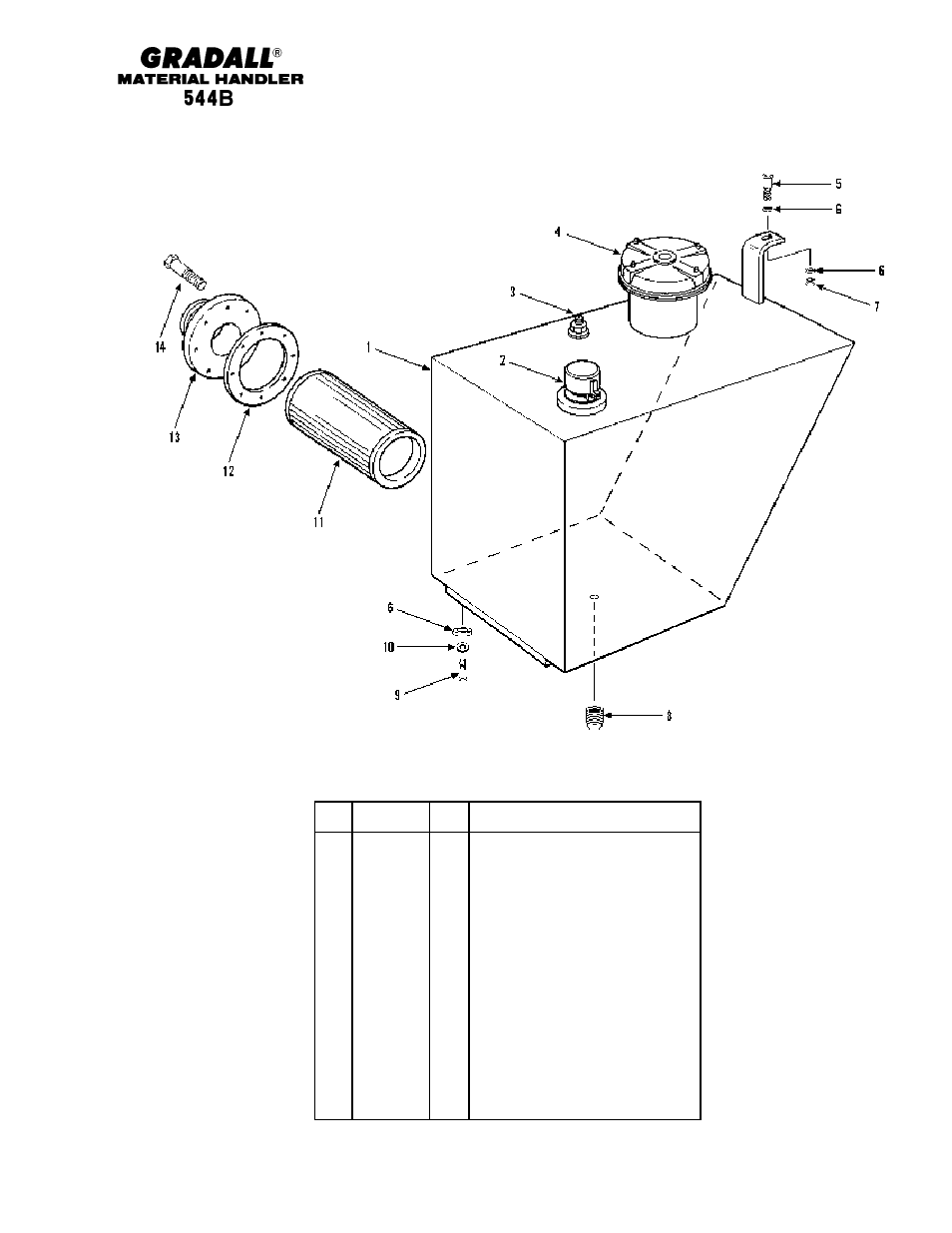

HYDRAULIC COMPONENTS
Hydraulic Oil Reservoir
Starting Serial No. 0155299S
Original Issue 3-90
Item
Part No.
Qty.
Description Of Part
1
9103-6002
1
HYDRAULIC OIL TANK
2
9020-5222
1
FILLER-BREATHER ASSY (includes
gasket and mounting hardware)
3
9040-3419
1
STANDPIPE WELDMENT
4
Ref
OIL RESERVOIR FILTER (see page
10-25 for details)
5
8820-1070
1
HEX HD CAPSCREW, 1/2-13X2-1/4,
GR5
6
8856-1111
4
FLAT WASHER, 1/2
7
8852-1208
1
HEX LOCKNUT, 1/2-13
8
8871-1255
1
SQUARE HD PIPE PLUG, 1"
9
8820-1066
2
HEX HD CAPSCREW, 1/2-13X1-1/4,
GR5
10
8855-1013
2
LOCK WASHER, 1/2
11
9041-0295
1
SUCTION FILTER
12
9041-0294
1
GASKET
13
9103-6003
1
FLANGE WELDMENT
14
8820-1035
8
HEX HD CAPSCREW, 3/8-16X1, GR5
