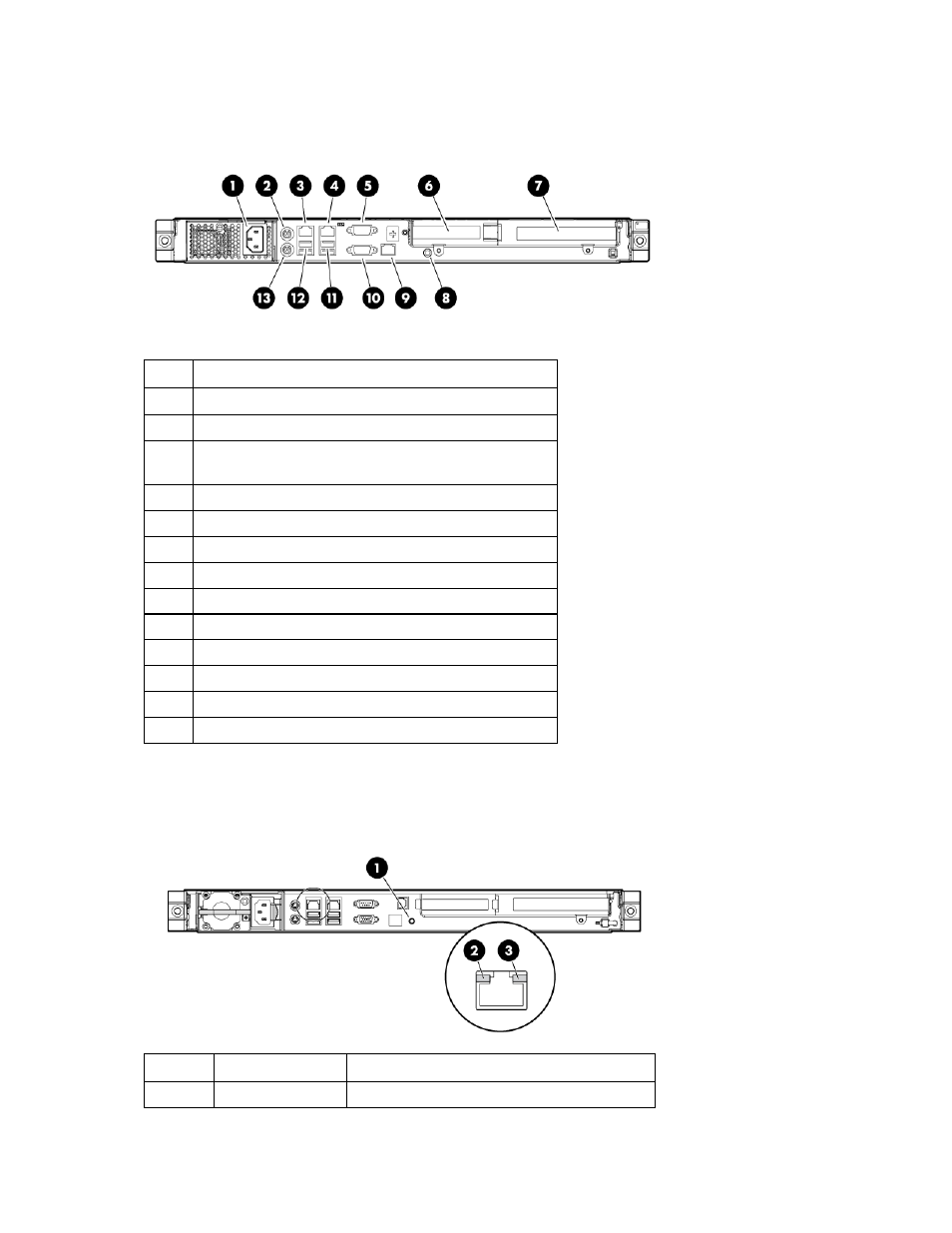

Rear panel components

Item Description

1

Power cord connector

2 Mouse

connector

3

10/100/1000 NIC 1 connector/shared Lights-Out 100

management port

4

10/100/1000 NIC 2 connector

5 Serial

connector

6

Slot 1 PCIe2 x16 (4, 2, 1)

7

Slot 2 PCIe2 x16 (16, 8, 4, 1)

8 UID

button/LED

9

Dedicated Lights-Out 100 management port

10 Video

connector

11

USB connectors (2)

12

USB connectors (2)

13 Keyboard

connector

Rear panel LEDs and buttons

Item Description Status

1

UID button/LED

Blue = Identification

Component identification 8
