Page 71

3-17
Operating the Library
Loading Tape Cartridges Into the Library
L
ibrary
O
perat
io
n
6. Open the access door by pulling the top of the door outward.
NOTE
Do not let the door fall open. The door straps may be damaged.

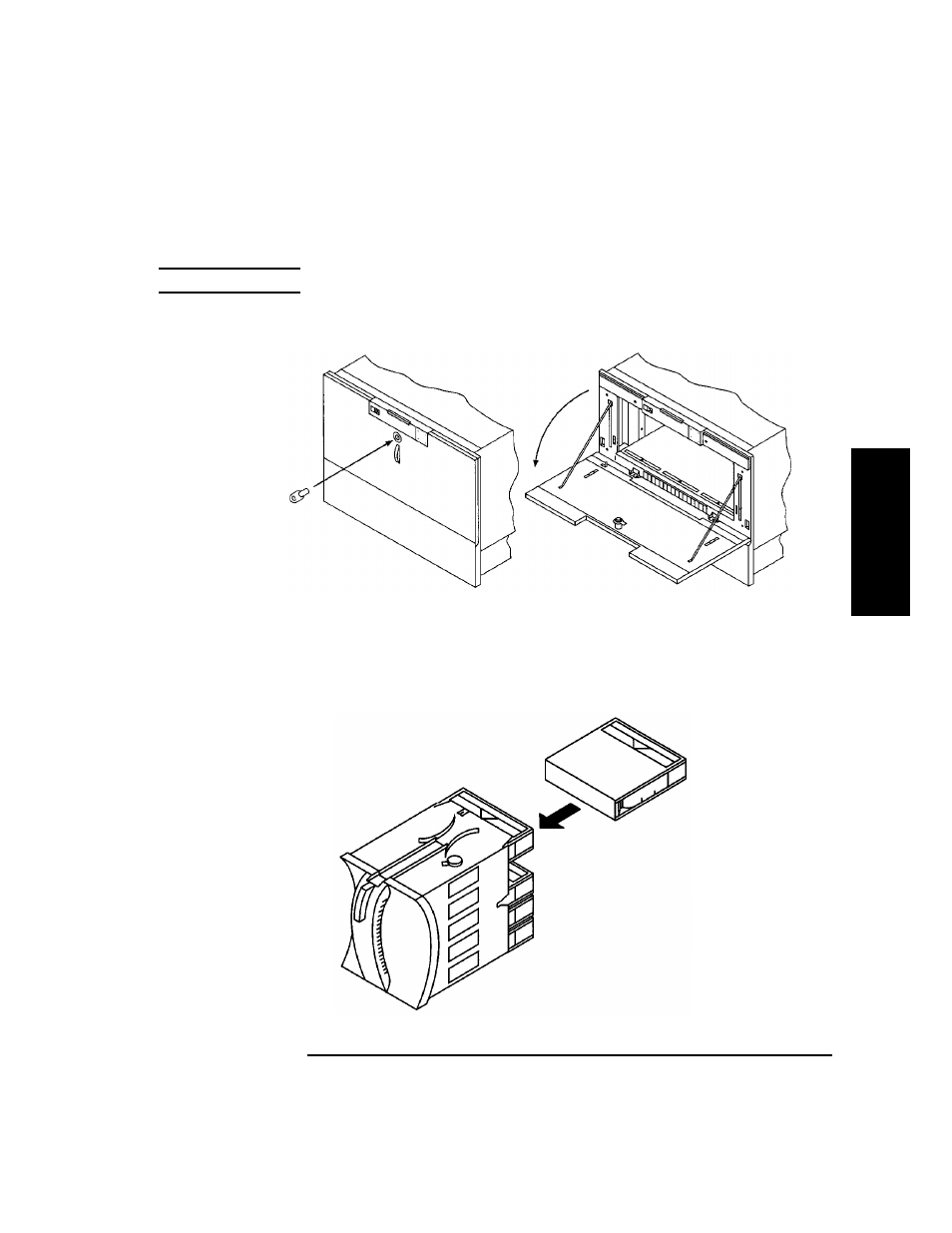

Figure 3-3
Opening the Front Access Door
7. Insert up to five tape cartridges into a magazine so that the tape brand name
printed on the top of the cartridge is facing up and the tape label is facing out.
The tapes should “click” into place.
Figure 3-4
Loading Tape Cartridges into the Magazine
