Installing the Tape Library

Step 4: Mount the Library in a Rack (optional)

In

st

a

lla

tio

n

4. Attach the rear bracket:

a. Adjust the rear mounting brackets to fit lengthwise in the rack.

b. Attach the rear slide mounting bracket to the rear clip nuts using two 10-32 x

5/8 pan slotted phlp screws.

c. Push the slides as far as possible toward the outside of the rack.

d. Tighten the screws.

e. Tighten all bracket screws.

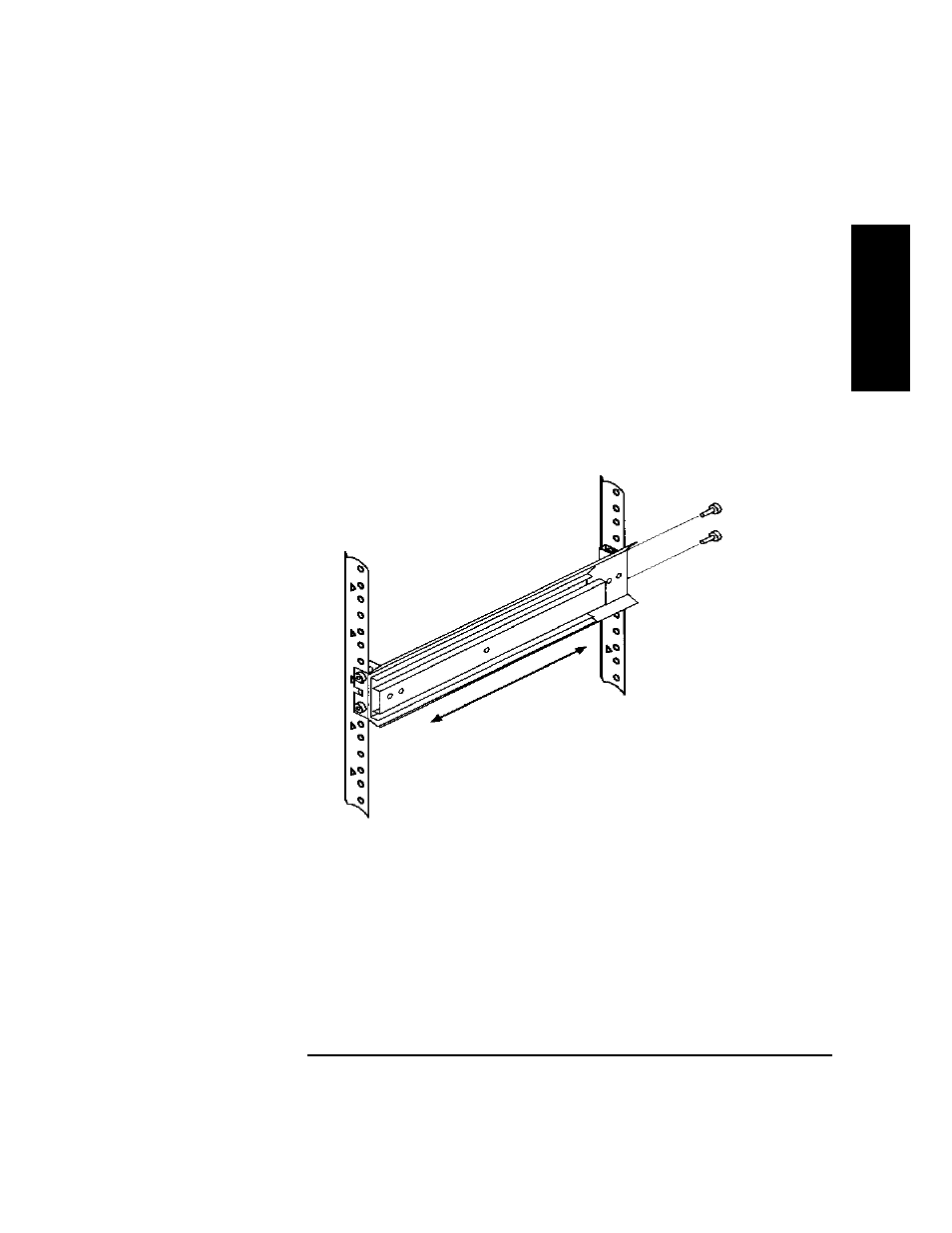

Figure 1-9

Rear Bracket on Rack

5. Extend the slides fully, make sure they are parallel, and then recompress them.
