Figure 1-4. front mounting bracket -11, Figure 1-5. rear mounting bracket -11 – HP SureStore 4215w User Manual
Page 25

1-11
Installing the Tape Library
Step 4: Mount the Library in a Rack (optional)
In
st
a
lla
tio
n
3. Attach the front mounting brackets to the front end of each slide using two 8-32
x 3/8 pan-slotted phillips screws and two 8-32 keps nuts. Tighten the screws.

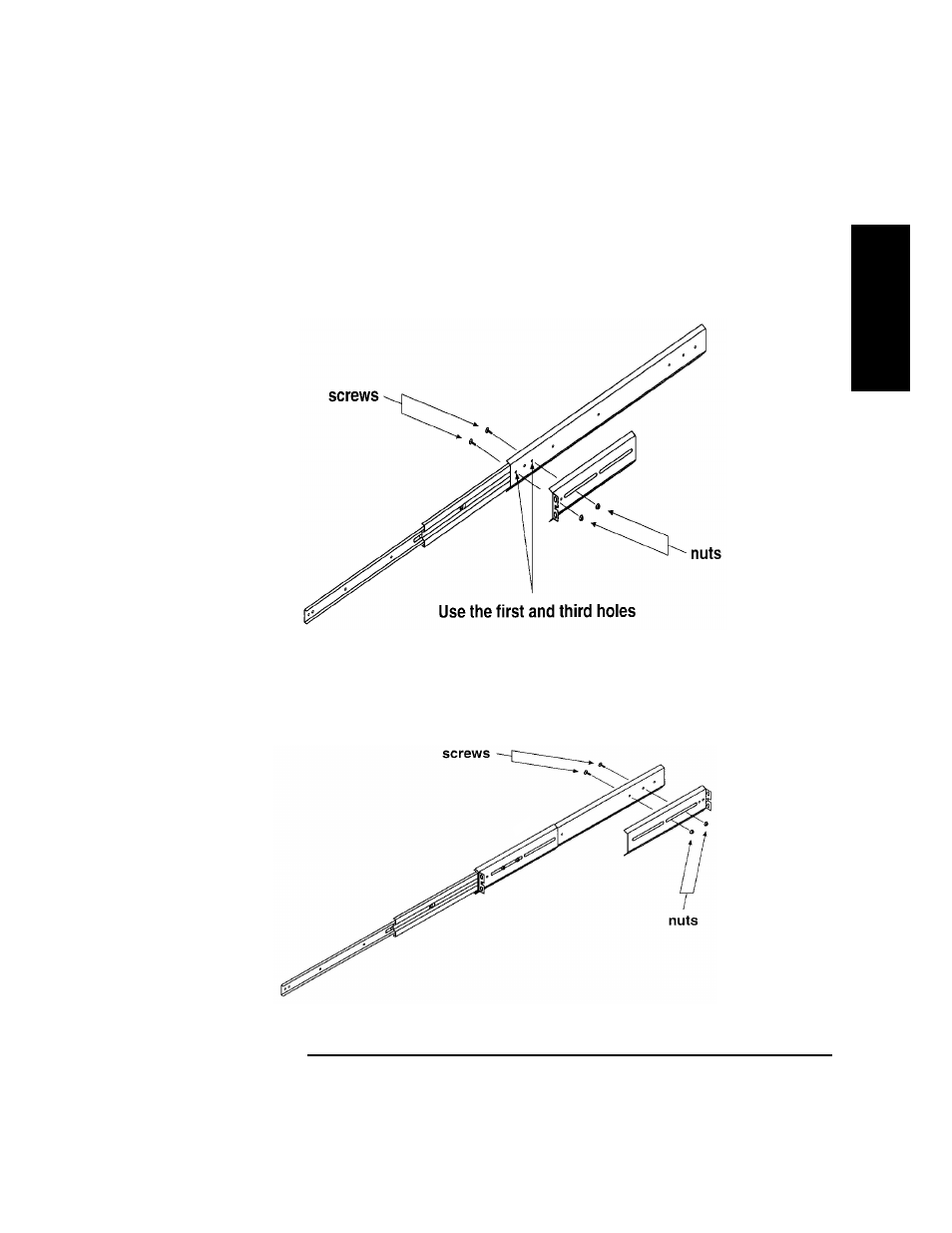

Figure 1-4
Front Mounting Bracket
4. Attach the rear mounting brackets to the back side of each slide using two 8-32 x
3/8 pan-slotted phillips screws and two 8-32 keps nuts. Do not tighten the
screws.
Figure 1-5
Rear Mounting Bracket
