1-16

Installing the Tape Library

Step 4: Mount the Library in a Rack (optional)

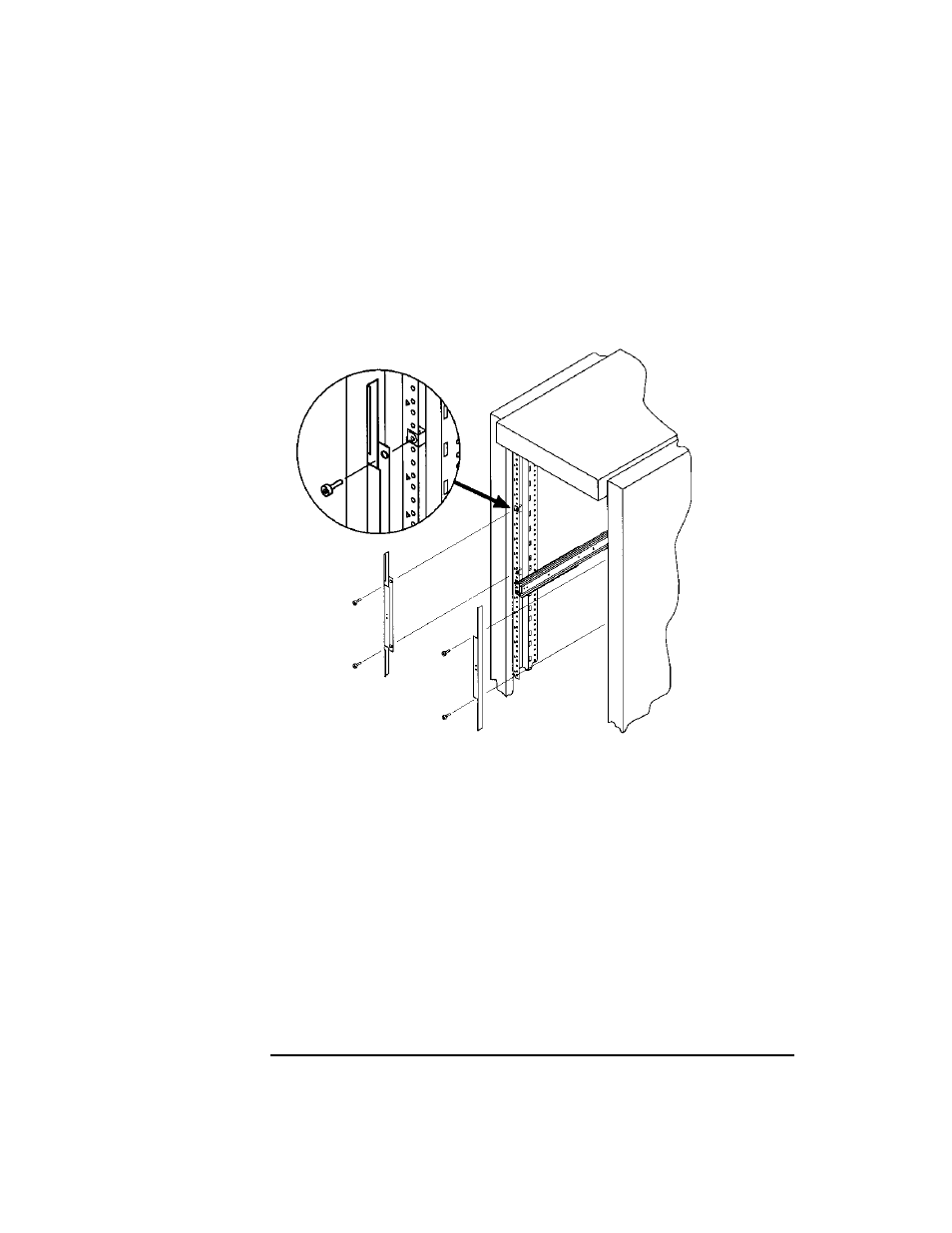

6. Connect the two bezel spacers to the front rails using two 10-32 x 5/8 pan slotted

phlp screws. The screws attach to the two clip nuts on the front rails above the
slides.

Figure 1-10

Bezel Spacers
