Installing the Tape Library

Step 4: Mount the Library in a Rack (optional)

In

st

a

lla

tio

n

Tools and Components

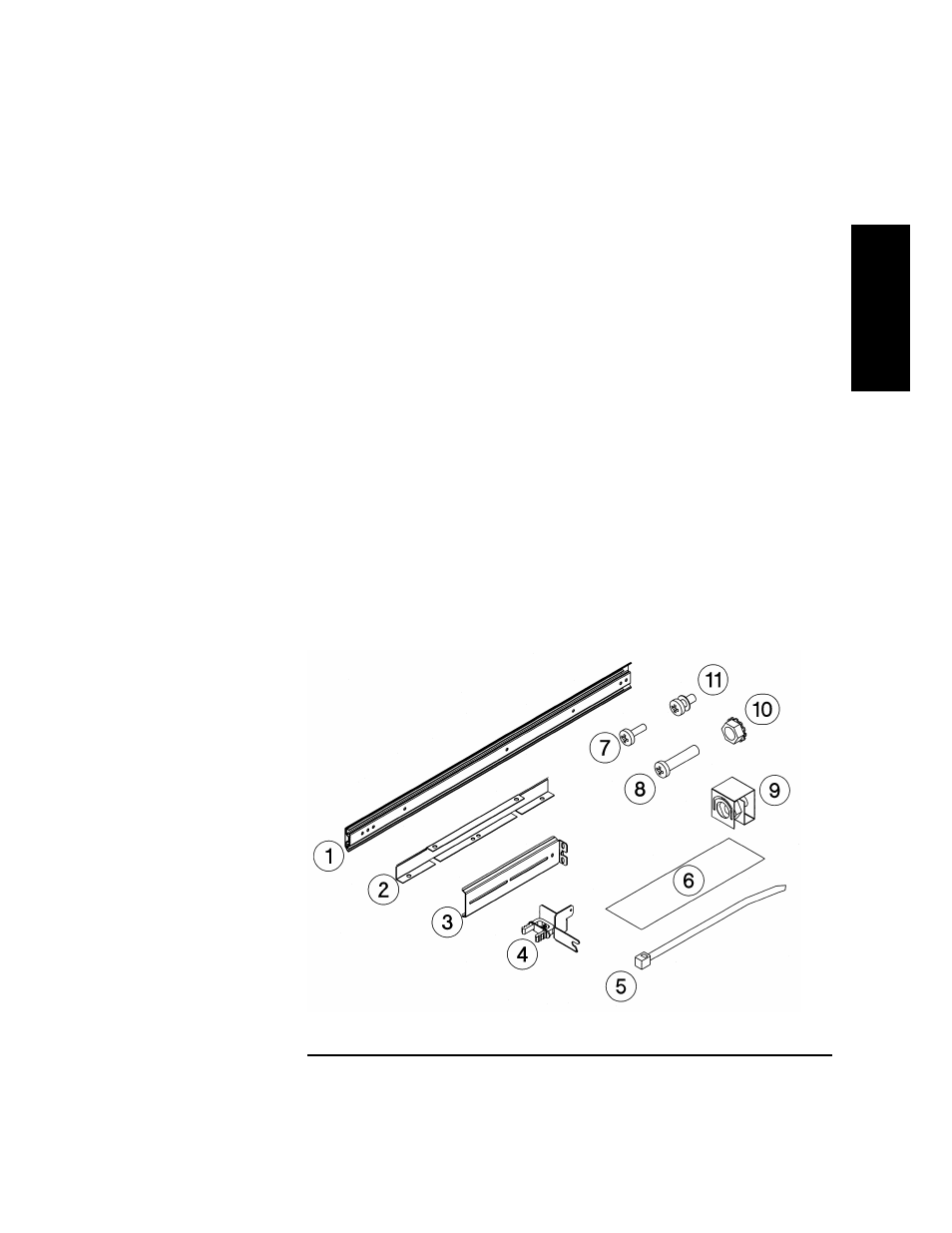

Figure 1-2

Rackmounting Components

Tools:

Phillips screwdriver (included in kit)

1/2 inch open-ended wrench

Kit Hardware (parts are labeled for easy identification):

1. rack slides (1 pair)

2. bezel spacers (2)

3. mounting brackets (4)

4. strain relief bracket (1)

5. cable ties (4)

6. template

7. 8-32 x 3/8 pan slotted phillips lw profile

hd (14)

8. 10-32 x 5/8 pan slotted phillips (14)

9. 10-32 clip nuts (12)

10. 8-32 keps nuts (8)

11. 6-32 x 3/8 pan phillips, with internal

lockwasher (1)
