Installing the Tape Library

Step 4: Mount the Library in a Rack (optional)

3. Attach the front bracket:

a. Return the slides to their compressed position.

b. Attach the front slide mounting bracket to the lower two clip nuts on the

front rails using two 10-32 x 5/8 pan slotted phlp screws.

c. Push the slides as far as possible toward the outside of the rack.

d. Tighten the screws.

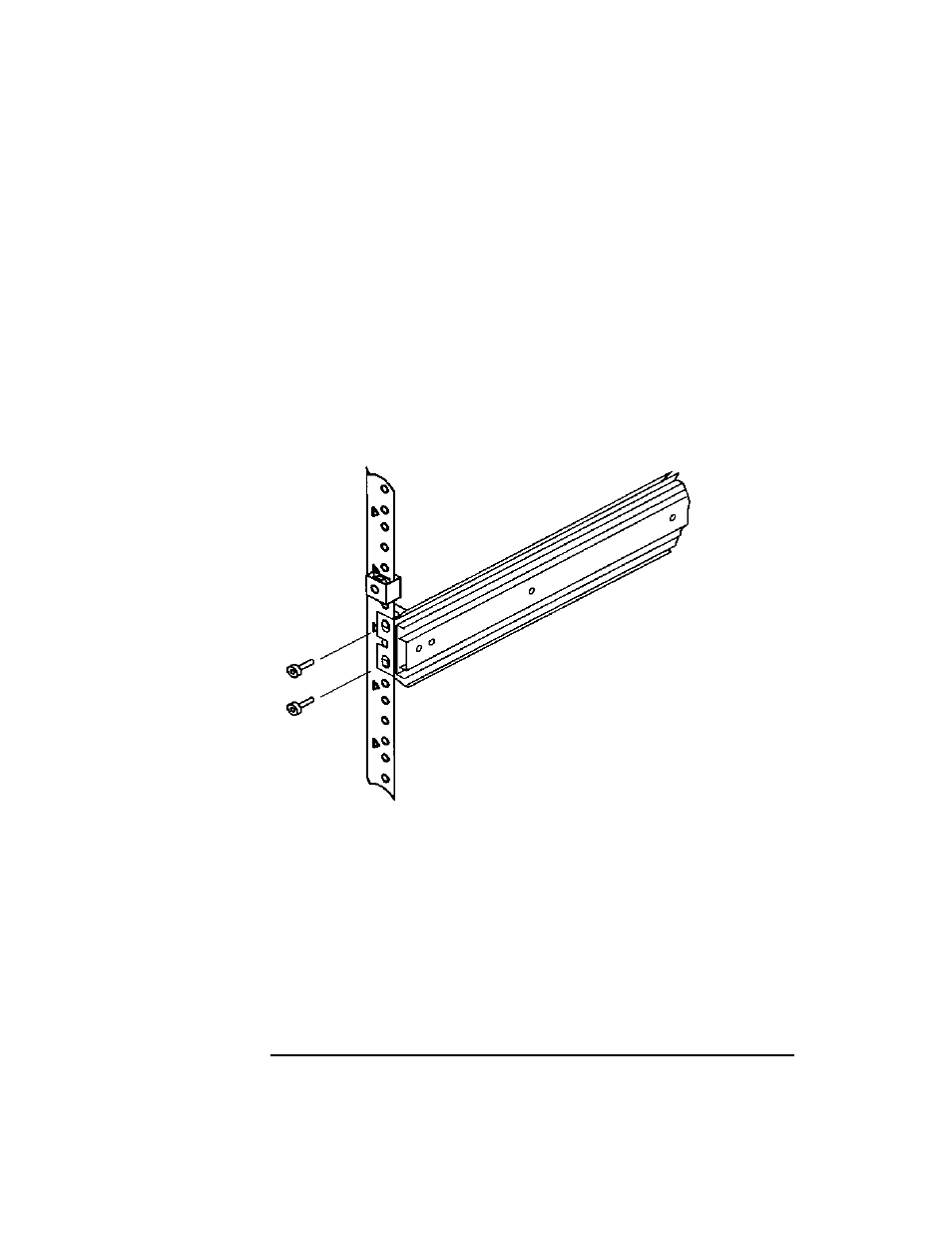

Figure 1-8

Front Bracket on Rack
