Installing the Tape Library

Step 5: Set the SCSI Interface Mode Switch

In

st

a

lla

tio

n

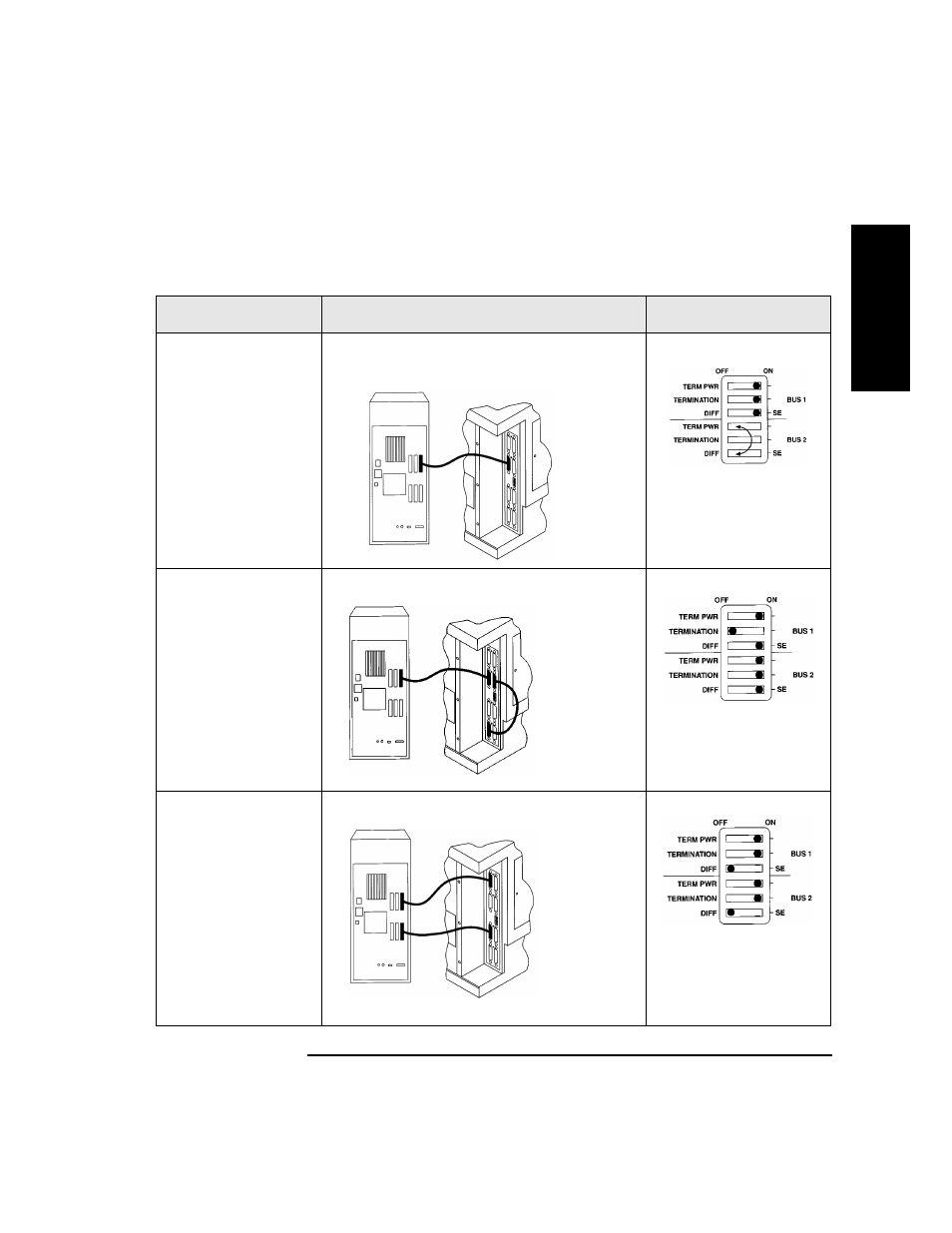

The following table shows connection options when there are no other peripherals.

Table 1-5

Tape Library as the Only Peripheral

Configuration

Cabling

Mode Switch Settings

One-Drive Tape
Library

Two-Drive Library:
Daisy chained

Minimum host I/O
slots used

Two-Drive Library

Bus 1 and bus 2
connect to separate
SCSI cards
Maximum
performance

Additional card and
cable required

Single-ended SCSI

connection

Single-ended

SCSI connection

shown

Differential SCSI

connection shown
