Chapter 7

Replacing Parts

Mass Storage Devices

Removing the Flexible Disk Drive

1. If the server is operating, power down the server, and if necessary, back up mass storage devices.

Refer to

for instructions.

2. Disconnect the power cord and any external cables connected to the server.

If necessary, label each one to expedite re-assembly.

3. Remove the left side cover.

4. Remove the upper bezel.

5. At the rear of the flexible disk drive (FDD), carefully disconnect the power and data cables.

6. Remove the flexible disk drive:

a. Press in on both release tabs to release the FDD assembly.

b. Pull the FDD assembly out of the chassis.

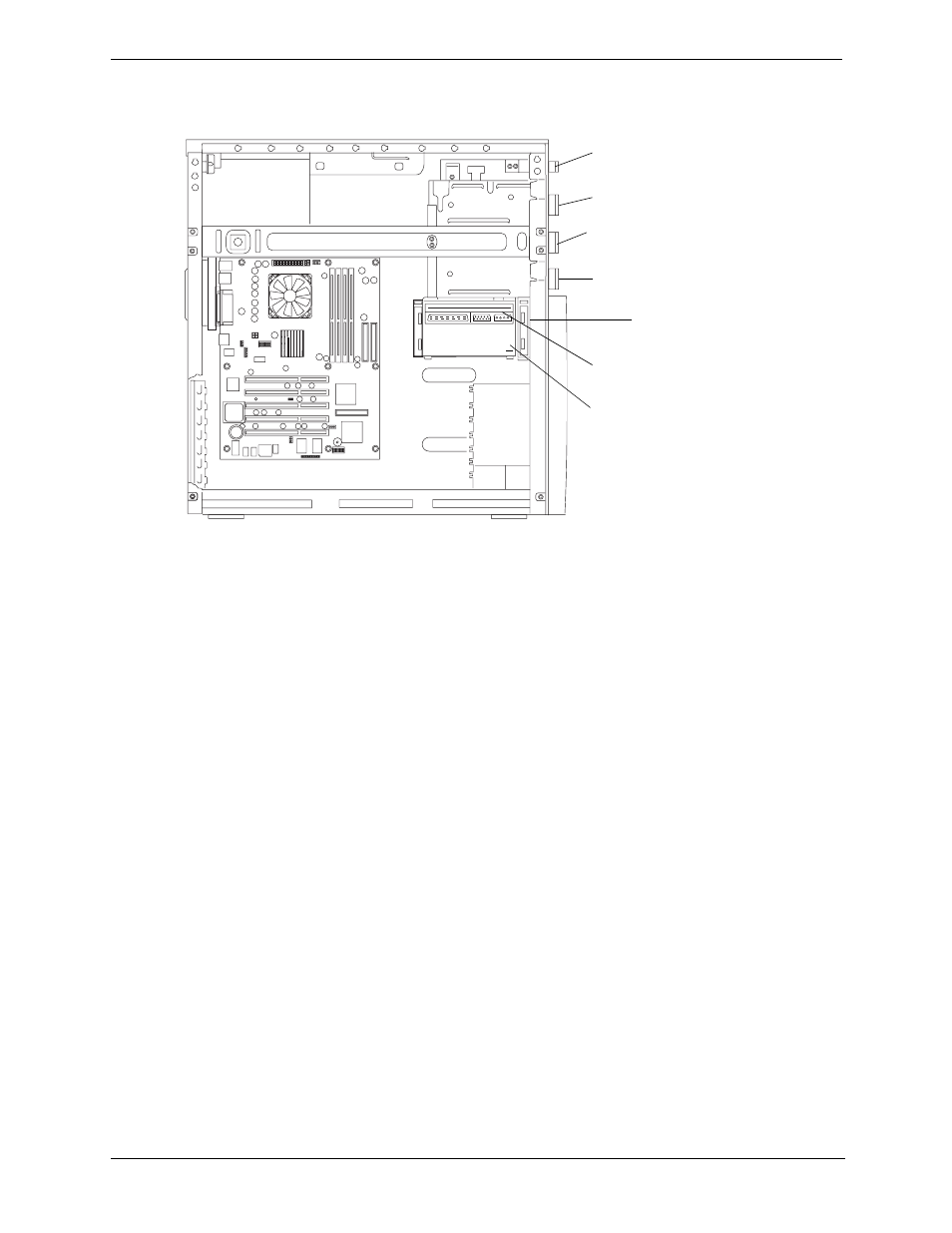

Figure 7-1. Mass Storage Device Locations

Shelf1 (FDD)

Shelf 2 (CD-ROM)

Shelf 3 (Optional CD-ROM, DVD

Drive, or Backup Tape Drive)

Shelf 4 (3rd Hard Drive—Optional)

Drive Retaining Clips

Shelf 5 (1st Hard Drive—Standard)

Shelf 6 (2nd Hard Drive—Optional)
