Figure 3-20, Figure 3-21 – HP TC2120 User Manual
Page 45
39
Chapter 3
Installing and Configuring
8. Move the top of the desired slot cover away from the chassis and then lift it up and out of the chassis. See

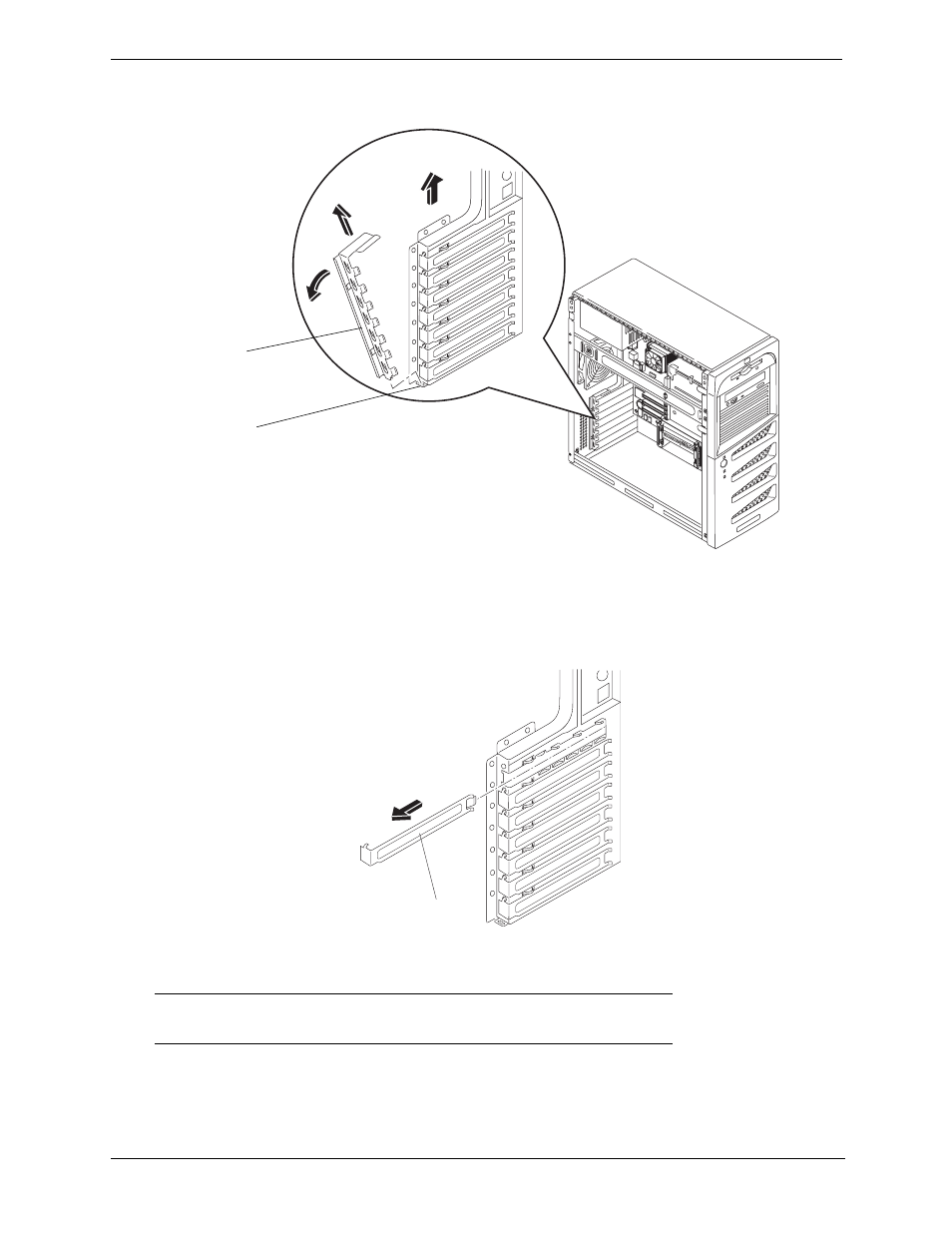

Figure 3-20. Removing the Slot Cover Latch
Figure 3-21. Removing the Slot Cover
NOTE
Ensure that you save the slot covers for use later to prevent
EMI interference.
Slot Cover
Latch
Latch
Retainer
1
2
3
Slot Cover
