Page 82
72
Making Measurements

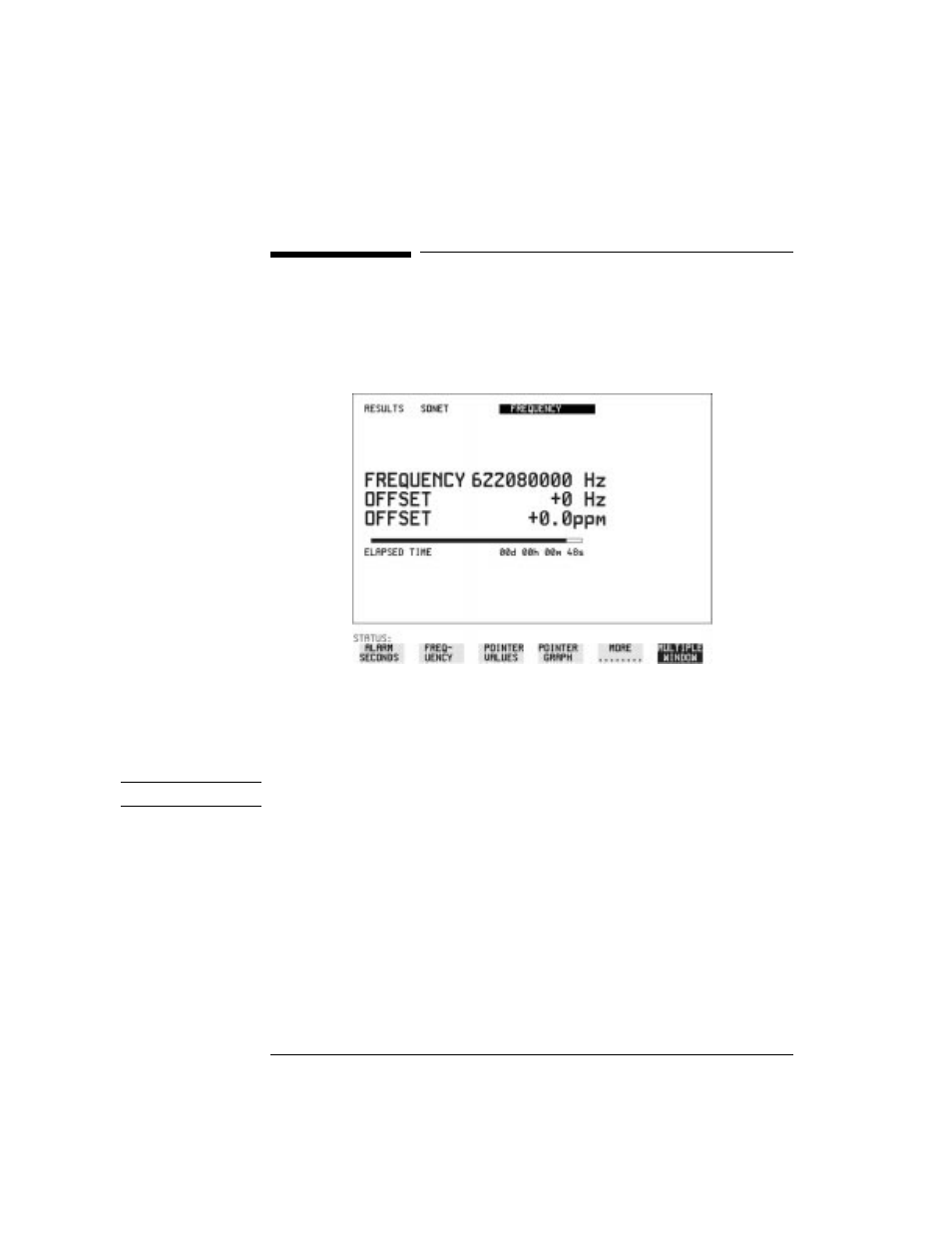

Measuring Frequency
Measuring Frequency
Description
The signal frequency and the amount of offset from the standard rate can
be measured to give an indication of probability of errors.
HOW TO:
1
Connect the signal to be measured to the IN port of the DSN Receive
module or the IN port of the Multirate Analyzer module (SONET
electrical) or the IN port of the Optical Interface module (SONET
optical).
N OT E
Frequency measurement is always available even if test timing is off.
