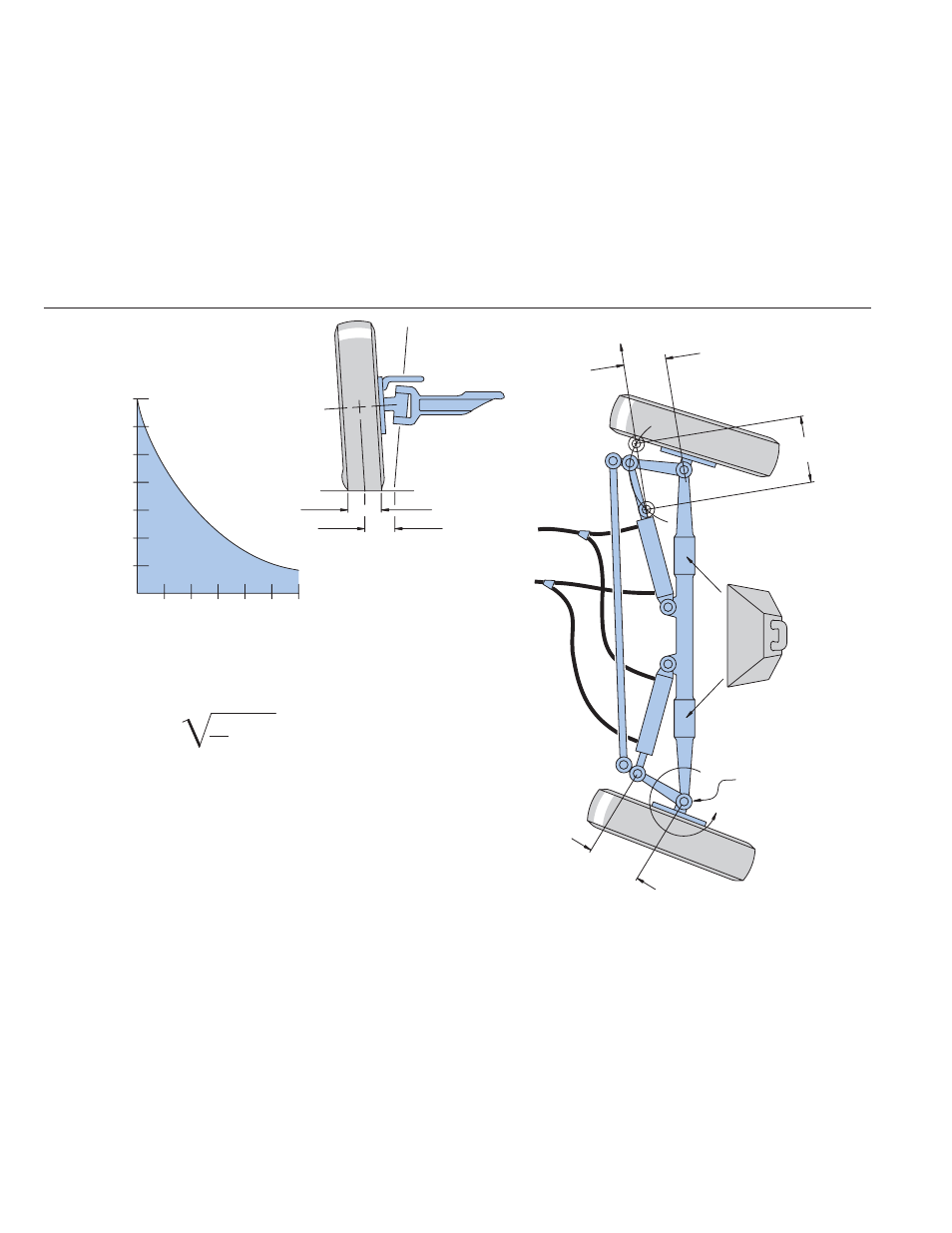

Sizing and
Application—
Ackermann Type
Steering
E
B
F
r
S
W
V
A
T
A
W
eight
Minimum
Effective
Radius Arm
Actual
Length
Radius Arm
Kingpin
0.7
0.6
0.5
0.4
f
0.3
0.2
0.1
0.2 0.4 0.6
E/B
Typical values based
on rubber tired vehicles on
dry concrete.
0.8 1.0 1.2
T = w • f
T = Total Kingpin Torque required to steer axle.
W = Vehicle Weight supported by the steered axle.
f = Coefficient of friction (dimensionless). Based on 0.7 as a
Maximum. Determine from chart at left.
B = Nominal width of the tire print (see diagram above).
E = Kingpin Eccentric (use nominal tire width).
B 2
8
+ E 2
Step One:
Kingpin Torque
