86 EATON Char-Lynn Steering Catalog C-STOV-MC001-E1 July 2006
Steering System
Components
Four Wheel Steer
Switching Valves
Description
Four Wheel Steer Switching
Valves provide three different
types of steering by
energizing and de-energizing
two DG4V-3 valves. DG4V-3
valves are high performance,
solenoid operated directional
control valves.
• Two Wheel Steering:
Energize Solenoid S1
• Four Wheel Steering:
Energize Solenoid S2 + S3
• Crab Steering: Energize
Solenoid S2 + S4
(For more information on
these two valves, see
Vickers® Solenoid Operated
Directional Valves Cat.
GB-C-2015.)
Applications
• Telehandlers
• Sprayers
• Rough terrain Cranes
• Backhoe Loaders
Ordering Information
1. Reference Assembly
Number: 02-411452
Coil Rating
12V DC
Ports A, B, P, T
3/4-16 UNF
2. Choose Coil Rating:
12V DC
24V DC
3. Specify Ports if different
than above PN.
DG4V-3 Solenoid Operated Directional Valves
SPECIFICATIONS
Rated Flow 80 l/min [21 GPM]
Max. System Pressure 210 bar [3000 PSI]
Internal Leakage when A or B
pressurized in two-wheel drive
40 ml/min
(@200bar, 50ºC) [2.44 in
3
/min]
Pressure drop (@45 l/min [12 GPM])
Two Wheel Steering 5 bar [72.5 PSI]
Four Wheel Steering 20 bar [290 PSI]
Crab Steering 20 bar [290 PSI]
Electrical Connection Type AMP

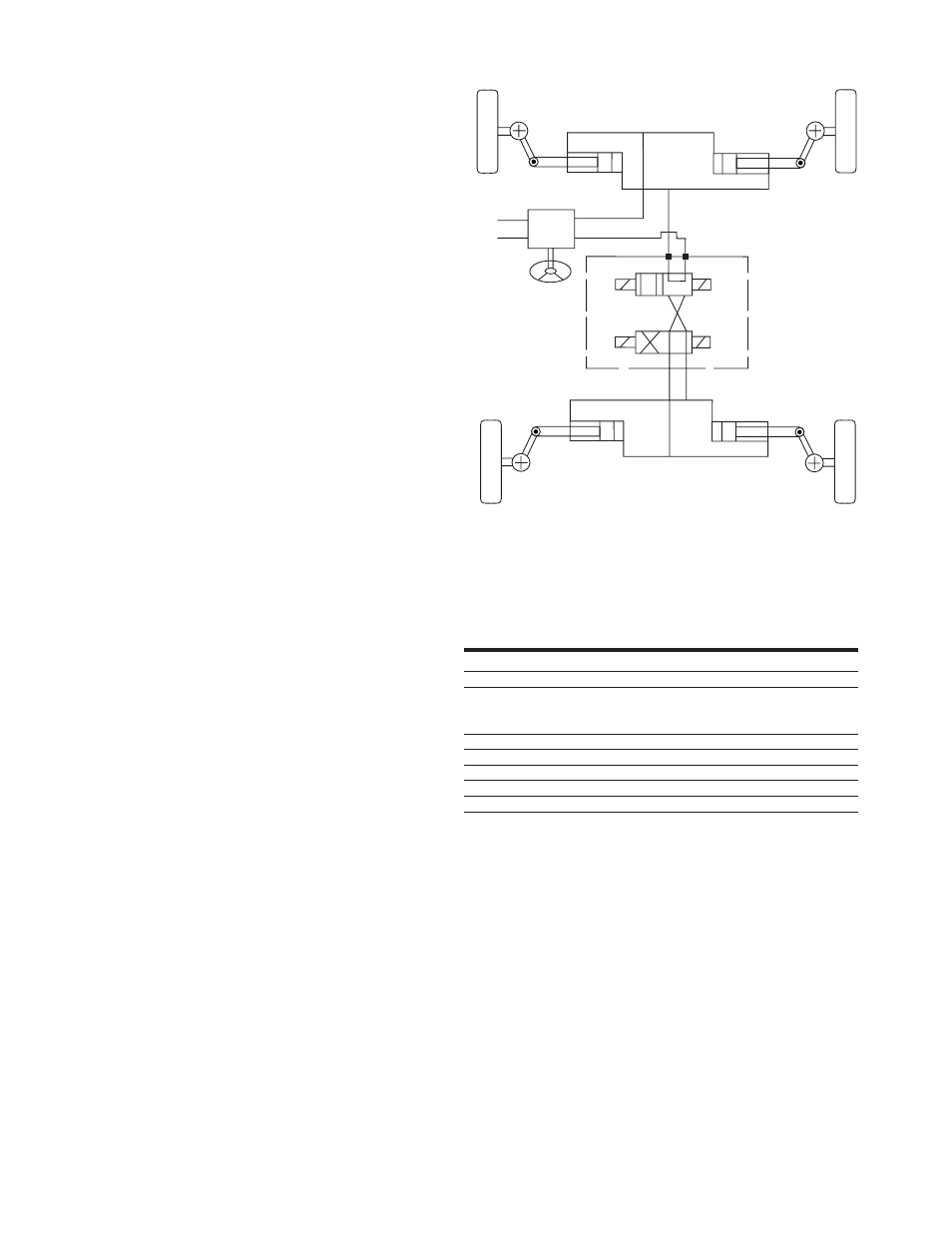

FRONT
BACK
S 2
S 3
B
P
P
T
T
L
R
A
S 4
S 1
