EATON Char-Lynn Steering Catalog C-STOV-MC001-E1 July 2006 65
Steering System
Components

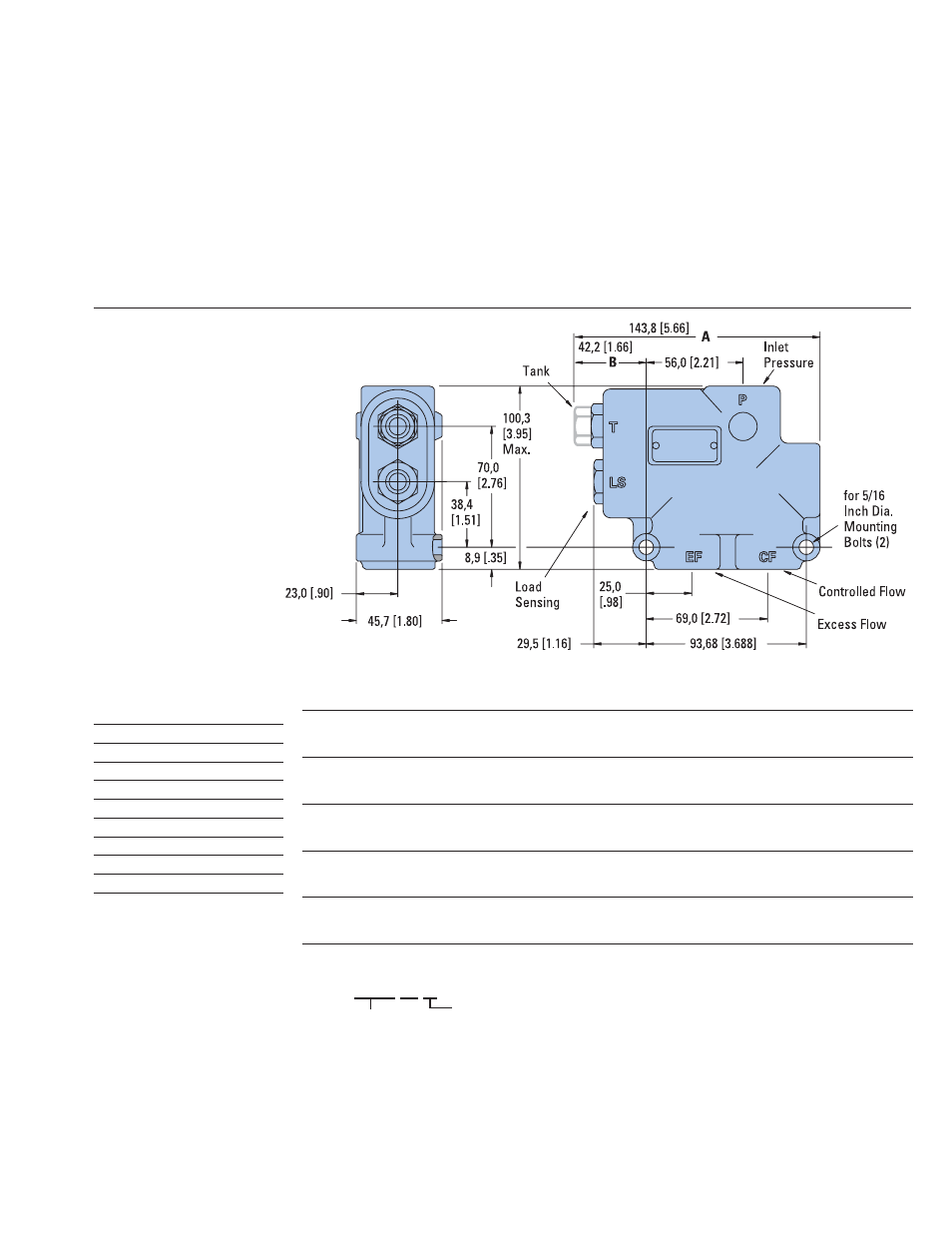

VLC In-Line Priority
Valves
Control Pressure - bar [PSI] / Product Number
Static Dynamic Static Dynamic Static Dynamic
Ports (5) Port Size Signal Signal Signal Signal Signal Signal
3,5 [50] 5,2 [75] 5,2 [75] 7,6 [110] 6,9 [100] 10,0 [145]
P & EF 7/8 - 14
CF 3/4 - 16 606-1217 606-1232 606-1218 606-1314 606-1219 606-1315
LS & T 7/16 - 20
P & EF 3/4 -16
CF 9/16 - 18 606-1214 606-1327 606-1215 606-1278 606-1216 606-1328
LS & T 7/16 - 20
P & EF M22 X 1,5
CF M18 X 1,5 606-1329 606-1330 606-1331 606-1333 606-1334
LS & T M12 X 1,5
P & EF R 1/2 - 14
CF R 1/2 - 14 606-1335 606-1336 606-1337 606-1338 606-1339 606-1340
LS & T R 1/4 - 19
Code System Pressure
Number bar [PSI]
DD 83 [1200]
HE 120 [1725]
LA 138 [2000]
MC 150 [2175]
NC 160 [2300]
QA 172 [2500]
UA 207 [3000]
VD 230 [3325]
VK 240 [3475]
The above product number describes a VLC Series
with 5,2 bar [75 PSI] control pressure, static signal,
7/8-14 P and EF ports, 3/4-16 CF port, 7/16-20
LS and T ports, 172 bar [2500 PSI] relief valve setting.
Example: 606-1218-003-QA
Product Number
System Pressure
Code Number
For comprehensive
information on all steering
system components
“Valves” see Eaton catalog
11-508.
60 l/min [16 GPM] Rate Flow
Relief Valve Qualified for
276 bar [4000 psi] max.
Rated CF Pressure is
276 bar [4000 psi]
Rated Inlet and EF Pressure
is 276 bar [4000 psi]
