EATON Char-Lynn Steering Catalog C-STOV-MC001-E1 July 2006 47
Steering Control
Units—Series 25

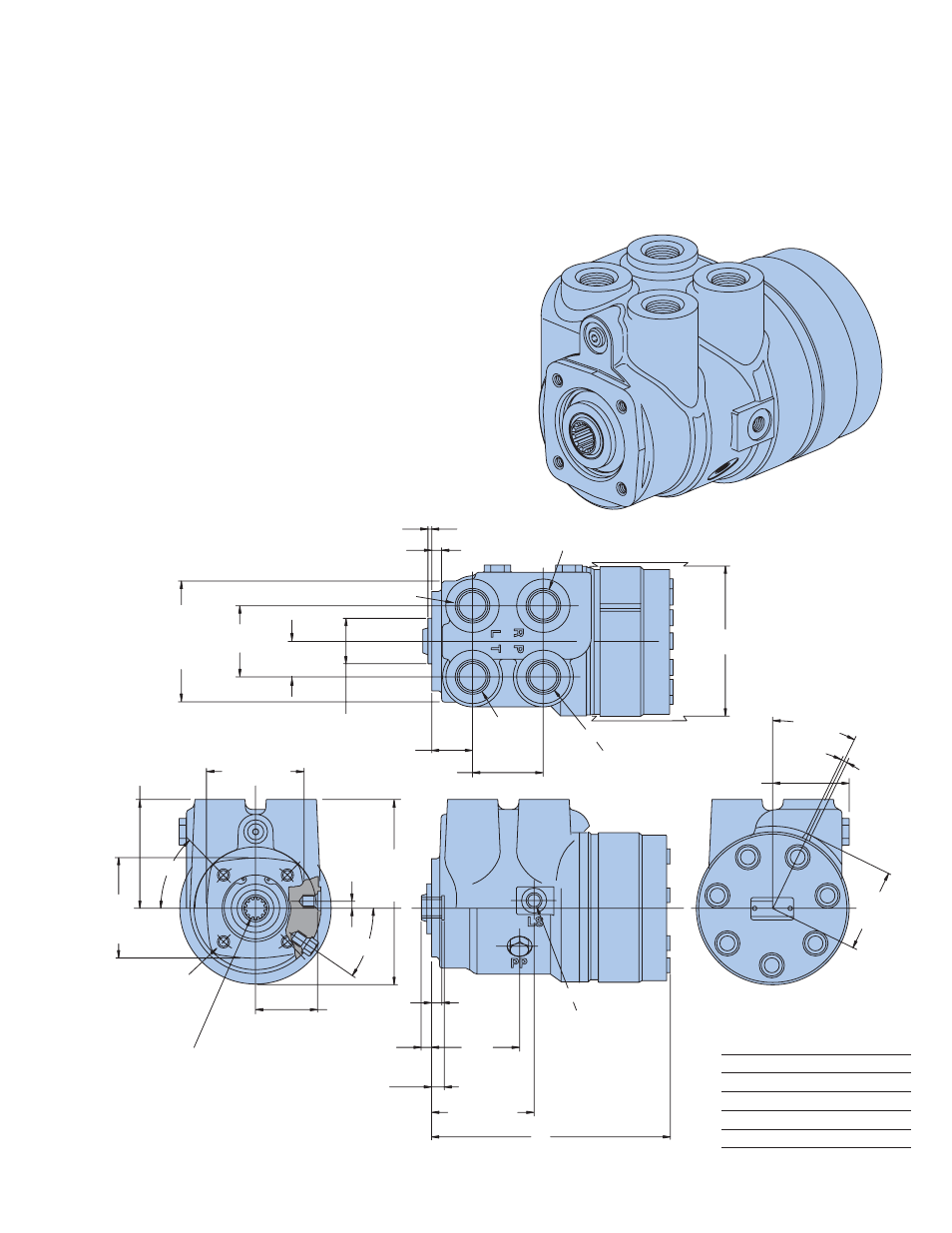

Installation Drawing
with Cylinder Relief,
Anti-Cavitation
Right
Pressure
Left
Tank
Load Sensing *
44
°
/46
°
96,3 [3.79]
Max. (4)
89,7
[3.53]
Max.
6,3
[.25]
*
34
°
/36
°
*
165,9
[6.53]
Max.
59,2
[2.33]
Max.
*
89,7 [3.53]
12 Tooth Involute Spline
16/32 D.P. 30
°
P.A.
15,2 [.60] Min. Deep
3/8 -16 UNC x
15,2 [.60] Deep
on 82,5 [3.25]
Dia. Bolt Circle
86,1
[3.39]
*
95,5 [3.76] *
D
7/16-20 UNF *
O-ring Port (2)
Plug in PP Port
37,4 [1.47]
63,5 [2.50]
1 1/16 UN O-ring Port (4)
140,0 [5.51] Max.
3,63/1.42 [.143/.096]
8,8 [.35] Min.
63,5 [2.5]
31,8 [1.25]
44,45/44,43 [1.750/1.746] Dia.
73,7
[2.90]
Max.
25
°
/27
°
5,4 [.21]
108,8
[4.28]
Dia.
Max.
9,3 [.37] Min. Depth
(7,1 [.28] Max.
Mating Spline Depth)
.7,4/5,8
[.29/.19]
Spline
8,9 [.35] Max.
* Load Sensing Unit Only
70,4 [2.77] Max (4)
Displacement D Max.
cm 3 /r [in 3 /r] mm [in.]
490 [30] 205,5 [ 8.08]
625 [38] 211,4 [ 8.32]
795 [48] 219,0 [ 8.62]
985 [60] 228,4 [ 8.99]
1230 [75] 239,8 [ 9.44]
