66 EATON Char-Lynn Steering Catalog C-STOV-MC001-E1 July 2006
Steering System
Components

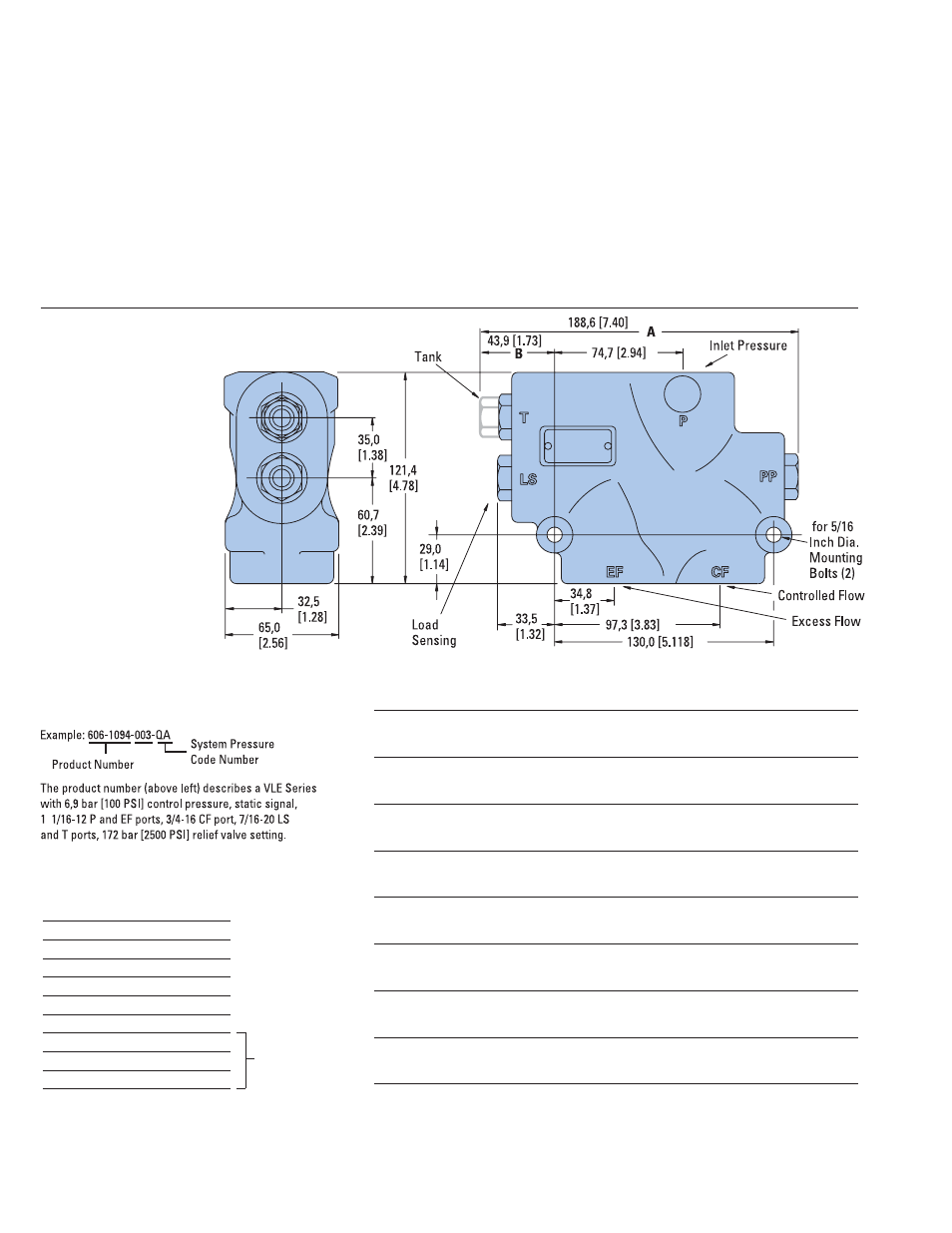

VLE In-Line Priority
Valves
For comprehensive
information on all steering
system components
“Valves” see Eaton catalog
E-VLFL-MLOO1-E
Control Pressure - bar [PSI] / Product Number
Static Dynamic Static Dynamic Static Dynamic
Ports (5) Port Size Signal Signal Signal Signal Signal Signal
4,5 [65] 5,5 [80] 6,9 [100] 8,6 [125] 10,3 [150] 12,8 [185]
P & EF 1 1/16 -12
CF 3/4 - 16 606-1093 606-1294 606-1094 606-1295 606-1095 606-1296
LS & T 7/16 - 20
P & EF 1 1/16 -12
CF 7/8 - 14 606-1046 606-1341 606-1047 606-1342 606-1048 606-1343
LS & T 7/16 - 20
P & EF 1 5/16 -12
CF 7/8 - 14 606-1058 606-1344 606-1059 606-1345 606-1060 606-1346
LS & T 7/16 - 20
P & EF 1 5/16 - 12
CF 1 5/16 - 12 606-1141 606-1347 606-1142 606-1348 606-1143 606-1349
LS & T 7/16 - 20
P & EF 1 5/16 -12
CF 1 1/16 - 12 606-1350 606-1282 606-1351 606-1281 606-1352 606-1283
LS & T 7/16 - 20
P & EF M27 X 2
CF M18 X 1,5 606-1353 606-1354 606-1355 606-1356 606-1357 606-1358
LS & T M12 X 1,5
P & EF R 3/4 - 14
CF R 1/2 - 14 606-1359 606-1360 606-1361 606-1362 606-1363 606-1364
LS & T R 1/4 - 19
Code System Pressure
Number bar [PSI]
DD 83 [1200]
HE 120 [1725]
LA 138 [2000]
MC 150 [2175]
NC 160 [2300]
QA 172 [2500]
UA 207 [3000]
VD 230 [3325]
VK 240 [3475]
High
Pressure*
150 l/min [40 GPM]
Rated Flow
Relief Valve Qualified
for 276 bar [4000 PSI]
Max.
Rated CF Pressure is
276 bar [4000 psi]
Rated Inlet and EF
pressure is 303 bar
[4400 psi]
