Steering System
Components
Flow Divider
Valves
PRIOR
IN
OUT
Excess
Flow Controlled
Flow
P
In
A B
Return
Inlet Controlled
Flow

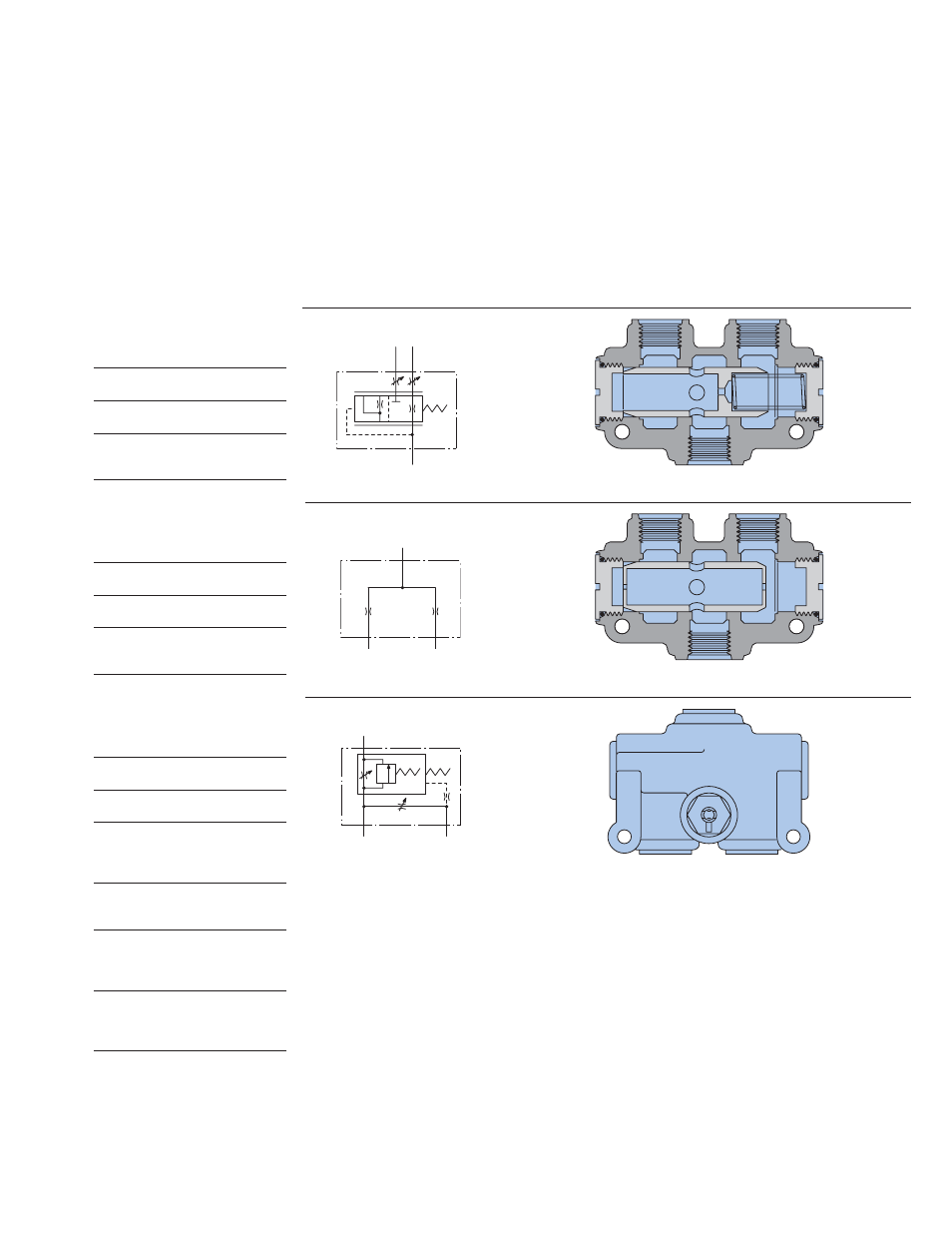

Model 32306 Priority
Flow Divider
Specifications
Rated Input Flow 96,6 l/min
[25 GPM]
Rated Pressure 172,4 bar
[2500 PSI]
Max. Pressure Drop
Through Valve at
Rated Input Flow 4,5 bar [65 PSI]
Model 32501 Proportional
Flow Divider
Specifications
Rated Input Flow 113,6 l/min
[30 GPM]
Rated Pressure 172,4 bar
[2500 PSI]
Max. Pressure Drop
Through Valve at
Rated Input Flow 8,6 bar [125 PSI]
Model 32700 Variable Priority
Flow Control
Specifications
Rated Input Flow 75,7 l/min
[20 GPM]
Rated Pressure 172,4 bar
[2500 PSI]
Max. Pressure Drop
Through Valve at
56,8 l/min [15 GPM]
Input
4,0 bar [48 PSI]
Max. Controlled
Flow 36,0 l/min
[9.5 GPM]
Controlled Flow
Adjustment
Range
5,7 - 36,0 l/min
[1.5 - 9.5 GPM]
Relief Valve Factory
Setting 151,7 bar
[2200 PSI] at 36,0
l/min [9.5 GPM]
Comprehensive Flow Divider
Description
(see Eaton Flow Divider
Catalog E-VLFL-MC001-E)
