64 EATON Char-Lynn Steering Catalog C-STOV-MC001-E1 July 2006
Steering System
Components
Antijerk Valves
Description
Antijerk Valves provide
smoother steering on
articulated vehicles, such as
Wheel Loaders. This is
achieved by a pressure
sequence valve mounted on
a block. Patent pending.
(For more information see
Vickers
® Screw-in Cartridge
Valves Cat. V-VLOV-MC001-E2.)
Features
Dramatically reduces jerk
when steering is stopped
quickly and while making
aggressive changes in
direction. The valve works by
monitoring the margin
pressure acting on the
steering valve. Margin
spikes when steering wheel
speed is reduced
aggressively. When this
occurs a small amount of
damping flow is allowed
across the turn ports. Unlike
accumulators this valve will
not have a negative affect on
roading performance, and it
is more cost effective than
cushion valves.
Applications
CF1 is supply from the
pump or priority valve, CF2
should connect to the
steering valve UPSTREAM
of any check valves, LS1 &
LS2 are the steering valve
load-sense connection, R&L
are pass through ports for
the turn lines. The setting of
the valve needs to be higher
than the normal difference in
pressures between CF and
LS, i.e. if CF-LS is 150PSI
then a good setting to start
with is 200PSI.

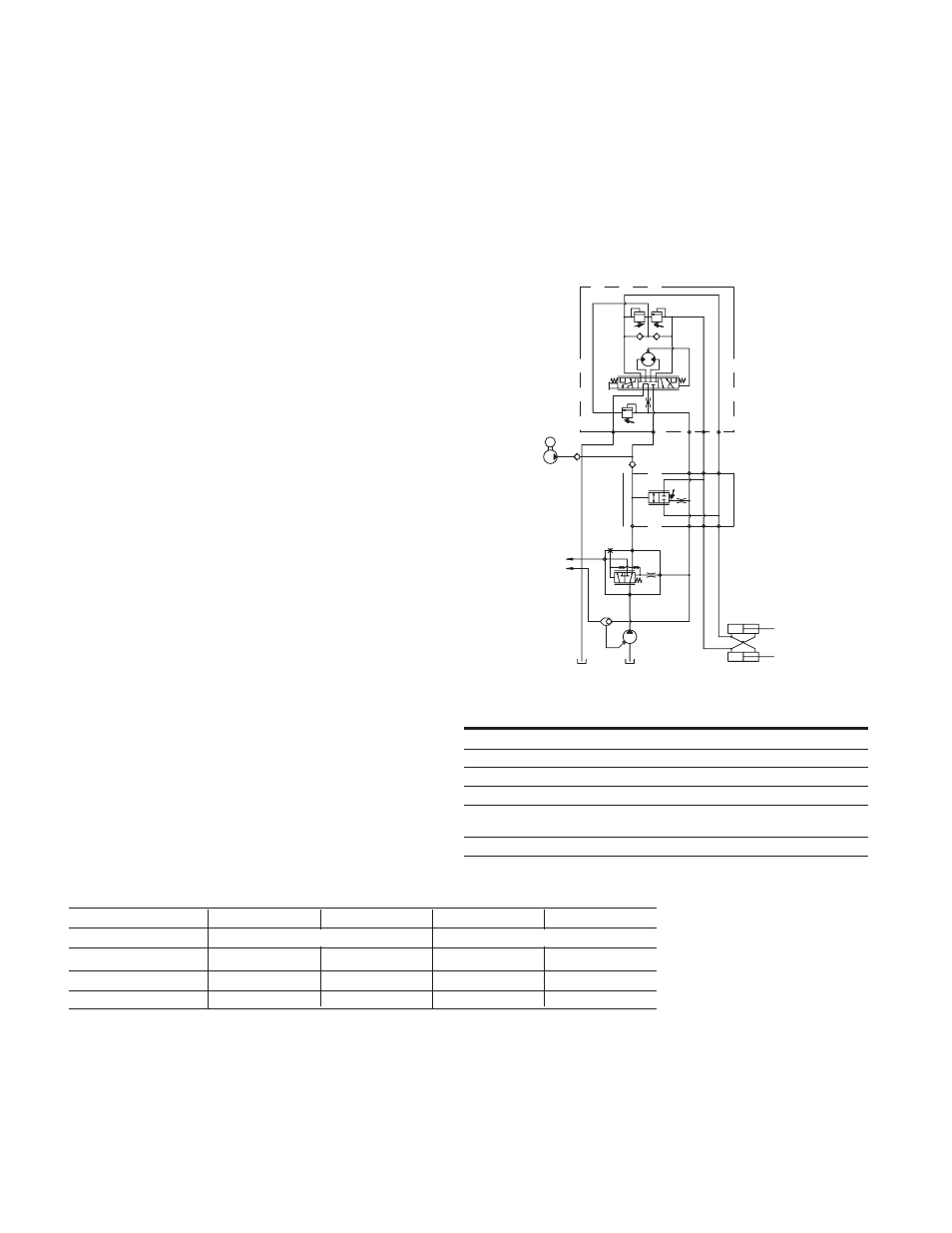

L R LS
L1 R1 LS1
CF1
L2 R2 LS2
LS
EF
P
CF
Steer
Cylinders
PFC
Pump
Priority
Valve
Emergency
Steer
Pump
Supply
Implement
Valve
Electric
Pump M
Steering
Control Unit
Anti
Jerk
Manifold Anti
Jerk
Valve
Ordering Information
1. Reference Part Number: 5991006-001
Ports:
CF1, CF2 3 /
4
-16 UNF
L1, L2, R1, R2 3 /
4
-16 UNF
LS1, LS2 7/16-20 UNF
Pressure Setting Range: 100-600PSI
2. Specify Ports.
Port Options Option 1 Option 2 Option 3 Option 4
Ports 8 Size 12 Size
CF1, CF2 3 /
4
-16 UNF M18 1 1/6-12UNF M27
L1, L2, R1, R2 3 /
4
-16 UNF M18 7/8-18 UNF M22
LS1, LS2 7/16-20 UNF M12 7/16-20 UNF M12
3. Choose Pressure Setting Options: Within the 7-40 bar [100-600 PSI] range with a minimum
increment of 3.45 bar [50PSI].
Options:
1 7 bar [100 PSI]
1.5 10.5 bar [150 PSI]
- - - -
6 40 bar [600 PSI]
PSV10-10 Pressure Sequence Valves
SPECIFICATIONS
Pressure Rating for
Aluminum block 210 bar [3000 PSI]
Ductile Iron block 241bar [3500 PSI]
Temperature Range -40º to 120ºC [-40º to 248ºF]
Fluids All general purpose hydraulic fluids
such as: MIL-H-5606, SAE 10, etc.
Filtration Cleanliness code 18/16/13
