42 EATON Char-Lynn Steering Catalog C-STOV-MC001-E1 July 2006
Steering Control
Units—Series 20

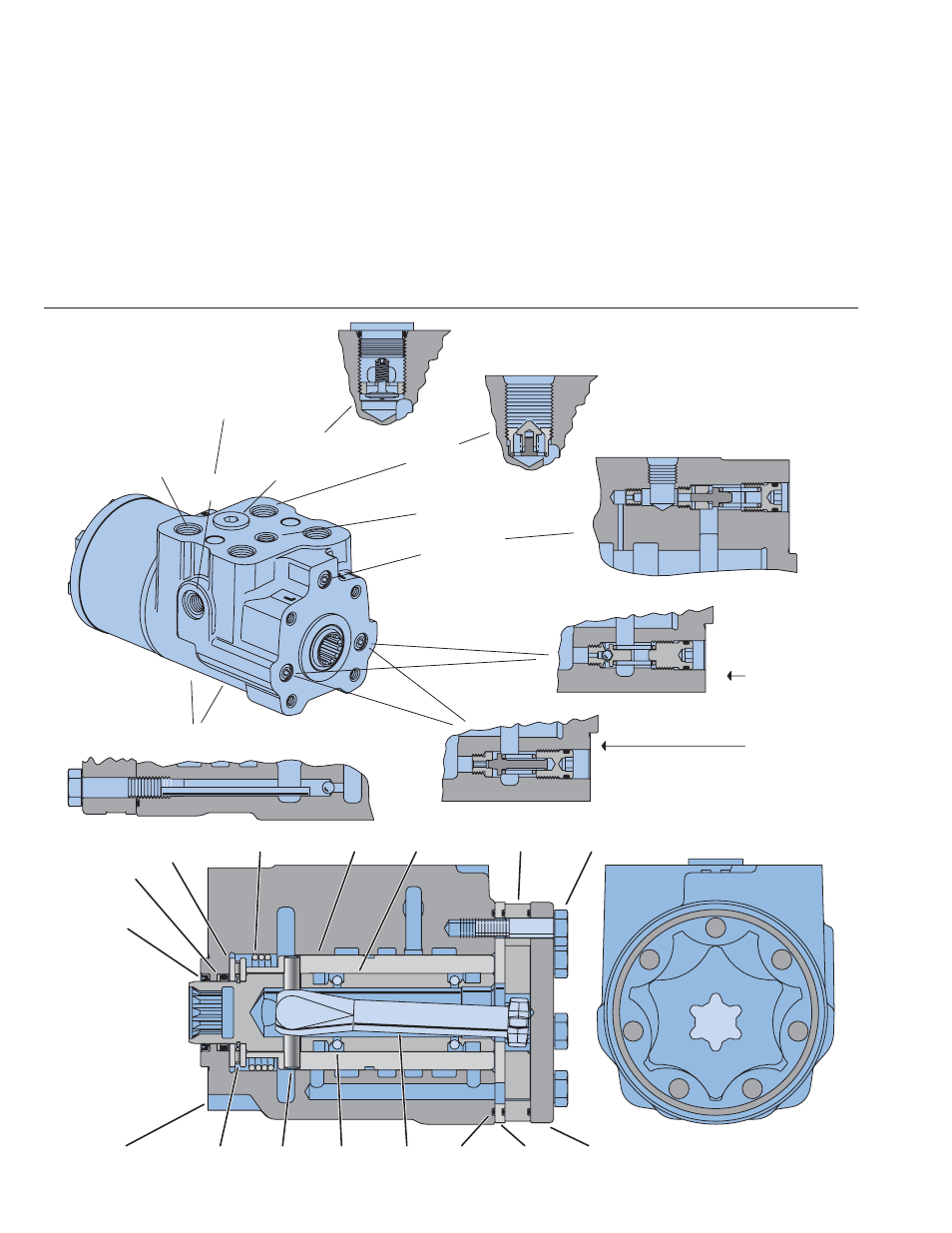

Sectional Drawing
and Integral Valves
Inlet
Check
Valve
Inlet Check
Valve (with
Q-Amp Option)
Anti-Cavitation Valves (2)
Cylinder Relief
Valves (2)
(Standard)
or
(High Capacity)
Load Sense
Relief Valve
*Load Sense Port on Port Face
Available with Load Sense
Relief Option Only
Pressure Ports (4)
Load
Sensing
Port
Load Sensing Port*
(Side)
Bearing
Race Shaft
Seal
(3 piece)
Dust Seal
Housing Pin Bearing, Needle Ball, Check Drive O-ring Spacer Plate End Cap
Centering Spring Sleeve Spool Gerotor Cap Screw
View of Gerotor Section
