74 EATON Char-Lynn Steering Catalog C-STOV-MC001-E1 July 2006

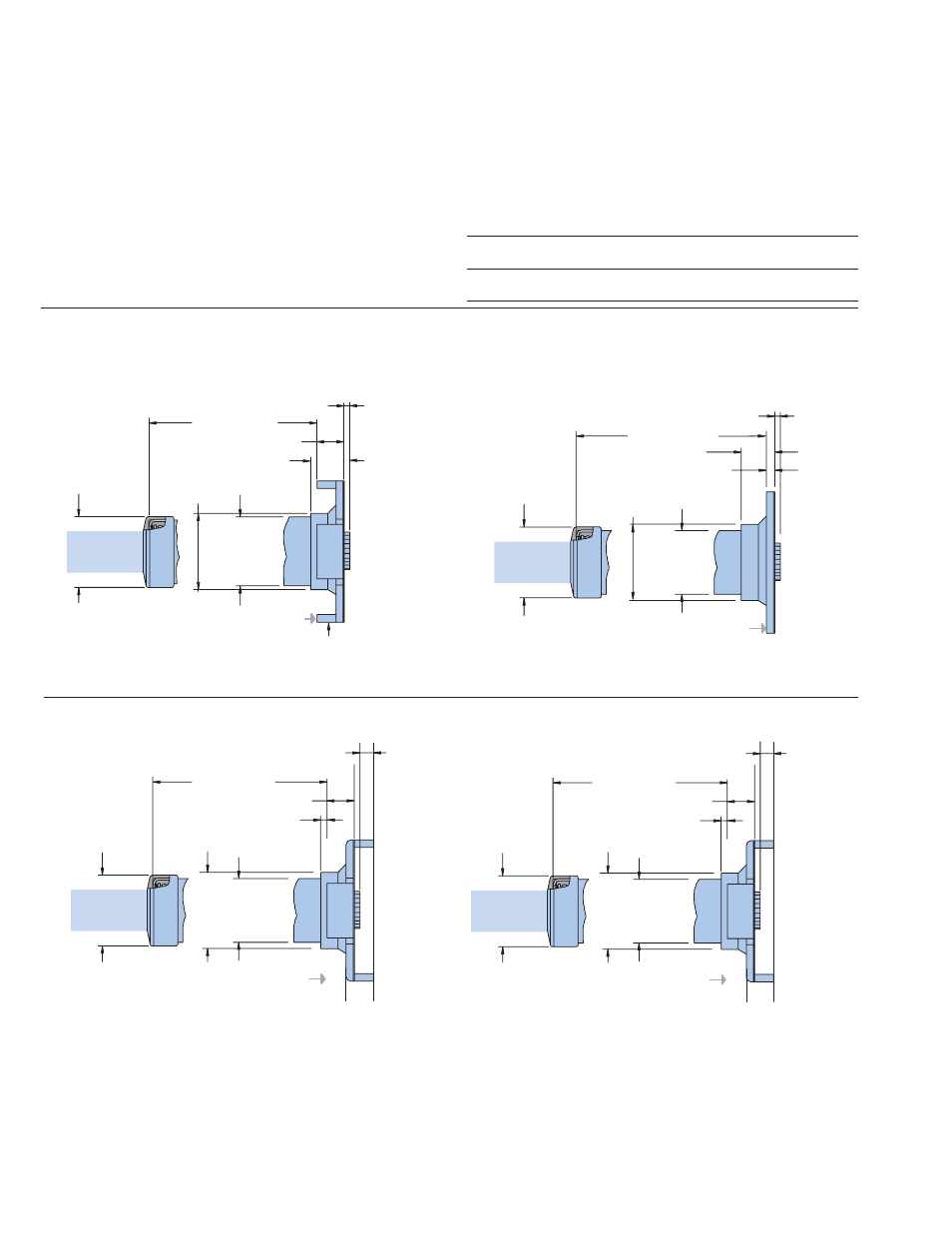

Dimension X *
44
[1.73]
Pilot Dia. 40,6
[1.6]
Dia.
38
[1.49]
Dia.
5,77 [.227]
Shaft End
23,6 [.93]
6,4 [.25]
9,4 [.37]
Mounting
Surface
Position 4-5
Steering System
Components
Columns
Jacket/Base Type
Dimension X *
44
[1.73]
Pilot Dia. 40,6
[1.6]
Dia.
38
[1.49]
Dia.
5,77 [.227]
Shaft End
23,6 [.93]
6,4 [.25]
9,4 [.37]
Mounting
Surface
Position 4-5
Example—see model code page 73
Position 4-5
SH Standard with flat flange (No Tabs)
Position 9, 10, 11
026 66,1 [2.60] (Dimension X)
23,6 [.93]
5,77 [.227]
Mounting
Surface
38,1
[1.5]
Dia.
Dimension X *
44,32
[1.745]
Pilot Dia.
40,6
[1.6]
Dia.
Shaft End
6,4 [.25]
Position 4-5
Tab (4)
40,6
[1.6]
Dia.
Shaft End
41,4
[1.63]
Dia.
Mounting
Surface
Dimension X *
44,32
[1.745]
Pilot Dia. 20,3 [.80]
15,2 [.60]
6,4 [.25]
Position 4-5
*Dimension X—see model code page 73 Position 9, 10, 11 (Jacket Length)
SH Standard Wall
(Available on Square Series 5, Series 10, 20, 25, 40)
SJ Standard Wall
(Available on Square Series 5, Series 10, 20, 25, 40)
HG Heavy Wall
(Available on Square Series 5, Series 10, 20, 25, 40) MN
(Round Series 5 with End Ports Only)
