72 EATON Char-Lynn Steering Catalog C-STOV-MC001-E1 July 2006
Steering System
Components
Columns
Product
Description

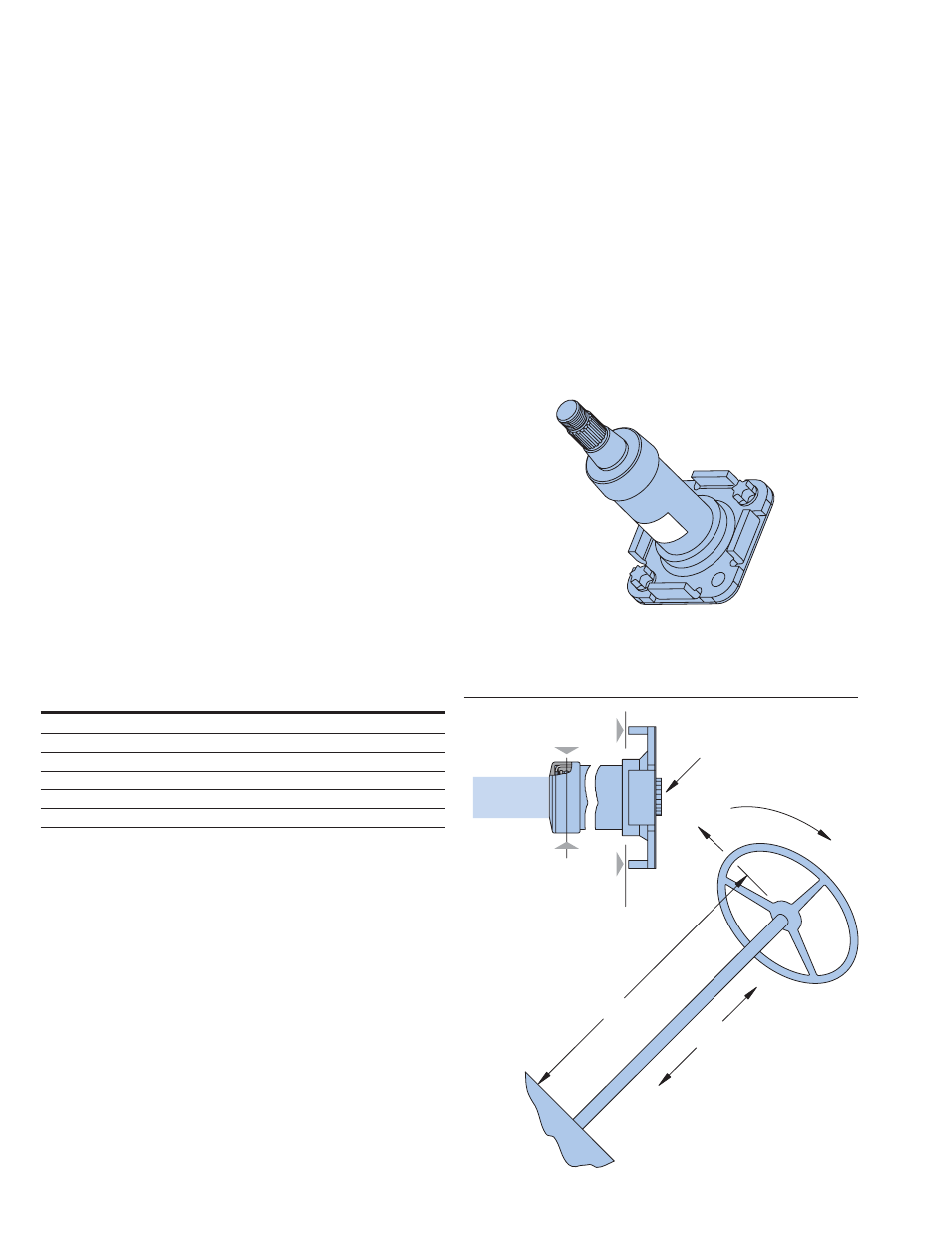

Char-Lynn columns can be
custom built to your exact
specifications. The column
and mounting flange is
of a sturdy single weldment
design. These columns have
high thrust and side load
capacity with low shaft tor-
tional friction. Columns are
painted with low gloss black
finish and the shafts are
phosphate coated and
oil dipped for corrosion
protection. Features
• Low friction bearings to
carry thrust and side
loads
• dust boot to protect
against dirt and
moisture
• Four jacket types are
available
• Two lower ends and ten
upper ends are available
• Two different horn wire
configurations
• available from 56 to 825
mm [2.2 to 32.5 inch]
• pre-assembled to steering
units per your request
L
T
d
Pa
Shaft End
C of Bearing
Mounting Flange Surface
Use non-soap base grease
for column, spline, steering
unit interface
L
SPECIFICATIONS
Rated Tortional 81Nm [60 lb-ft]
Rated Bending Moment* 136 Nm [100 lb-ft]
Rated Radial Load** 86 kg [150 lb]
Rated Axial Load 86 kg [150 lb]
Tortional Friction Drag 0,23 kg [2 lb-in]
Recommended Wheel Nut Torque 47 Nm [35 lb-ft]
*Bending moments are taken about the plane of the column mounting surface.
**Radial load at the bearing centerline must not exceed the horizontal bending moment rating.
Five Steps for “How to Order Your Column”
1 Select Jacket/Base Type
2 Select Lower Shaft Type
3 Select Upper Shaft End Type
4 Select Length (use suggested standard length)
5 Select Add-On Features
a) Horn Wire
b) Wire Ends
• Please contact your Eaton Representative if any request
differs from our catalog offerings.
