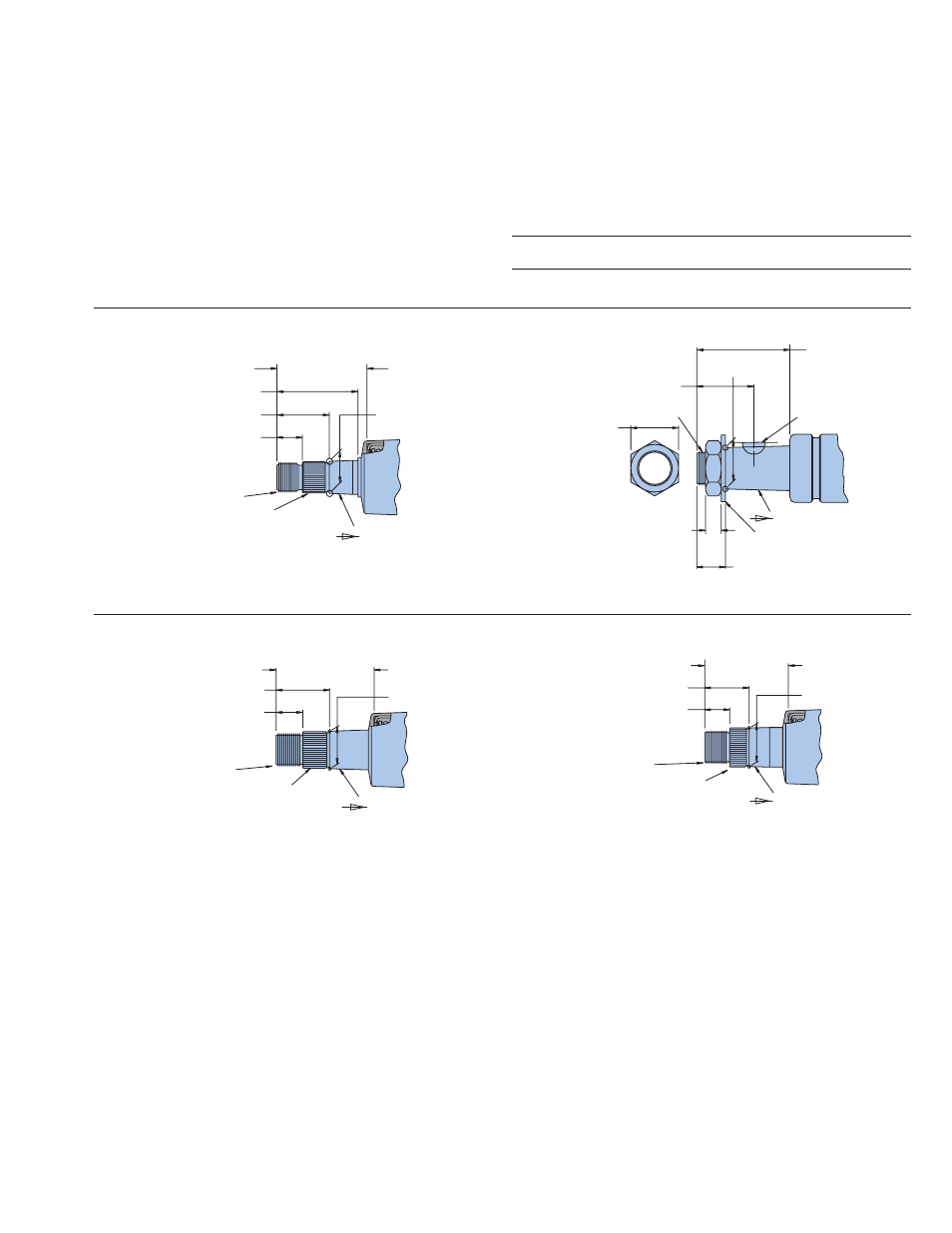

Steering System
Components
Columns
Upper Shaft End
Continued
Example—see model code page 73
Position 7-8
YM
(.050 : 1 Taper M18 x 1,5 - 6g Thread)
Not available with horn wire
Not Available
with Horn
Wire
40 Tooth Straight Tooth Serration
17,48 [.688] Major Dia.
.083 : 1
M16 x 1,5 - 6g Thread
Note: Torque Nut to
41-54 Nm [30-40 lb-ft]
50,5 [1.99]
45,50 [1.790]
14,27 [ .562]
17,92 [.705] Dia.
29,36 [1.156]
.050 : 1
M18 x 1,5 - 6g Thread
M18 x 1,5 - 6H
Thread Jam Nut
Note: Torque Nut to
41-54 Nm [30-40 lb-ft]
32,0 [1.26]
52,1 [2.05]
23,2 [.913] Dia.
5 [.197] x
6,5 [.256]
Woodruff Key
26,9 [1.06]
8,9 [.35]
16,0 [.63]
37,3 [1.47] Dia. Washer
Not Available
with Horn
Wire or Tilt
CL
Position 7-8
36 Tooth Straight Serration
20,55 [.809] Major Dia.
.0625 : 1
M18 x 1,5 - 6g Thread
Note: Torque Nut to
41-54 Nm [30-40 lb-ft]
55,00 [2.165]
30,00 [1.181]
15,00 [.590]
21,00 [.827] Dia.
36 Tooth Straight Serration
21,79 [.858] Major Dia.
.052 : 1
M18 x 1,5 - 6g Thread
Note: Torque Nut to
41-54 Nm [30-40 lb-ft]
47,0 [1.850]
24,90 [.980]
14,00 [.551]
21,55 [.848] Dia.
SV
Position 7-8
PT
Position 7-8
YM
Position 7-8
