EATON Char-Lynn Steering Catalog C-STOV-MC001-E1 July 2006 71
Steering System
Components

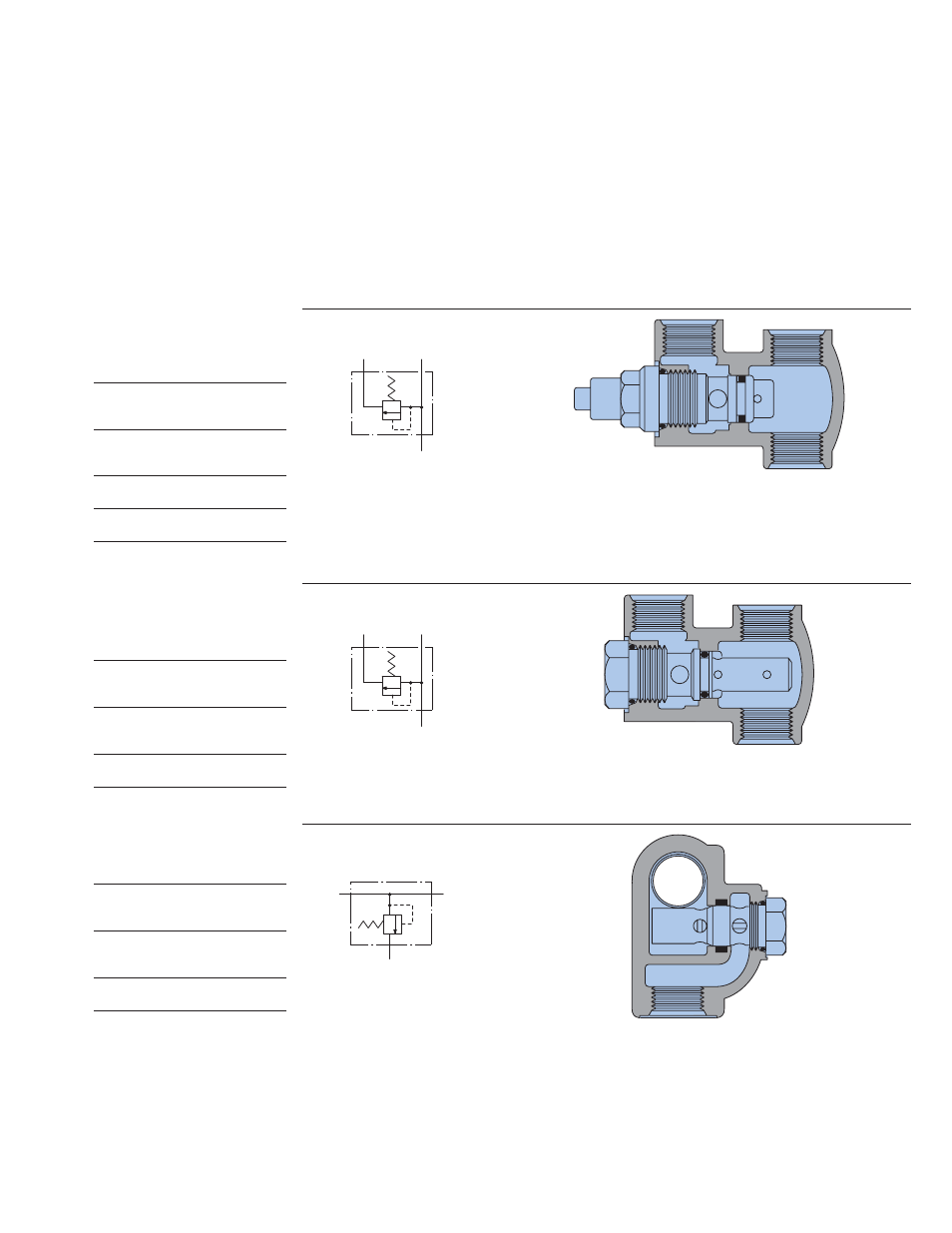

Relief Valves
P
P
T
P
P
T
P P
T
Model 32112
In-Line Relief Valve
Specifications
Max. Flow Through
Relief Valve 132,5 l/min
[35 GPM]
Relief Valve
Setting Range 69–241 bar
[1000–3500 PSI]
Housing Rated
Pressure
345 bar [5000 PSI]
Comprehensive Relief Valve
Description
(see Eaton Relief Valve
Catalog 11-510)
Model 32107
In-Line Relief Valve–Direct
Acting Cartridge
Specifications
Max. Flow Through
Relief Valve 57 l/min
[15 GPM]
Relief Valve
Setting Range 47–276 bar
[675–4000 PSI]
Standard Relief
Valve Setting 138 bar [2000 PSI]
Housing Rated
Pressure 345 bar [5000 PSI]
Model 32107
In-Line Relief Valve–Pilot
Operated Cartridge
Specifications
Max. Flow Through
Relief Valve 75,7 l/min
[20 GPM]
Relief Valve
Setting Range 103–241 bar
[1500–3500 PSI]
Housing Rated
Pressure 345 bar [5000 PSI]
