40 EATON Char-Lynn Steering Catalog C-STOV-MC001-E1 July 2006
Steering Control
Units—Series 20

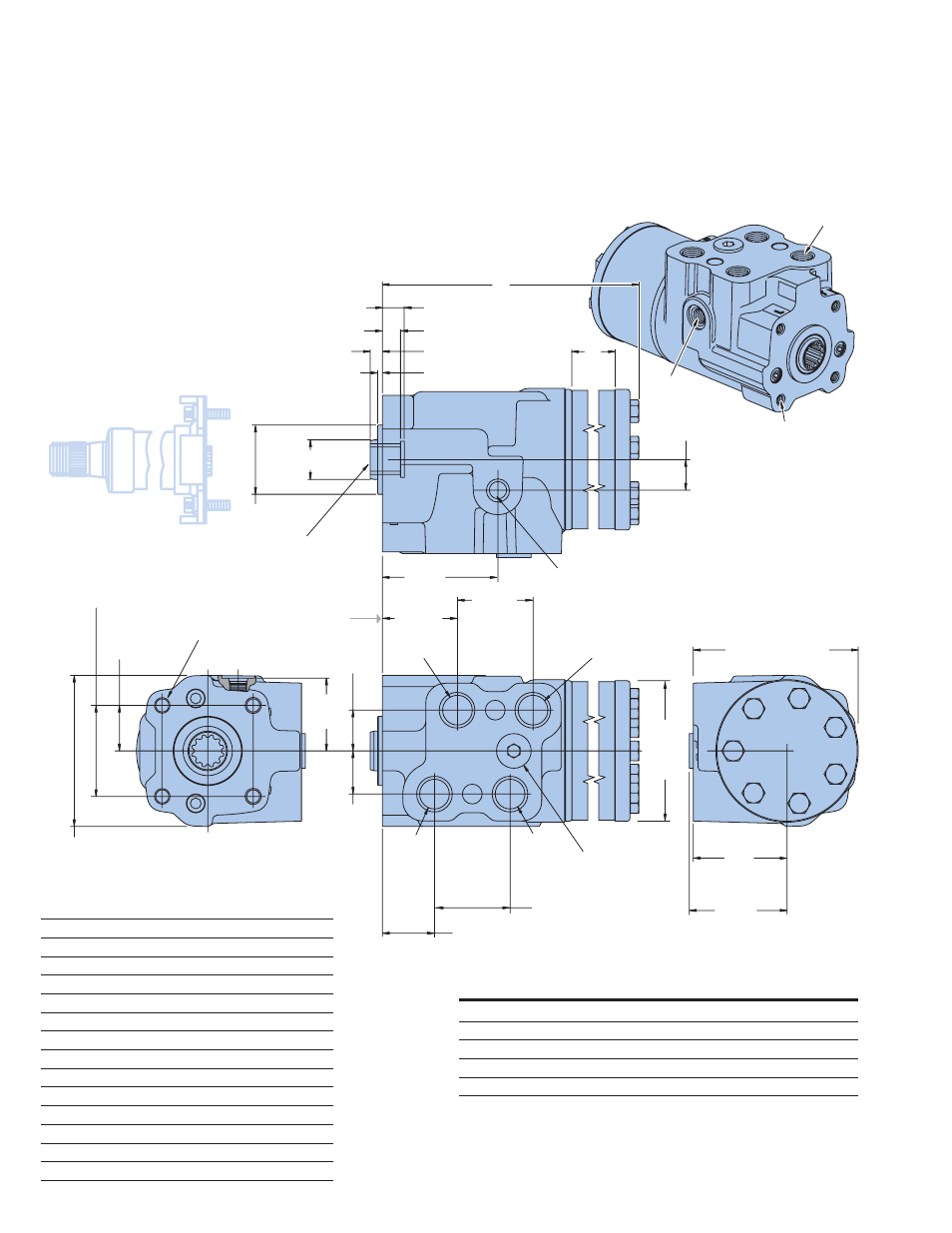

Installation Drawing
R
P
L
T
B
A
63,7
[2.51]
Max.
60,2
[2.37]
107,4 [4.23] Max.
Inlet Check Valve
(with Q-Amp Option)
Tank Pressure
48,51 [1.910]
33,40 [1.315]
46,7
[1.84]
26,16
[1.030]
M10 x 1,5-6H
16,2 [.60] (4)
44,40 [1.748]
25,7 [1.01] Max.
19,6 [.77]
90,9
[3.58]
Max.
3,68/3,43 [.145/.135]
8,4 [.33] Max.
4,8 [.19] Min.
9,7 [.38] Min.
76,7
[3.02]
12 Tooth Involute Spline
16/32 D.P. 30
°
P.A.
13,58 [.535] Deep
Mounting
Surface
98,3 [3.87] Max.
58,37
[2.298]
(2)
29,18
[1.149]
(2)
Load Sensing Port
Left Right
27,69
[1.09]
48,51
[1.910]
48,13
[1.895]
See Catalog 11-872
for Column Details.
E*
C
D
Displ. A B
cm 3 /r [in 3 /r] mm [in.] mm [in.]
60 [ 3.6] 6,1 [ .24] 143,3 [5.64]
75 [ 4.5] 7,9 [ .31] 145,0 [5.71]
95 [ 5.9] 10,2 [ .40] 147,3 [5.80]
120 [ 7.3] 12,7 [ .50] 149,9 [5.90]
145 [ 8.9] 15,5 [ .61] 152,7 [6.01]
160 [ 9.7] 16,8 [ .66] 153,9 [6.06]
185 [11.3] 19,6 [ .77] 156,7 [6.17]
230 [14.1] 24,4 [ .96] 161,5 [6.36]
295 [17.9] 31,0 [1.22] 168,1 [6.62]
370 [22.6] 39,1 [1.54] 176,3 [6.94]
460 [28.2] 48,8 [1.92] 185,9 [7.32]
590 [35.9] 62,2 [2.45] 199,3 [7.85]
740 [45.1] 78,2 [3.08] 215,3 [8.48]
985 [60.0] 103,9 [4.09] 241,0 [9.49]
PORT AND MOUNTING THREAD COMBINATIONS
C D E*
3/4–16 UNF 2B** M10 x 1,5–6H 7/16–20 UNF 2B**
G 1/2*** M10 x 1,5–6H G 1/4***
M18 x 1,5–6H M10 x 1,5–6H M12 x 1,5–6H, M14
M22 x 1,5–6H M10 x 1,5–6H M12 x 1,5–6H, M14
*Load sensing port option—on side (load sense relief
port face only - see page 44).
**SAE O-ring Port Port
***BSP Straight Thread Port
