EATON Steering Catalog C-STOV-MC001-E1 May 2006 33
56,1[2.21] *
38,61/38,41
[1.52/1.480]
8,89/8,39
[.350/.330]
83,8
[3.30]
Dia. Max.
63,25/62,49
[2.490/2.460]
94,0 [3.70] Max.
47,8
[1.88]
48,8
[1.92]
Max.
94,0
[3.70]
Max.
45,0/44,0
[1.77/1.73]
Max.
58,67/58,17
[2.310/2.290]
103,6
[4.08]
Max.
12 Tooth Involute Spline
16/32 D.P. 30
°
P.A.
14,2 [.56] Deep
45
°
Column Mounting
Thread x 15,2 [.60]
Deep on 82,5 [3.25]
Dia. Bolt Circle
44,45/44,34
[1.750/1.746]
Dia.
2,05/3,36 [.081/.132]
Left
Tank Pressure
Right
Port Mounting Thread x 24,1 [.95] Min. Deep (2)
C
D
56,13/55,37 [2.210/2.180]
8,2 [.32] Max.
7,4/5,4 [.29/.21] Spline
10,2 [.40] Min. Depth (7,1 [.28] Max.
Mating Spline Depth)
37,08/36,32 [1.460/1.430]
63,12/62,62 [2.485/2.465]
22,48/21,98
[.885/.865]
44,96/43,94
[1.770/1.730]
83,8
[3.30]
Dia.
Max.
60,51/59,49
[2.382/2.342]
Load Sensing
Port Face
Load Sensing Side Port
Load Sensing
Side Port
* LS side port
location changes
with a LSR
PORT AND MOUNTING THREAD COMBINATIONS
Column Load Port
Port Mounting Sensing* Mounting
Thread Port Thread
3/4 -16 M10 x 1,5-6H 7/16 - 20 M12 x 1,75-6H
M18 x 1,5-6H M10 x 1,5-6H M12 x 1,5-6H M12 x 1,75-6H
STC M10 x 1,5-6H STC M12 x 1,75-6H
G 1/2 (BSP) M10 x 1,5-6H G 1/4 (BSP) M12 x 1,75-6H
*Load Sensing Units Only.
Displacement
cm
3 /r Dimension C Dimension D
[in 3 /r] mm [in.] mm [in.]
60 [ 3.6] 10,2 [ .40] 138,1 [5.44]
75 [ 4.5] 10,2 [ .40] 138,1 [5.44]
95 [ 5.9] 13,2 [ .52] 141,1 [5.56]
120 [ 7.3] 16,5 [ .65] 144,4 [5.69]
146 [ 8.9] 20,1 [ .79] 148,0 [5.83]
159 [ 9.7] 21,8 [ .86] 149,9 [5.90]
185 [11.3] 25,4 [1.00] 153,3 [6.04]
231 [14.1] 31,7 [1.25] 159,7 [6.29]
293 [17.9] 40,4 [1.59] 168,3 [6.63]
370 [22.6] 50,8 [2.00] 178,7 [7.04]
462 [28.2] 63,5 [2.50] 191,4 [7.54]
588 [35.9] 80,8 [3.18] 208,8 [8.22]
739 [45.1] 101,6 [4.00] 229,6 [9.04]
Steering Control
Units—Series 10

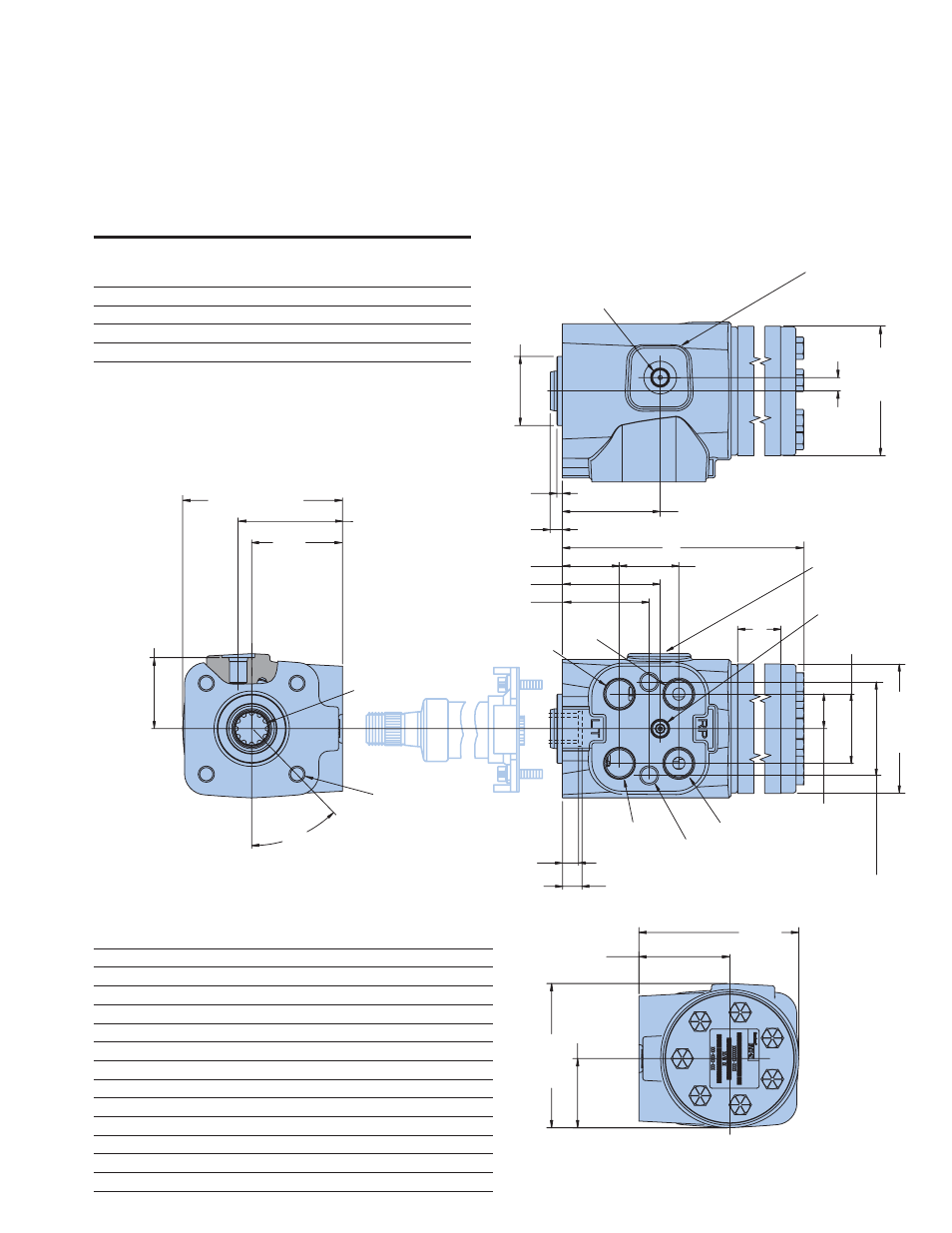

Installation Drawing
