80 EATON Char-Lynn Steering Catalog C-STOV-MC001-E1 July 2006
Steering System
Components

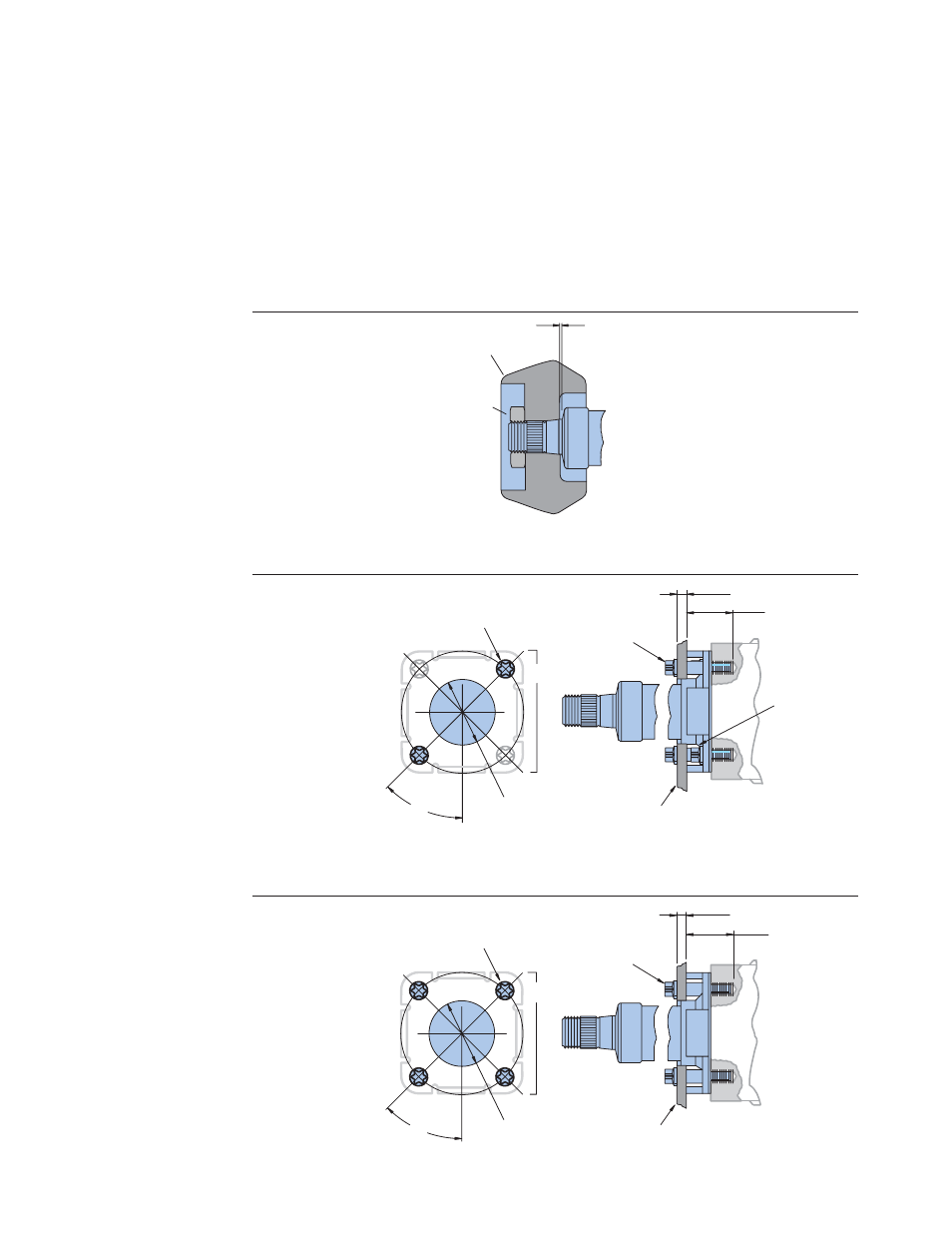

Columns and Wheel
Mounting Product
Information
Y Dim.
30,5 [1.20] Max.
27,2 [1.07] Min.
Four Bolts
3/8 -16 NC x
Y + 30,5 [1.20]
44,4 [1.75] Dia.
Port Face
45
°
Mounting Bracket
or Bulkhead
9,5 [.375] Dia.
on 3.25 [82,5] Dia.
Bolt Circle (4)
Series 20, 25
Must use four bolts through
mounting bracket or
bulkhead.
Y Dim.
Mounting Bracket
or Bulkhead
Two Bolts
3/8 -16 NC x
Y + 30,5 [1.20]
9,5 [.375] Dia.
on 3.25 [82,5] Dia.
Bolt Circle (4)
44,4 [1.75] Dia.
Port Face
Two Bolts
3/8 -16 NC x
19,0 [.75]
(Supplied
with Column)
45 °
30,5 [1.20] Max.
27,2 [1.07] Min.
Square Series 5 and
Series 10
Must use two bolts through
mounting bracket or
bulkhead and two bolts
through just the steering
column or four bolts through
mounting bracket
or bulkhead.
Inspect for Minimum
Clearance at Assembly
Steering
Column
1,6 mm [.06 in.] Min.
Steering Wheel Hub
Torque To
4,7 da Nm
[35 lb-ft]
