EATON Char-Lynn Steering Catalog C-STOV-MC001-E1 July 2006 67
Steering System
Components

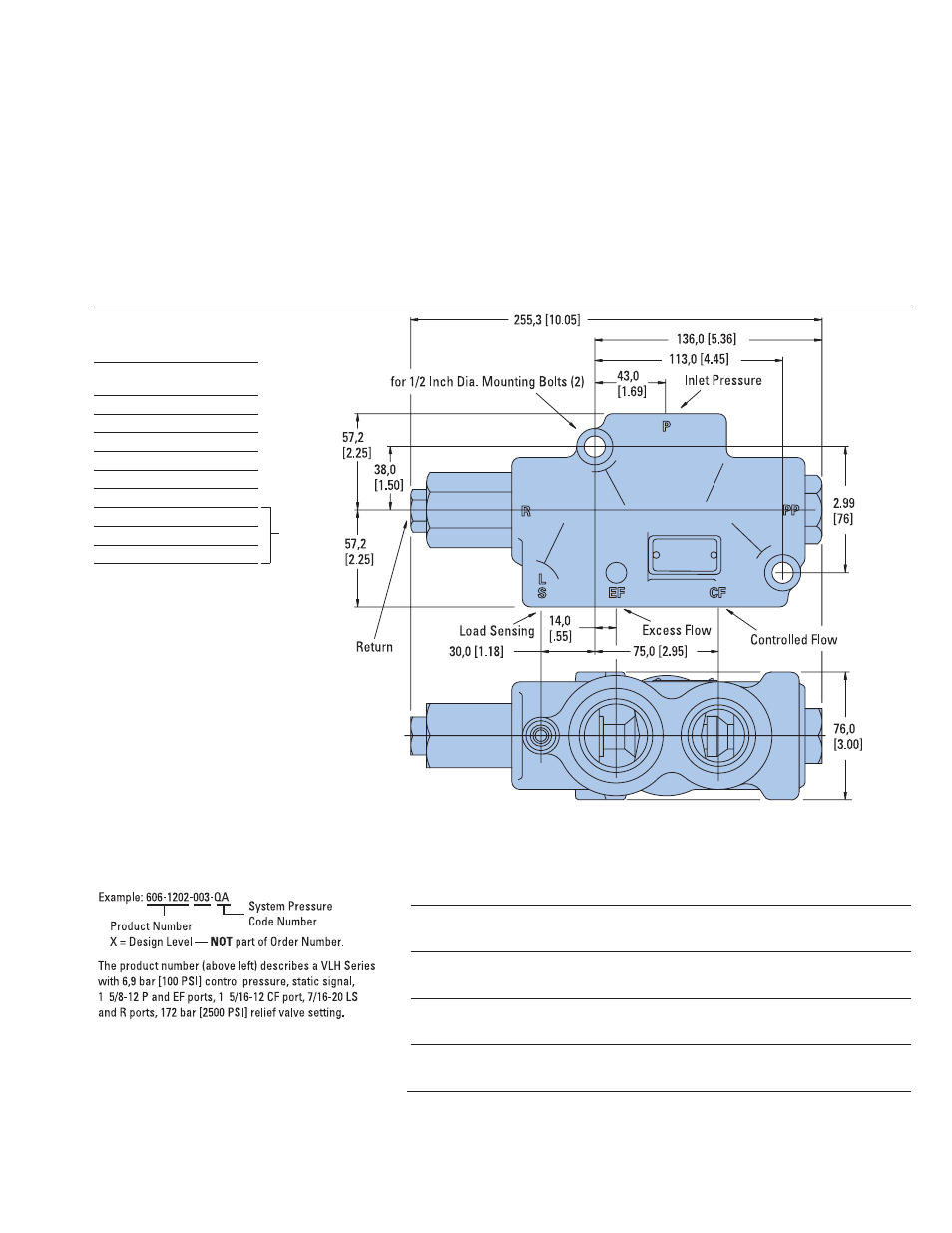

VLH In-Line
Priority Valves
240 l/min [63 GPM]
Rated Flow
Code System Pressure
Number bar [PSI]
DD 83 [1200]
HE 120 [1725]
LA 138 [2000]
MC 150 [2175]
NC 160 [2300]
QA 172 [2500]
UA 207 [3000]
VD 230 [3325]
VK 240 [3475]
High
Pressure
For comprehensive
information on all steering
system components “Valves”
see Eaton catalog 11-508.
Control Pressure - bar [PSI] / Product Number
Static Dynamic Static Dynamic Static Dynamic
Ports (5) O-ring Signal Signal Signal Signal Signal Signal
Port Size 5,2 [75] 5,9 [85] 6,9 [100] 7,6 [110] 10,3 [150] 11,4 [165]
P & EF 1 5/8 - 12
CF 1 5/16 - 12 606-1201 606-1288 606-1202 606-1289 606-1203 606-1290
LS & R 7/16 - 20
P & EF 1 5/8 - 12
CF 1 1/16 - 12 606-1368 606-1284 606-1369 606-1285 606-1370 606-1286
LS & R 7/16 - 20
P & EF 1 5/8 - 12
CF 3/4 - 16 606-1189 606-1371 606-1190 606-1372 606-1191 606-1373
LS & R 7/16 - 20
Rated CF Pressure is
276 bar [4000 psi]
Rated inlet and EF Pressure
is 296 bar [4300 psi]
