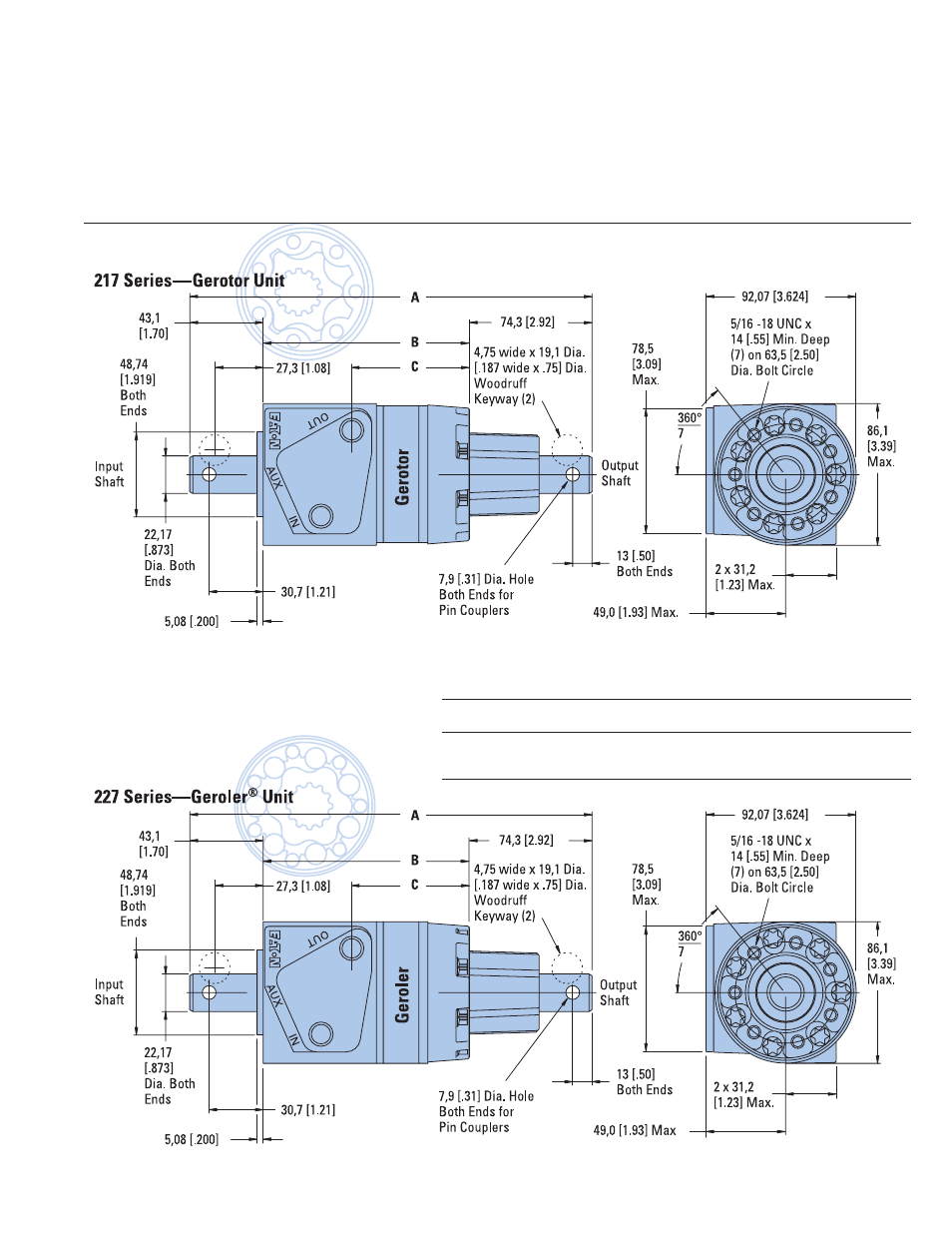

Torque Generator
Installation Drawing
Displacement
Dimension mm [inch]
cm
3
/r [in
3
/r]
A
B
C
217 Series
96,1 [5.86]
231,9 [9.13]
114,5 [4.51]
60,4 [2.38]
(Gerotor Unit)
159,6 [9.73]
240,6 [9.47]
123,2 [4.85]
69,3 [2.73]
80,3 [4.90]
233,3 [9.18]
115,9 [4.56]
62,0 [2.44]
227 Series
101,6 [6.20]
237,2 [9.34]
119,8 [4.72]
65,9 [2.59]
(Geroler
®
Unit)
160,0 [9.64]
247,5 [9.74]
130,1 [5.12]
76,2 [3.00]
