84 EATON Char-Lynn Steering Catalog C-STOV-MC001-E1 July 2006
Steering System
Components
Steering Wheels
and Accessories
30
°
Two Places
1,0 [.04]
25
°
42,2 [1.66]
25,40
[1.000]
22,4 [.88]
9,4 [.37]
16,38/15,88
[.645/.625] Dia.
12 Tooth Spline to
Fit Char-Lynn SCU
22,23
[.875] Dia.
18,09/18,00
[.712/.709] Dia.
Involute Spline
(see Spec.)
Major Dia.
20,40/20,24
[.803/.797] Minor Dia. 16,97/16,59 [.668/653]
Max. Effective
2,428 [.0956]
Min. Actual
2,362 [.0930]
( Circular )
Form Dia.
17,45 [.687]
Pitch Dia.
.7500 [19,05]
82,6 [3.25] Dia.
Upper Shaft End EJ (Ref.) Lower End Type 3 (Ref.)
61,0 [2.40]
See Note Below
See Note
Below

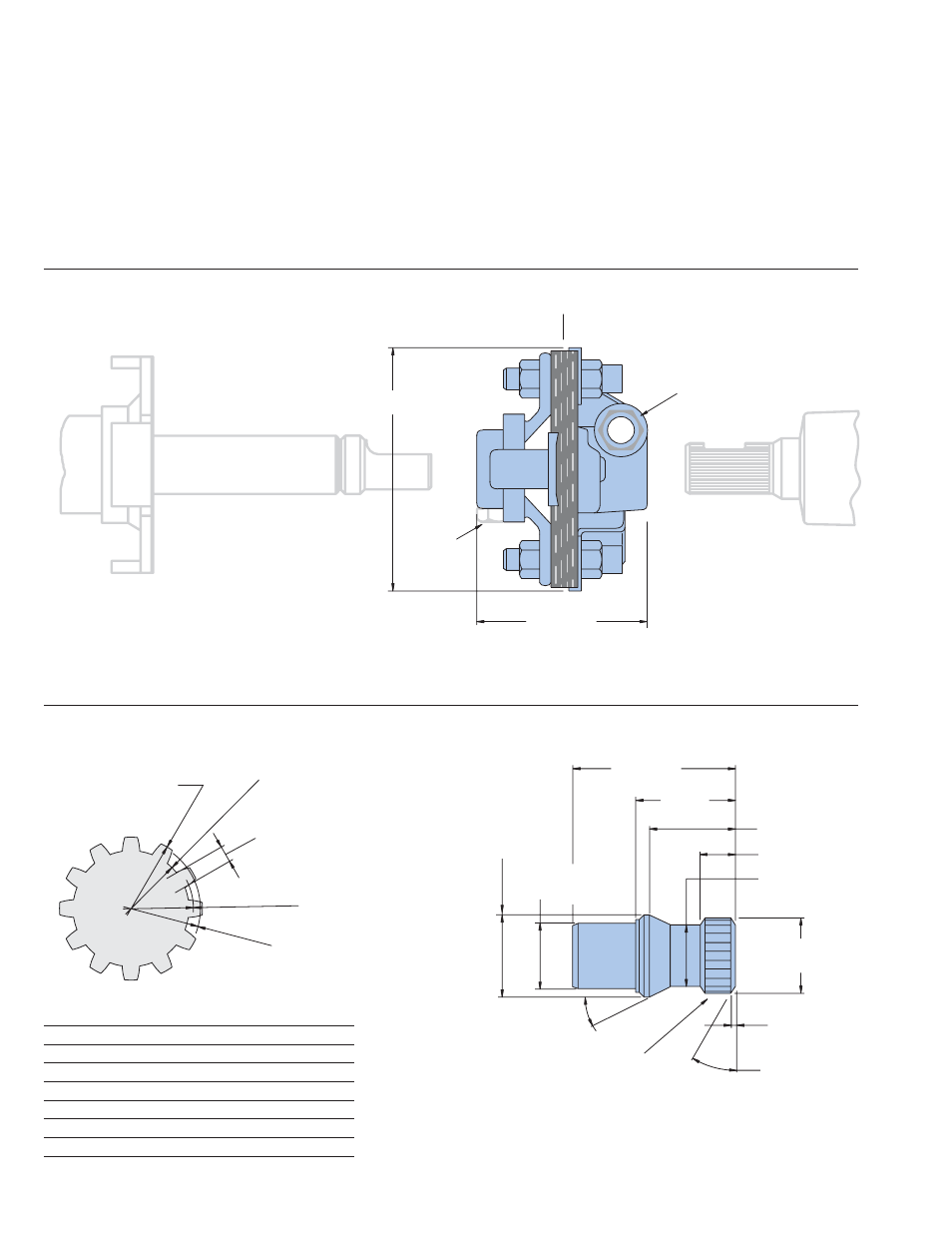

Note: Two screws (3/8-24 UNF x 31,8 [1.25] long — not included)
are required to join isolator to mating steering columns. Torque
screws to 41 Nm [360 lb-in].
Want to Make your Own Column? You Must use these Spline
Specs. Lower Shaft End
This Noise Isolator is Available from Eaton—
Part Number 208-1017-002
Fit Flat Root Side Fit
Number of Teeth 12
Pitch 16/32
Pressure Angle 30°
Class of Fit Special
Circular Tooth Thickness
Max. Effective 2,428 [.0956]
Min, Actual 2,362 [.0930]
Splined End—AISI 8620 Mt'l Case hardened to RC 40-50
Can be press fit and welded into a 22,22 [.875] OD x 2,16
[.085] wall steel tube.
This Splined Lower Shaft End Part (as shown below) is
Available from Eaton—Part Number 8063
12 Tooth Spline Specification (left)
