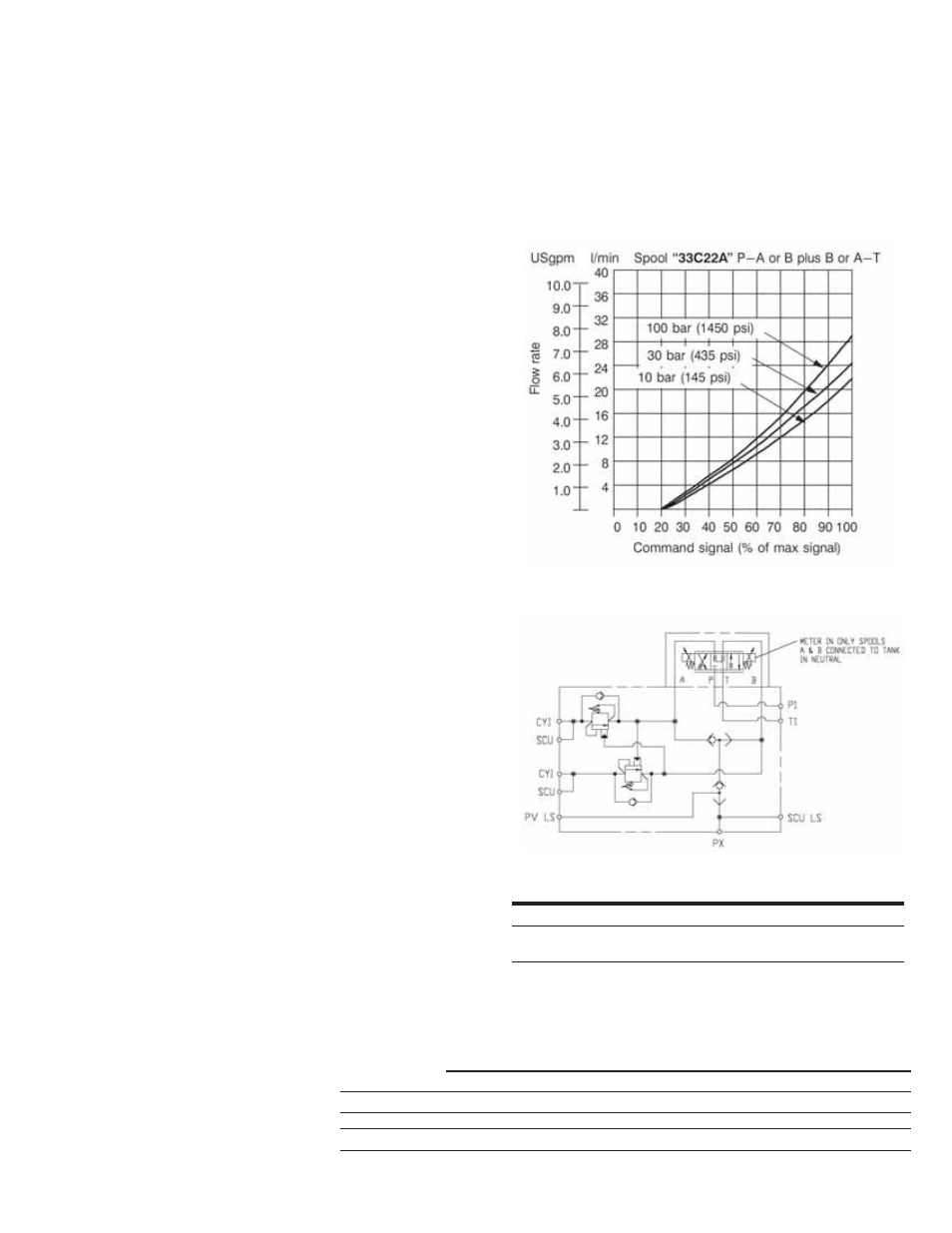

EATON Char-Lynn Steering Catalog C-STOV-MC001-E1 July 2006 85
Steering System
Components
EH Proportional
Loadsensing
Steer Valves
Description
EH proportional steer valves
are commonly used for GPS
steering, joystick steering,
and autoguidance.
This is achieved by a
manifold containing a shuttle
valve, a counterbalance
valve, and a KDG
proportional control valve.
Model Code
Description
DSV2-8
Shuttle Valve
CBV2-10
Counterbalance Valve
KDG4V3S
Proportional Control Valve
(For more information see
Vickers® Screw-in Cartridge
Valves Cat. V-VLOV-MC001-E2
and Vickers Proportional
Valves Cat. 539.)
Features / Applications
• features counterbalance
valves on the turn ports
to minimize leakage and
improve stability. The
counter balance valves
make it particularly
suitable for articulated
machines and machines
with hydraulic Tie Rods
- such as sprayers.
• The valve also features
a load sense drain and
shuttle checks to
resolve the load signal
with the steering
Orbitrol, making it
suitable for use in
Dynamic or Static
signal systems.
SPECIFICATIONS
Max. System Pressure 210 bar [3000 PSI]
Rated Flow (@5 bar
[72.5 PSI] single pass)
19 l/min [5 GPM]
Ordering Information
Choose one of the Part Numbers with different Port Options.
Ports
Part Number P, T R, L LS
5991008-001 3 /
4
-16 UNF 3 /
4
-16 UNF 7/16-18 UNF
5991010-001 M18 x 1,5-6H M18 x 1,5-6H M12 x 1,75-6H
5991012-001 3 /
4
-16 UNF 9/16-18 UNF 7/16-20 UNF
