EATON Char-Lynn Steering Catalog C-STOV-MC001-E1 July 2006 75
Steering System
Components

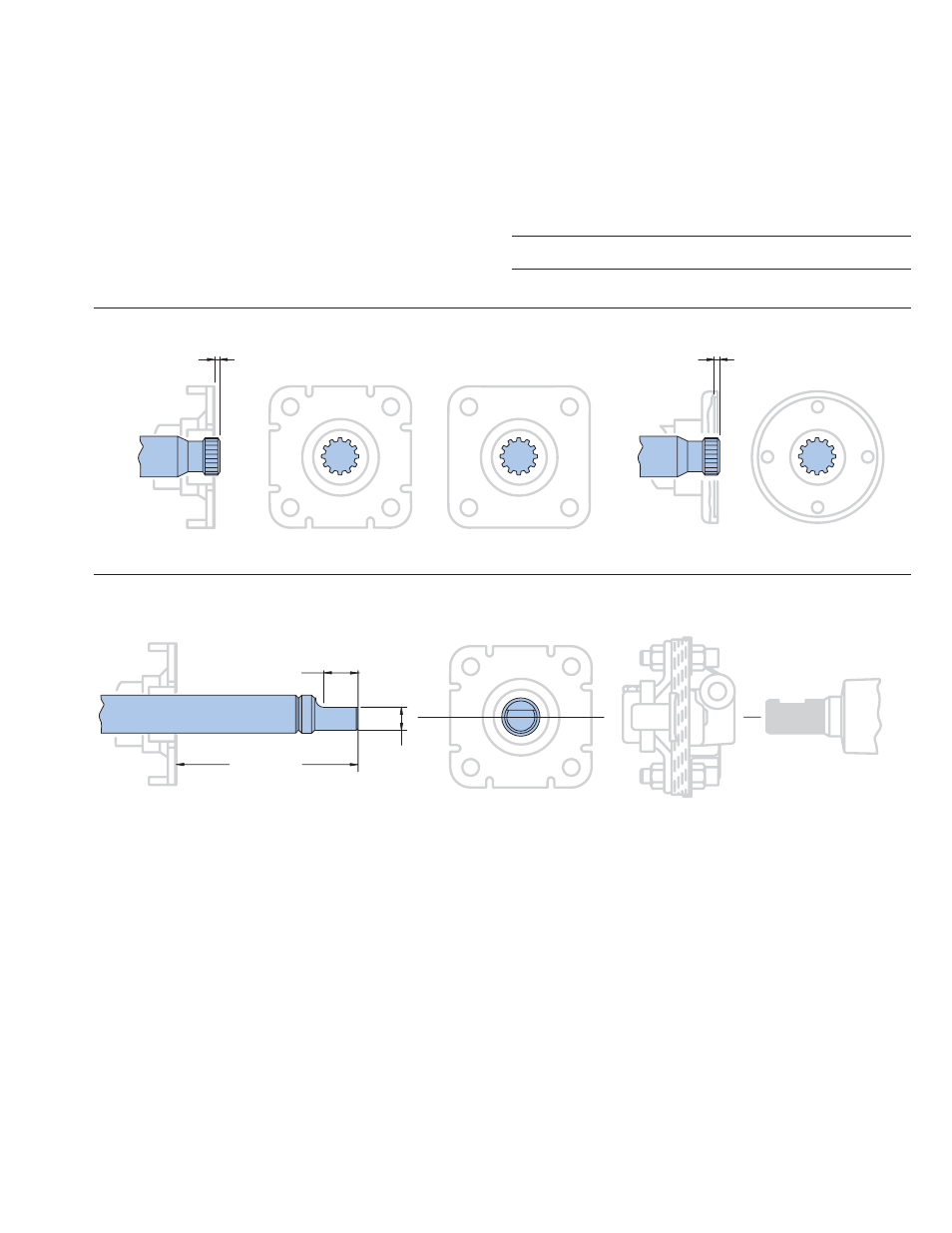

Columns
Lower End Type
Column Mounting
Flange with Tabs
12 Tooth Spline to Fit Char-Lynn ® Steering Control Units
18,8 [.74] Min.
13,54/13,44
[.533/.529] 107,8/105,6
[4.24/4.16]
3/4 inch “D” Section
(for Noise Isolator) Position 6 Noise Isolator (Not Icluded)
Upper Shaft End EJ (Ref.)
6,4 [.25]
Position 6 Column Mounting
Flange without Tabs Column Mounting
Flange for Round Series 5
with Side or End Ports
6,1 [.24]
Example—see model code page 73
Position 6
1 12 Tooth Spline for Steering Unit
1
3
