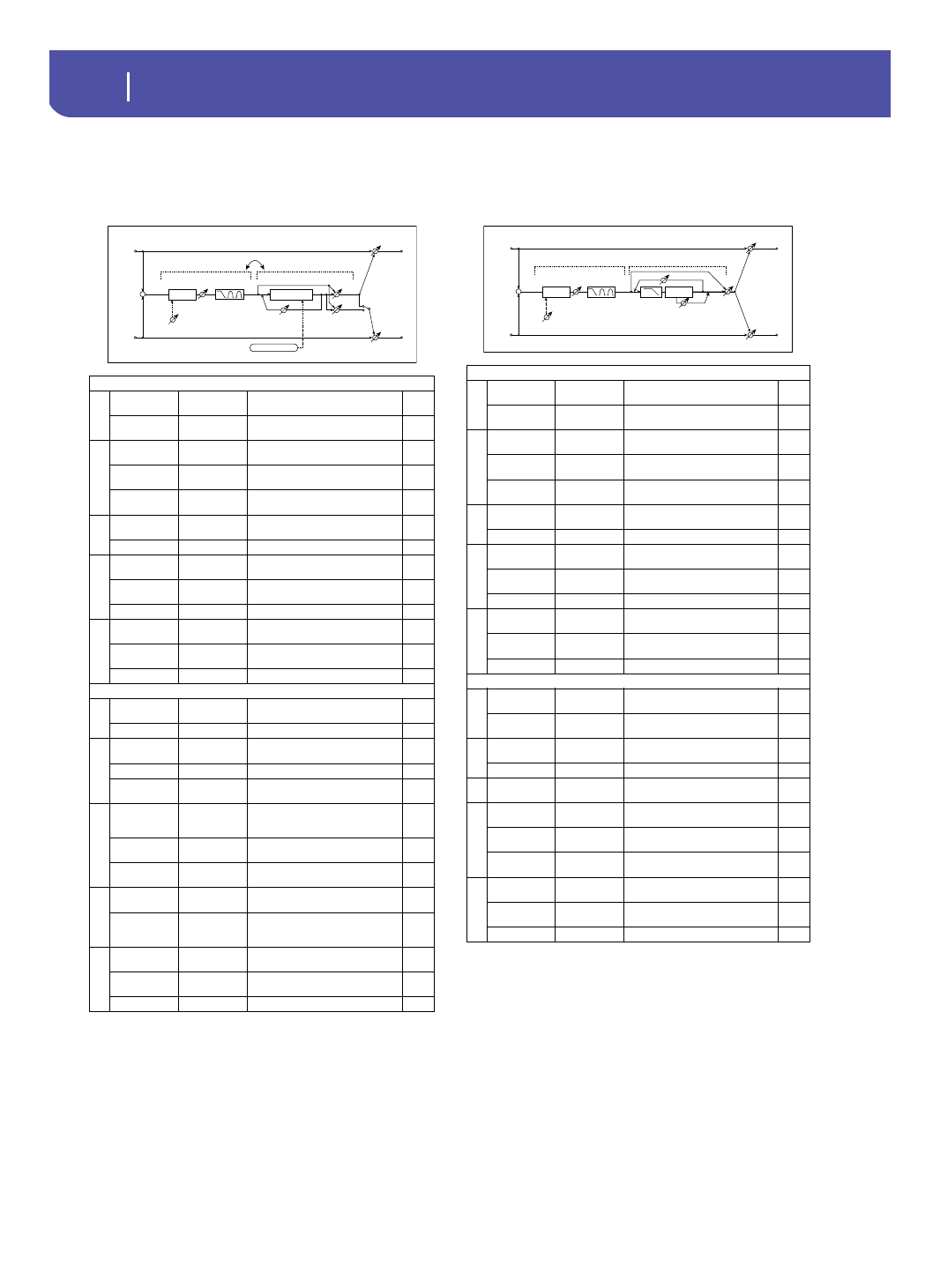

340 Effects
Mono-Mono Serial (Mono-Mono)
101: OD/HG - Phaser
(Overdrive/Hi.Gain - Phaser)
This effect combines a mono overdrive/high-gain distortion and
a phaser. You can change the order of the effects.
102: OD/HG - Mt.Delay
(Overdrive/Hi.Gain - Multitap Delay)
This effect combines a mono overdrive/high-gain distortion and
a multitap delay.
OD/HI-GAIN
a
[O]Drive Mode
Overdrive, Hi-
Gain Switches between overdrive and
high-gain distortion
Drive 1...100
Sets the degree of distortion
b
[O]Output
Level
0...50 Sets the overdrive output level
Src Off...Tempo
Selects the modulation source for
the overdrive output level
Amt –50...+50
Sets the modulation amount of the
overdrive output level
e
[O]Low Cutoff
[Hz]
20...1.00k
Sets the center frequency for Low
EQ (shelving type)
Gain [dB] –18...+18 Sets the gain of Low EQ
f
[O]Mid1 Cutoff
[Hz]
300...10.00k
Sets the center frequency for Mid/
High EQ 1 (peaking type)
Q 0.5...10.0
Sets the band width of Mid/High EQ
1
Gain [dB] –18...+18 Sets the gain of Mid/High EQ 1
g
[O]Mid2 Cutoff
[Hz]
500...20.00k
Sets the center frequency for Mid/
High EQ 2 (peaking type)
Q 0.5...10.0
Sets the band width of Mid/High EQ
2
Gain [dB] –18...+18 Sets the gain of Mid/High EQ 2
PHASER
h
[P]LFO
Frequency [Hz]
0.02...20.00 Sets the speed of the LFO
LFO Waveform Triangle, Sine Selects the LFO Waveform
i
[P]Manual 0...100
Sets the frequency to which the
effect is applied
Depth 0...100 Sets the depth of LFO modulation
Resonance –100...+100
Sets the resonance amount
j
[P]Phaser Wet/
Dry
-Wet, -
1:99...Dry...99:1
, Wet
Sets the phaser effect balance
Src Off...Tempo
Selects the Wet/Dry modulation
source for the phaser
Amt –100...+100
Sets the Wet/Dry modulation
amount for the phaser
k
[P]Output
Mode Normal,
Wet Invert
Selects the phaser output mode
Routing
OD/HG
Phaser, Phaser
OD/HG
Switches the order of the overdrive
and phaser
l
Wet/Dry
Dry, 1:99...99:1,
Wet Balance between the wet and dry
signal
Src Off...Tempo
Table , “Dynamic Modulation
sources,” on page 283
Amt –100...+100 Amount of modulation source
Left
Right
FX Amt
FX Amt
FX Amt = 100: Mono In - Stereo Out / FX Amt = 0: Stereo In - Stereo Out
+
Routing
Overdrive / Hi-Gain
3 Band PEQ
Output Level
Mode: Overdrive / Hi-Gain
Drive
Driver
Phaser
Phaser
Resonance
LFO: Tri / Sine
Phaser FX Amt
Normal
Wet Invert
Output Mode
–
+
OD/HI-GAIN
a
[O]Drive Mode
Overdrive, Hi-
Gain Switches between overdrive and
high-gain distortion
Drive 1...100
Sets the degree of distortion
b
[O]Output
Level
0...50 Sets the overdrive output level
Src Off...Tempo
Selects the modulation source for
the overdrive output level
Amt –50...+50
Sets the modulation amount of the
overdrive output level
e
[O]Low Cutoff
[Hz]
20...1.00k
Sets the center frequency for Low
EQ (shelving type)
Gain [dB] –18...+18 Sets the gain of Low EQ
f
[O]Mid1 Cutoff
[Hz]
300...10.00k
Sets the center frequency for Mid/
High EQ 1 (peaking type)
Q 0.5...10.0
Sets the band width of Mid/High EQ
1
Gain [dB] –18...+18 Sets the gain of Mid/High EQ 1
g
[O]Mid2 Cutoff
[Hz]
500...20.00k
Sets the center frequency for Mid/
High EQ 2 (peaking type)
Q 0.5...10.0
Sets the band width of Mid/High EQ
2
Gain [dB] –18...+18 Sets the gain of Mid/High EQ 2
MULTITAP DELAY
h
[D]Tap1 Time
[msec]
0.0...1360.0 Sets the Tap1 delay time
Tap1 Level 0...100
Sets the Tap1 output level
i
[D]Tap2 Time
[msec]
0.0...1360.0 Sets the Tap2 delay time
Feedback –100...+100 Sets the Tap2 feedback amount
j
[D]High Damp
[%]
0...100
Sets the damping amount in the
high range
k
[D]Mt.Delay
Wet/Dry Dry, 1:99...99:1,
Wet Sets the multitap delay effect
balance
Src Off...Tempo
Selects the Wet/Dry modulation
source for the multitap delay
Amt –100...+100
Sets the Wet/Dry modulation
amount for the multitap delay
l
Wet/Dry
Dry, 1:99...99:1,
Wet Balance between the wet and dry
signal
Src Off...Tempo
Table , “Dynamic Modulation
sources,” on page 283
Amt –100...+100 Amount of modulation source
Left
Right
FX Amt
FX Amt
FX Amt = 100: Mono In - Mono Out / FX Amt = 0: Stereo In - Stereo Out
+
Multitap Delay
Feedback
High Damp
Delay
(2)
(1)
Mt.Dly FX Amt
Overdrive / Hi-Gain
3 Band PEQ
Output Level
Mode: Overdrive / Hi-Gain
Drive
Driver
