335 Effects
Mono-Mono Serial (Mono-Mono)
Appe
ndix

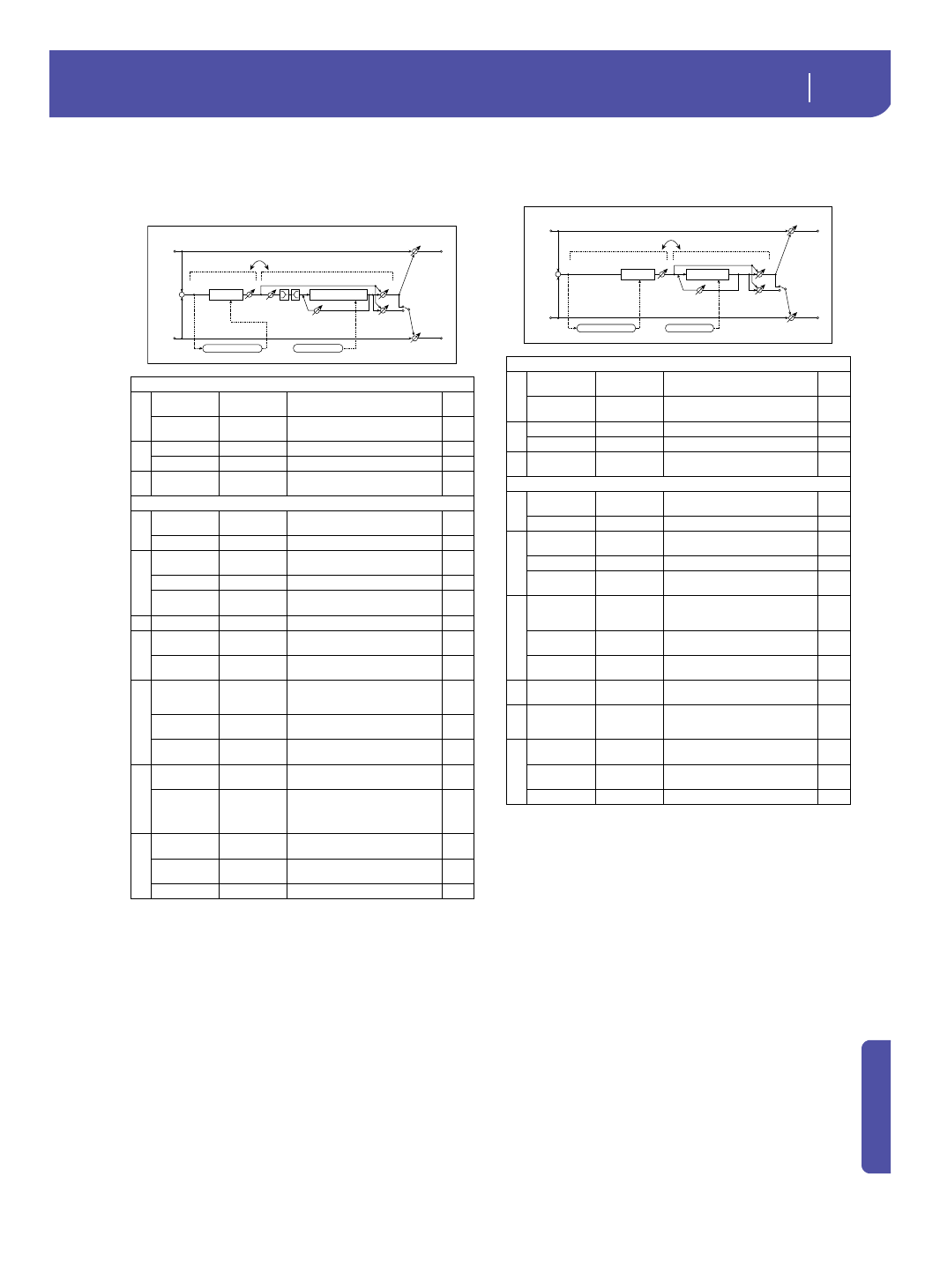

91: Limiter - Cho/Flng
(Limiter - Chorus/Flanger)
This effect combines a mono limiter and a chorus/flanger. You
can change the order of the effects.
92: Limiter - Phaser
This effect combines a mono limiter and a phaser. You can
change the order of the effects.
LIMITER
a
[L]Ratio
1.0 : 1...
50.0 : 1, Inf : 1
Sets the signal compression ratio
Threshold [dB] –40...0
Sets the level above which the
compressor is applied
b
[L]Attack 1...100 Sets the attack time
Release 1...100 Sets the release time
c
[L]Gain Adjust
[dB] –Inf,
–38...+24 Sets the limiter output gain
CHORUS/FLANGER
d
[F]LFO
Frequency [Hz]
0.02...20.00 Sets the speed of the LFO
LFO Waveform Triangle, Sine Selects the LFO Waveform
e
[F]Delay Time
[msec]
0.0...1350.0 Sets the delay time
Depth 0...100 Sets the depth of LFO modulation
Feedback –100...+100
Sets the feedback amount
f [F]EQ Trim 0...100 Sets the EQ input level
g
[F]Pre LEQ
Gain [dB]
–15...+15 Sets the gain of Low EQ
Pre HEQ Gain
[dB]
–15...+15 Sets the gain of High EQ
h
[F]Cho/Flng
Wet/Dry
-Wet, -
1:99...Dry...99:1
, Wet
Sets the effect balance of the
chorus/flanger
Src Off...Tempo
Selects the Wet/Dry modulation
source for the chorus/flanger
Amt –100...+100
Sets the Wet/Dry modulation
amount for the chorus/flanger
i
[F]Output
Mode Normal,
Wet Invert Selects the output mode for the
chorus/flanger
Routing
Limiter
Flanger,
Flanger
Limiter
Switches the order of the limiter and
chorus/flanger
j
Wet/Dry
Dry, 1:99...99:1,
Wet Balance between the wet and dry
signal
Src Off...Tempo
Table , “Dynamic Modulation
sources,” on page 283
Amt –100...+100 Amount of modulation source
Left
Right
FX Amt
FX Amt
FX Amt = 100: Mono In - Stereo Out / FX Amt = 0: Stereo In - Stereo Out
+
Routing
Chorus/Flanger
Feedback
Cho/Flng FX Amt
Normal
Wet Invert
Output Mode
–
+
Limiter
Limiter
Gain Adjust
Envelope - Control
LEQ HEQ EQ Trim
Chorus/Flanger
LFO: Tri / Sine
LIMITER
a
[L]Ratio
1.0 : 1...
50.0 : 1, Inf : 1
Sets the signal compression ratio
Threshold [dB] –40...0
Sets the level above which the
compressor is applied
b
[L]Attack 1...100 Sets the attack time
Release 1...100 Sets the release time
c
[L]Gain Adjust
[dB] –Inf,
–38...+24 Sets the limiter output gain
PHASER
d
[P]LFO
Frequency [Hz]
0.02...20.00 Sets the speed of the LFO
LFO Waveform Triangle, Sine Selects the LFO Waveform
e
[P]Manual 0...100
Sets the frequency to which the
effect is applied
Depth 0...100 Sets the depth of LFO modulation
Resonance –100...+100
Sets the resonance amount
f
[P]Phaser Wet/
Dry
-Wet, -
1:99...Dry...99:1
, Wet
Sets the phaser effect balance
Src Off...Tempo
Selects the phaser’s Wet/Dry
modulation source
Amt –100...+100
Sets the phaser’s Wet/Dry
modulation amount
g
[P]Output
Mode Normal,
Wet Invert
Selects the phaser output mode
h Routing
Limiter
Phaser, Phaser
Limiter
Switches the order of the limiter and
phaser
i
Wet/Dry
Dry, 1:99...99:1,
Wet Balance between the wet and dry
signal
Src Off...Tempo
Table , “Dynamic Modulation
sources,” on page 283
Amt –100...+100 Amount of modulation source
Left
Right
FX Amt
FX Amt
FX Amt = 100: Mono In - Stereo Out / FX Amt = 0: Stereo In - Stereo Out
+
Routing
Limiter
Limiter
Gain Adjust
Envelope - Control
Phaser
Phaser
Resonance
LFO: Tri / Sine
Phaser FX Amt
Normal
Wet Invert
Output Mode
–
+
