Reviewing ExtremeWare Vista Statistical Reports
Summit 200 Series Switch Installation and User Guide 283
• Out Errors
• Bad Checksums
Router Interface IP Statistics
The Router Interface IP Statistics give detailed traffic details at the VLAN level. For each interface the
table provides:
• VLAN name
• Interface ID
• IP Address
• Netmask
• Broadcast Address
• Amount in and out of the switch for the following units: packets, octets, multicast packets, broadcast
packets, errors, discards, and unknown protocols

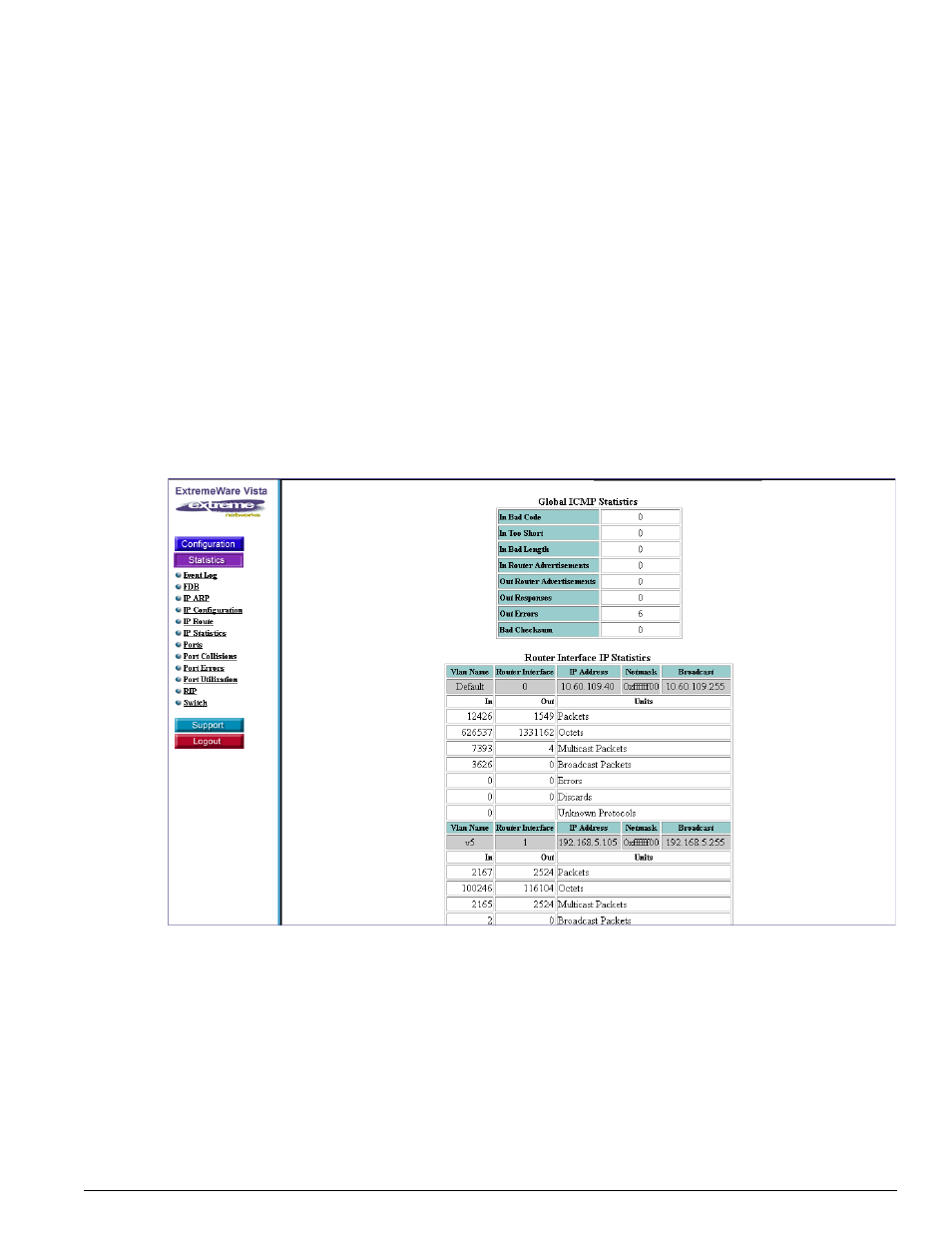

Figure 75: ICMP and IP Statistics
Ports
This window provides information about active ports as reported by the Summit 200 hardware. As
shown in Figure 76, the report consists of the following fields:
Port Number
Port Speed
