Network Address Translation (NAT)
This chapter covers the following topics:
•
•
Internet IP Addressing on page 136
•
Configuring VLANs for NAT on page 136
•
•
Configuring NAT Rules on page 138
•
Creating NAT Rules on page 139
•
Displaying NAT Settings on page 141
•
Overview
NAT is a feature that allows one set of IP addresses, typically private IP addresses, to be converted to
another set of IP addresses, typically public Internet IP addresses. This conversion is done transparently
by having a NAT device rewrite the source IP address and Layer 4 port of the packets.

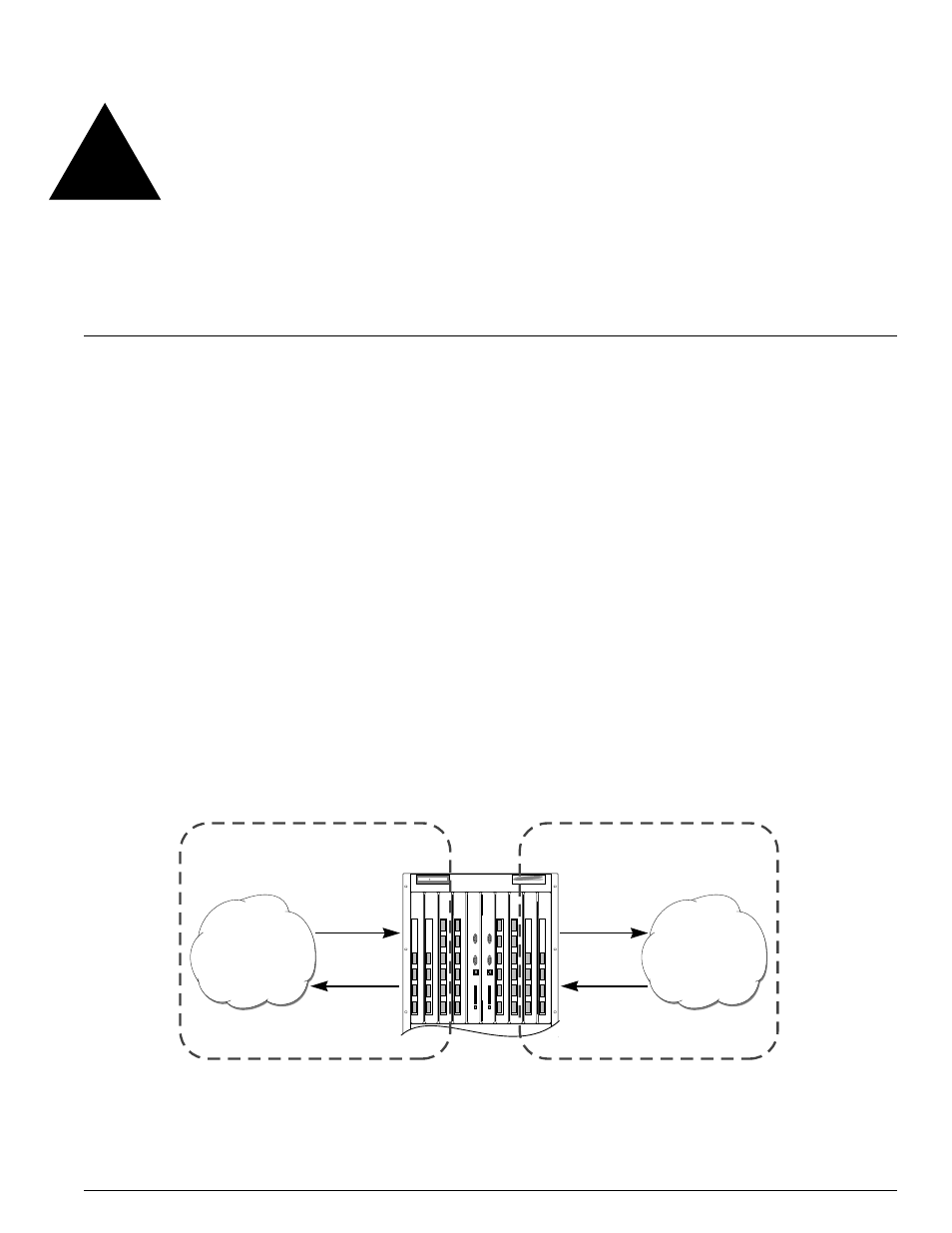

Figure 24: NAT Overview
EW_078
NAT
switch
Outgoing
Incoming
Outgoing
Incoming
Internet
Inside
Outside
Private
Network
