282 Summit 200 Series Switch Installation and User Guide
Using ExtremeWare Vista on the Summit 200
Statistics” and “Global IP Statistics”. For information about error counts on an interface, see “Global
ICMP Statistics”.
Global IP Statistics
The Global IP Statistics report IP traffic flow through the switch. As shown at the top of Figure 74, these
statistics are grouped into four logical groups:
• Inbound traffic
• Outbound traffic
• Bad packets received
• Other types of errors

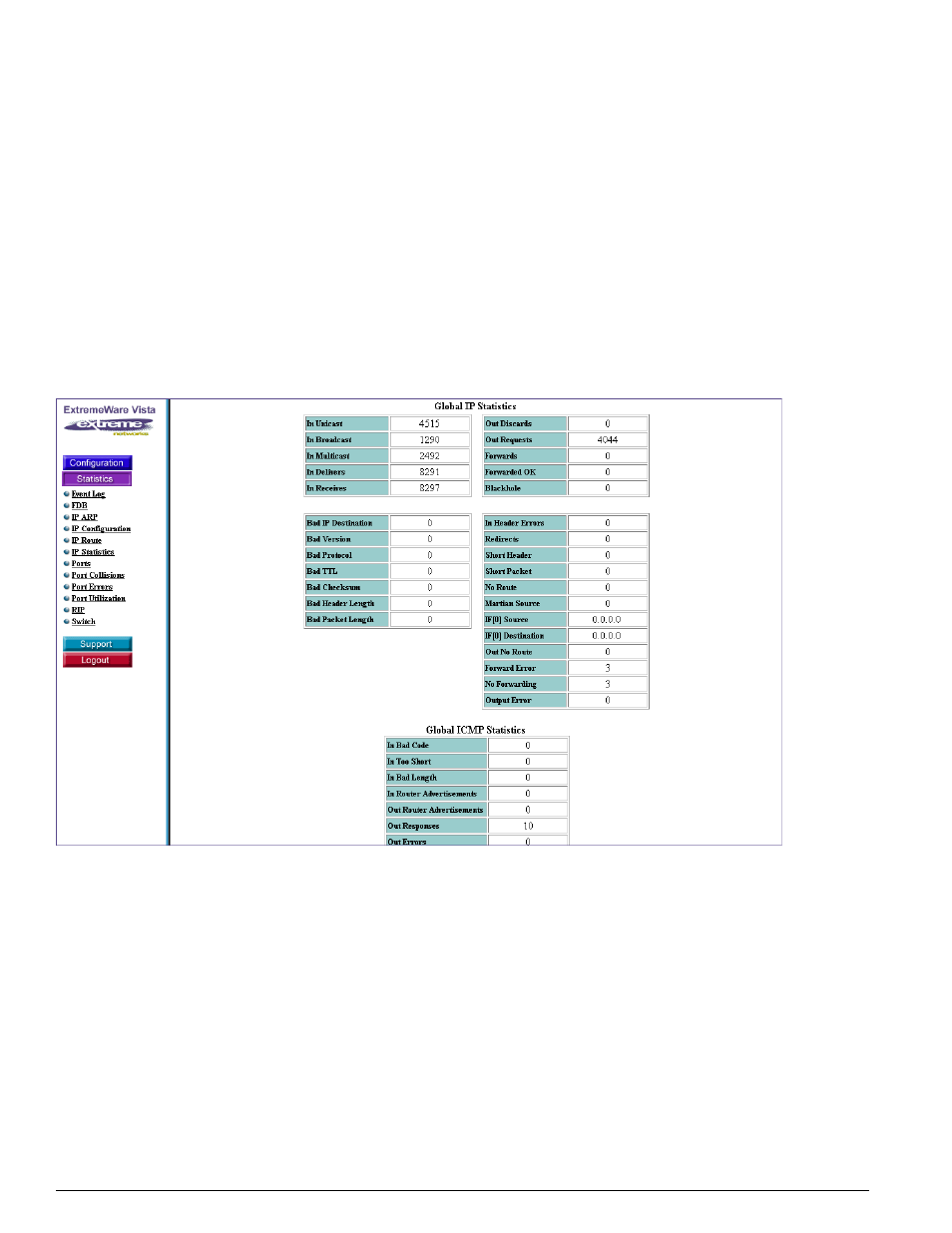

Figure 74: Global IP Statistics
Global ICMP Statistics
ICMP provides error reporting, flow control and first-hop gateway redirection. As shown in Figure 75,
the Global ICMP Statistics table provides information about error counts found in the following areas:
• In Bad Code
• In Too Short
• In Bad Length
• In Router Advertisements
• Out Router Advertisements
• Out Responses
