Configuring the Summit 200 using ExtremeWare Vista
Summit 200 Series Switch Installation and User Guide 257

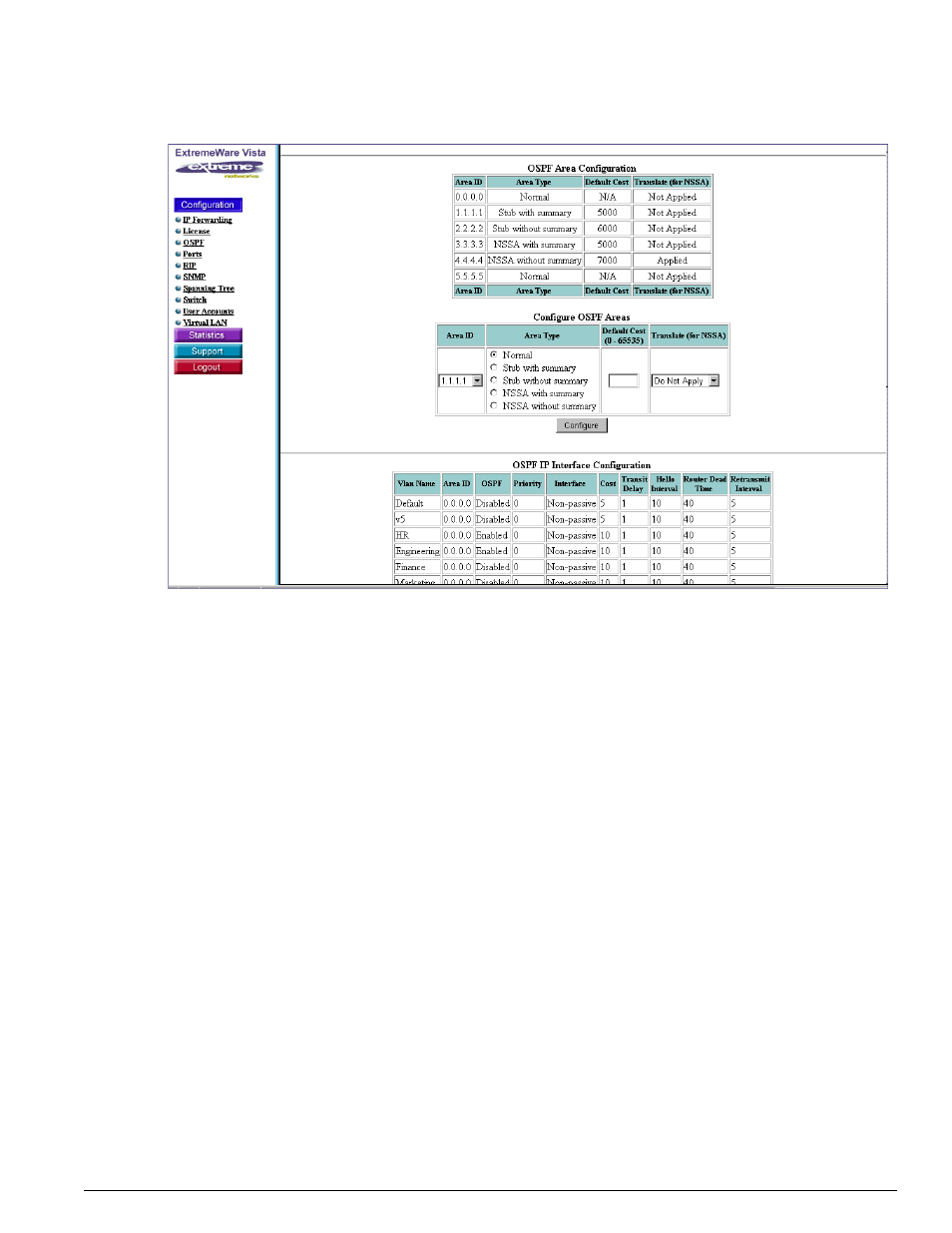

Figure 49: OSPF Area Configuration
For more information on area types, see “Areas” on page 211.
Configure an IP interface for OSPF
Using this portion of the window, you can:
• Review the existing OSPF IP interface configuration
• Associate a VLAN with an area ID
• Configure OSPF for each VLAN area
• Configure a route filter for non-OSPF routes exported into OSPF
• Configure the timers for one interface in the same OSPF area
• Configure miscellaneous OSPF parameters, such as cost
• Configure virtual links
As shown in Figure 50, the top table lists the existing OSPF IP interface configuration. The table consists
of the following fields:
VLAN name
Area ID
OSPF —Either enabled or disabled
Priority —Always set to zero for Summit 200
Interface —Either passive or non-passive
