h.
From “Configure” field, you can select “Modify” or “Remove” RADIUS server.
i.
If you select to add new RADIUS server entry, RADIUS server – add page will display
as shown in Figure 3.4.10.2.

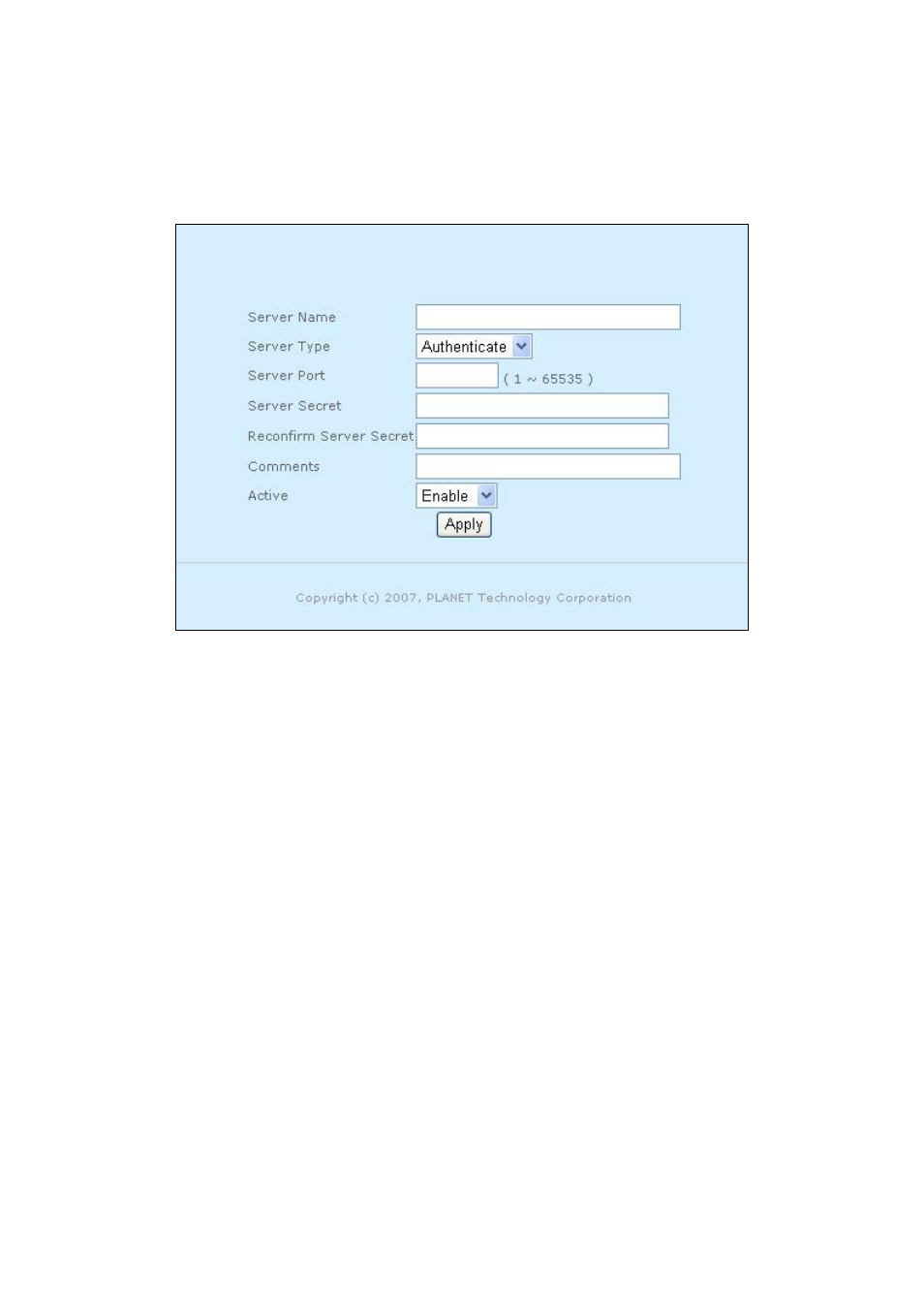

Figure 3.4.10.2: RADIUS server – add page
RADIUS server - add page contain the following parameter:
a.
Server Name – Enter the RADIUS server name.
b.
Server Type – Click on “Server Type” drop down menu to select “Authenticate” or
“Accounting” server type.
c.
Server Port – Enter the number of Server Port.
d.
Server Secret – Enter the Server Secret key.
e.
Reconfirm Server Secret – Re-enter the Server Secret key to confirm it.
f.
Comments – Enter RADIUS server comments.
g.
Active – Click on “Active” drop down menu to select enable or disable this entry.
h.
“Apply” button – Click on “Apply” button to confirm add new RADIUS server. New
settings are active after the device reboot.
i.
If you select to edit existing RADIUS server, a page similar to Figure 3.4.10.2 with
configured settings will be displayed.
