3.3.7
Network > IPSEC
(MAP-3100 only)
IP security (IPsec) is a suite of protocols for securing Internet Protocol communications by
encrypting and/or authenticating each IP packet in a data stream. It provides an extra level of
securing the data in the network. IPSEC configuration page is shown in Figure 3.3.7.1.

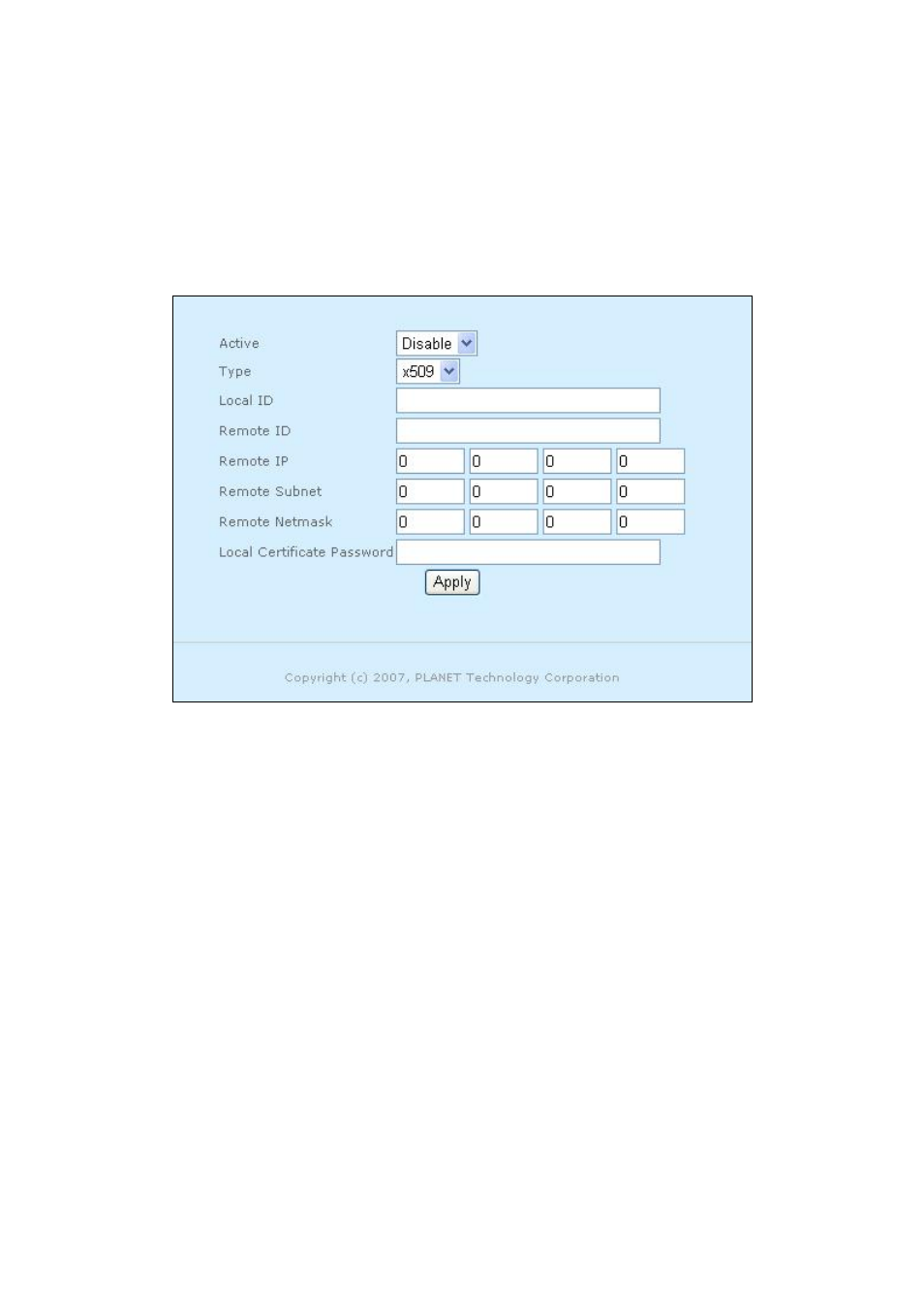

Figure 3.3.7.1: IPSEC configuration page
To configure IPSEC:
a. Click
on
“Active” drop down menu to enable or disable IPSEC service.
b. Click
on
“Type” drop down menu to select “x509”, “RSA”, or “PSK” type of IPSEC
service.
c.
Enter the local identity.
d.
Enter the remote identity.
e.
Enter the IP address of remote IP.
f.
Enter the IP address of remote Subnet.
g.
Enter the network mask.
h.
Enter local certificate password.
i. Click
on
“Apply” button if you have made any changes. New settings are active after
the device reboot.
