User interface
Operating Instructions Powador XP200-HV TL, XP250-HV TL, XP350-HV TL_EN Page 41
8.3 MMI main menu
ON OFF
PV
generator
Inverter
Grid
Circuit breaker CB10
Speaker
SD card Circuit breakers
MC21 + CB20
Fault History Statistics Setup
701.0V
External Limitation
Today: 0.0 kWh
Total: 0.0 kWh
400.0V
75.8kW 79.0kW
45.0°C
Date/Time
Displayed button colours
Colour Meaning
Green Normal operation
Red Fault
(not for switches CB10, MC21 and CB20)
Grey Not in use

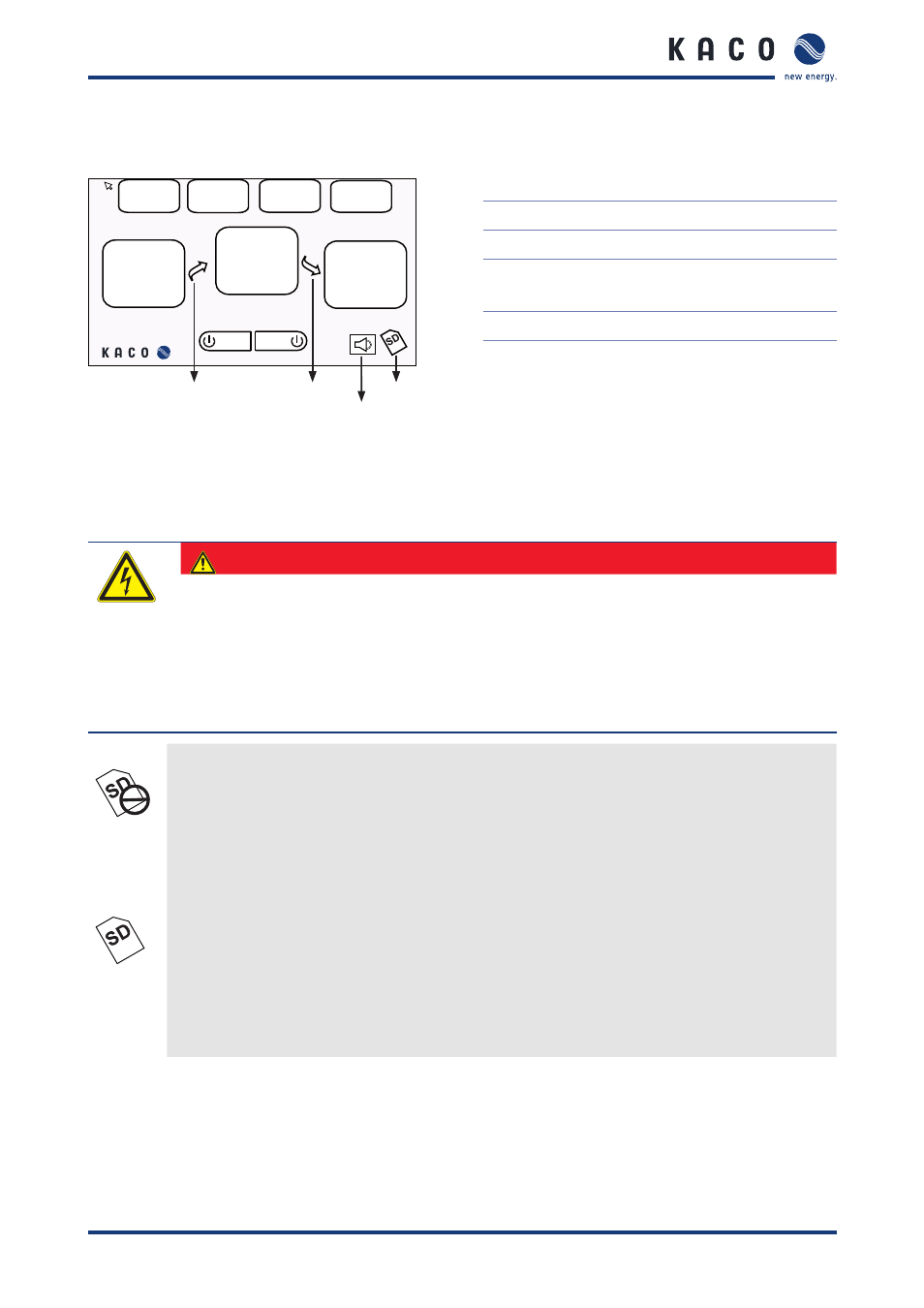

Figure 40: Display when the MMI starts up
8.3.1 Changing the SD card, status display
DANGER
Lethal voltages are still present in the terminals and lines of the inverter even after the inver-
ter has been switched off and disconnected!
Coming into contact with the lines and terminals in the inverter will cause serious injury or death.
Only authorised electricians who are approved by the supply grid operator may open, install and
maintain the inverter.
› Shut down the inverter before opening it.
› Do not touch the lines and terminals when switching the unit on and off!
Insert the SD card
“No SD in slot” icon
1. Shut down the inverter.
2. Open the inverter.
3. Slide the SD card into the slot until it locks into place.
4. Close the inverter.
5. Press the “ON” button. The inverter starts up.
“SD card in slot” icon
The inverter checks the card. If the SD card was detected, the “SD card in slot” icon appears in the
lower right-hand corner of the display.
1. Press the SD card icon.
2. Wait until the SAFE icon is displayed.
