554 13 MOD Functions
13.6 Ether
n
et Int
e
rf
ace

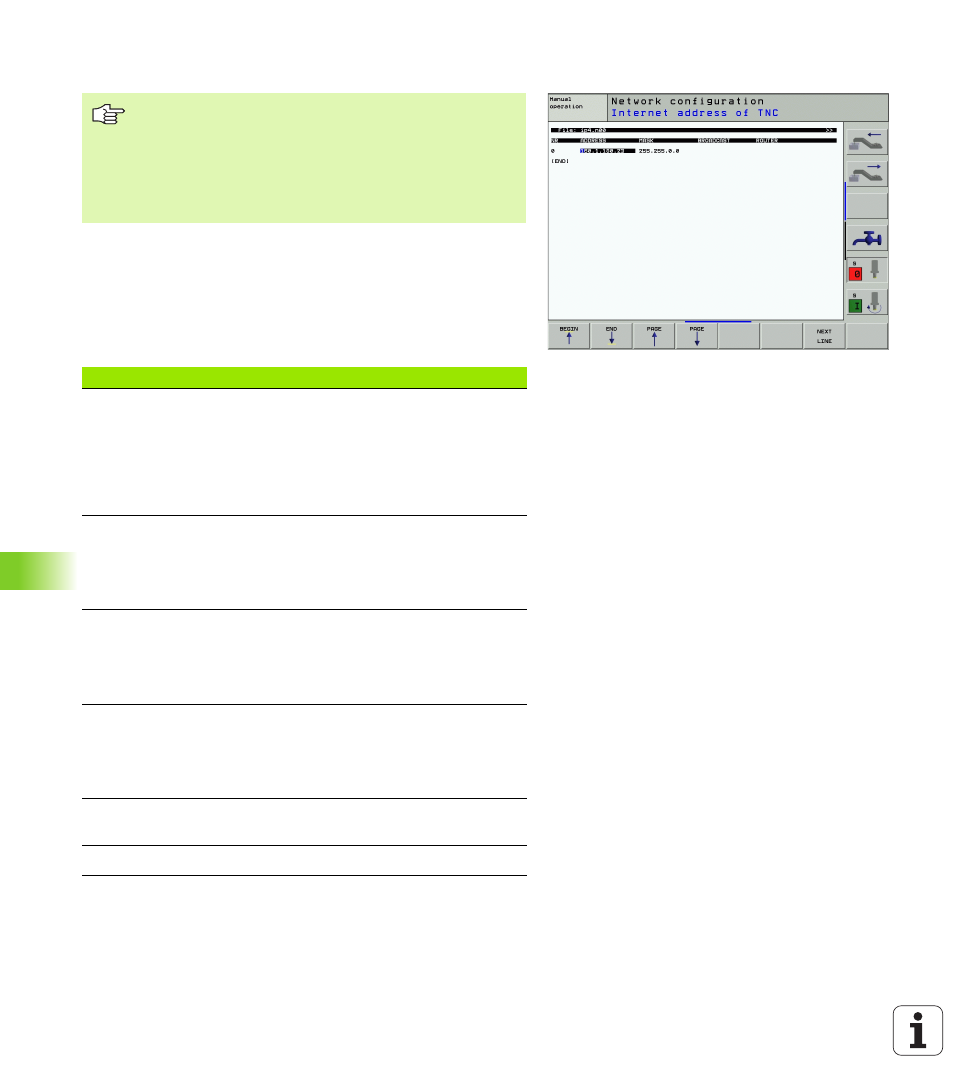

Configuring the TNC
8 In the Programming and Editing mode of operation, press the MOD
key. Enter the keyword NET123. The TNC will then display the main
screen for network configuration.
General network settings
8 Press the DEFINE NET soft key to enter the general network
settings and enter the following information:
To configure the dual-processor version: See “Network
Settings,” page 609.
Make sure that the person configuring your TNC is a
network specialist.
Please note that the TNC performs an automatic reset if
you change the IP address of the TNC.
Setting Meaning
ADDRESS Address that your network specialist must
assign to the TNC. Input: four numerical values
separated by points, e.g. 160.1.180.20 As an
alternative, the TNC can dynamically retrieve
the IP addess from a DHCP server. In this case,
enter DHCP. Note: The DHCP connection is an
FCL 2 function.
MASK The SUBNET MASK serves to differentiate
between the network ID and the host ID in the
network. Input: four numerical values separated
by points. Ask your network specialist for the
values, e.g. 255.255.0.0
BROADCAST The broadcast address of the control is required
only if it differs from the standard setting. The
standard setting is formed from the network ID
and the host ID, for which all bits are set to 1,
e.g. 160.1.255.255
ROUTER Internet address of your default router. Enter
the Internet address only if your network
consists of several parts. Input: four numerical
values separated by points. Ask your network
specialist for the values, e.g. 160.1.0.2
HOST Name under which the TNC identifies itself in
the network
DOMAIN Name of a domain in your company network
