Grass Valley K2 Media Client Service Manual v.3.3 - Manual (Page 58)

58 K2 Media Client Service Manual June 25, 2009
Chapter 3 Service Procedures
External storage K2 Media Clients with the optional Fibre Channel card
installed have only two adapters.
3. For each adapter name shown, verify that the adapter name is mapped correctly to
a physical port, as follows:
a. Under Network adapters, right-click an adapter and select Properties . The
Properties dialog box opens.

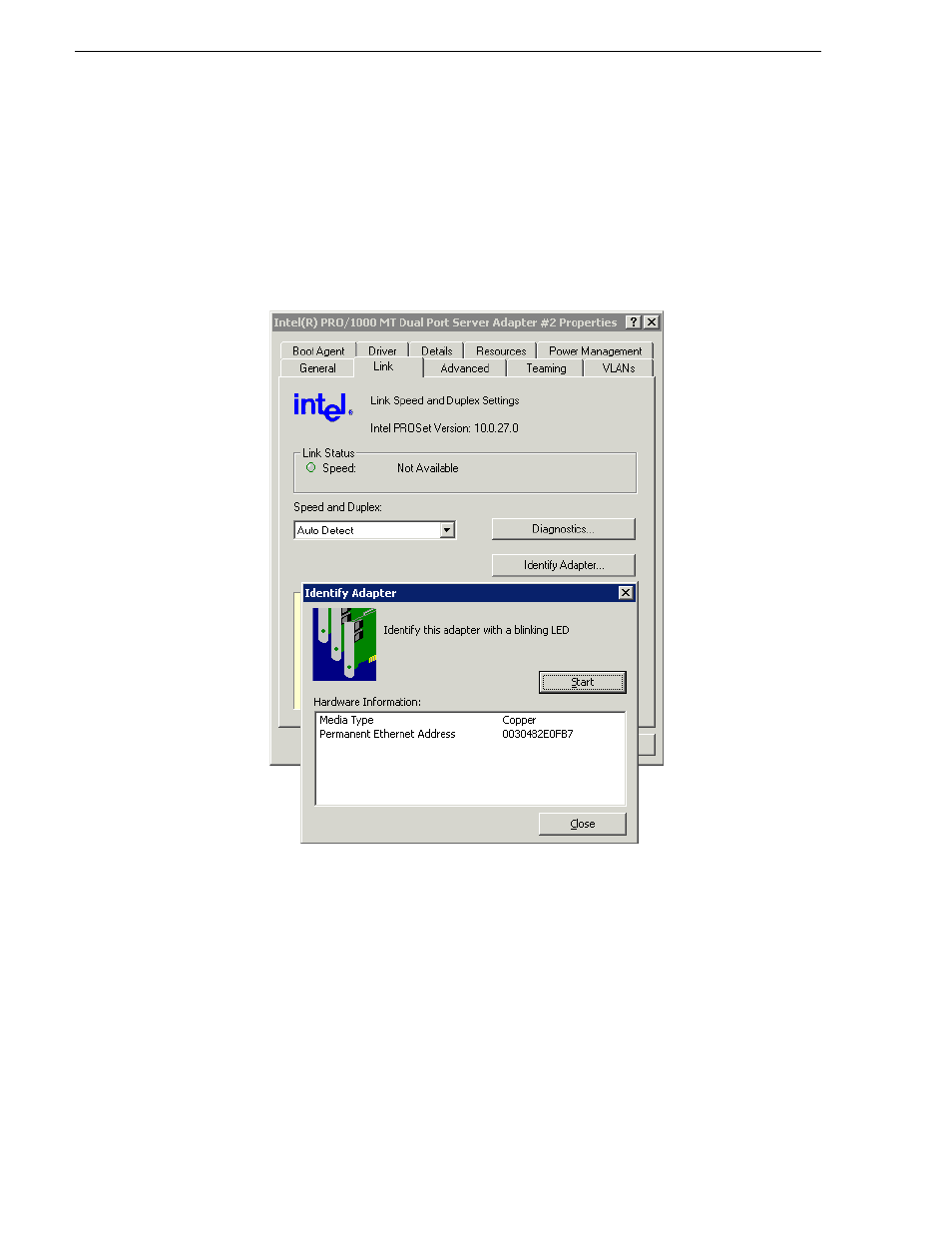

4. Select the Link tab and then click Identify Adapter . The Identify Adapter dialog box
opens.
5. Click Start .
