Page 138
138
K2 Media Client Service Manual
June 25, 2009
Chapter 5 Removing and replacing FRUs

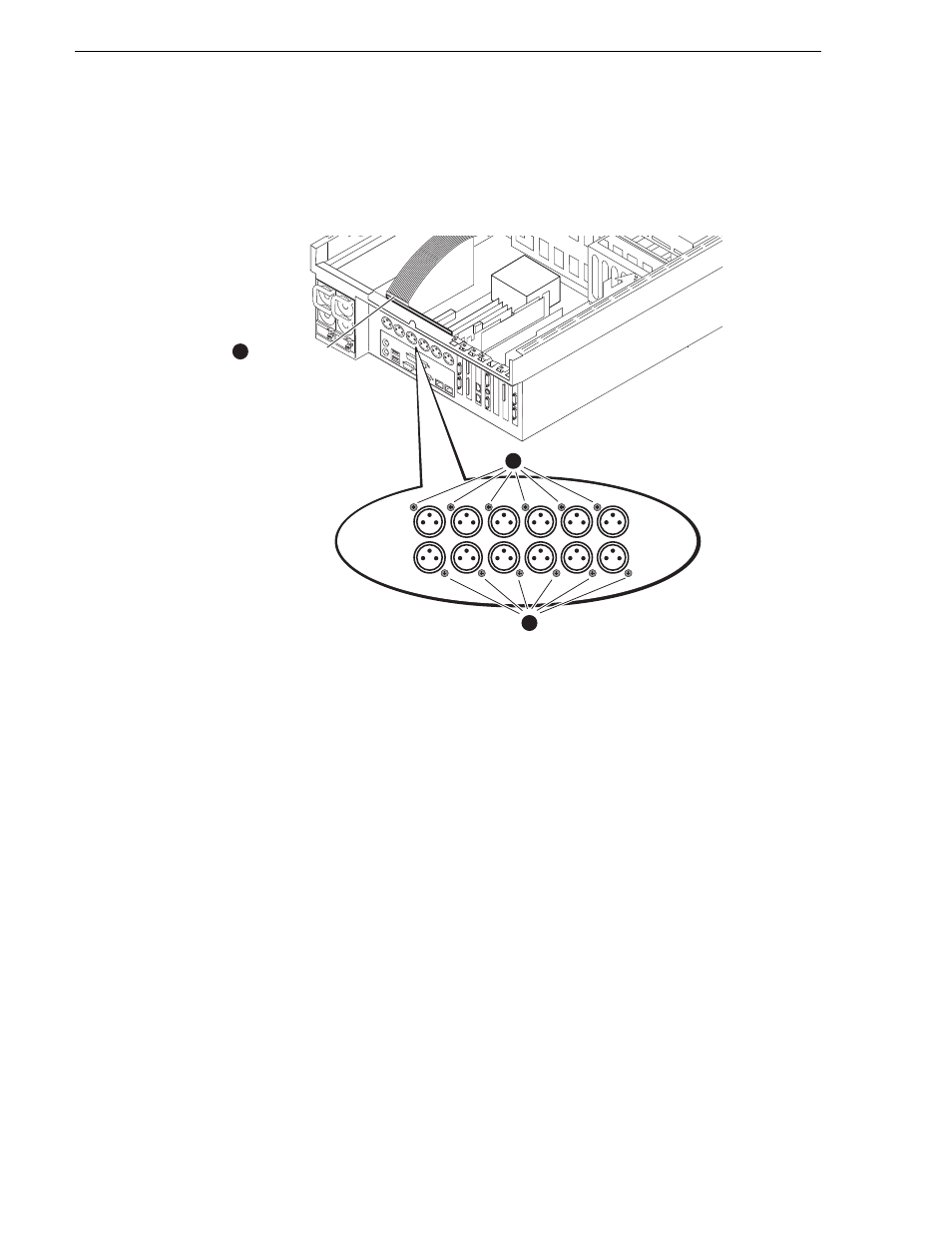

XLR board removal
To remove the XLR board, first remove the top cover and the codec board then
proceed as illustrated.
When installing the replacement XLR board, apply pressure as you insert the screws
as the screws must cut their own threads.
Disconnect
cable
1
Remove screws (phillips head)
2
Remove screws (phillips head)
2
