CPU motherboard replacement
Install baseplate bracket
Skip this step if:
• The faulty motherboard was a Type II or Type III motherboard. In this case, the
baseplate bracket is already in place. Skip ahead to “Install replacement
motherboard” .
Do this step if:
• The faulty motherboard was a Type I motherboard. You must install the baseplate
bracket to support the replacement Type III motherboard.

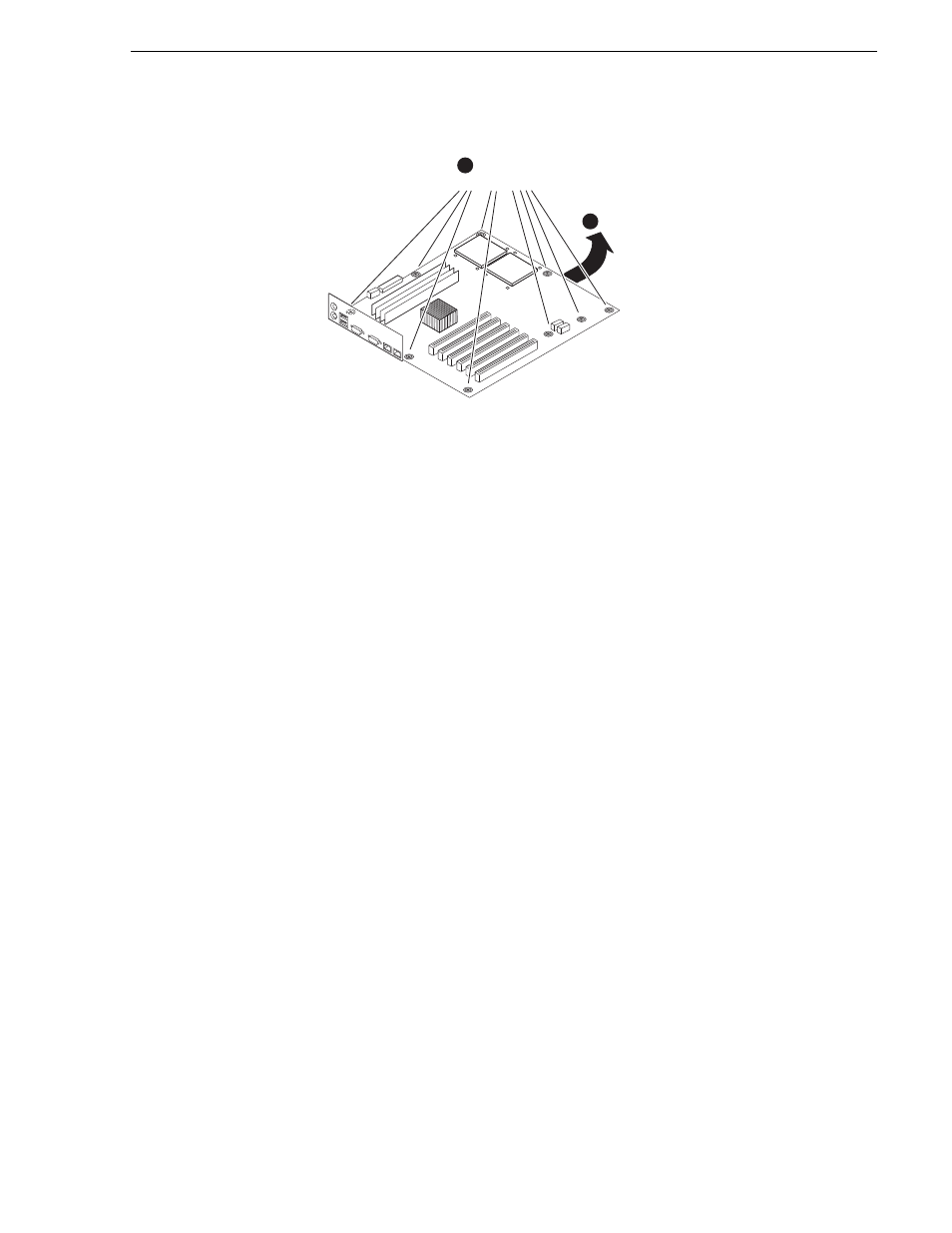

Proceed as illustrated.
Remove
9 screws 5
Lift out 6
