K2 Media Client Service Manual

June 25, 2009

Chapter 5 Removing and replacing FRUs

Front panel removal

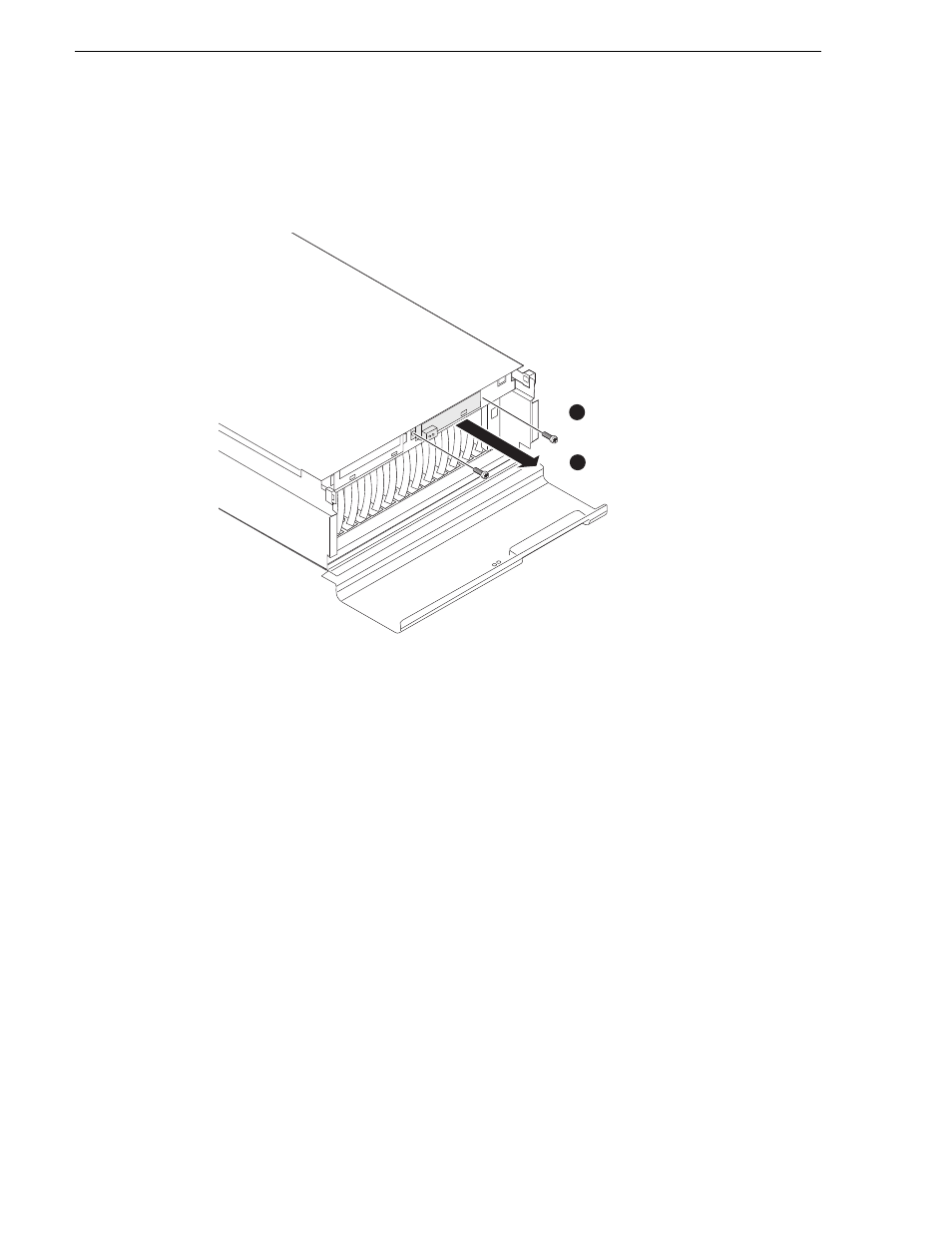

To remove the front panel, first remove the fan module, then proceed as illustrated.

You must remove the front panel before removing the SCSI interface board.

Remove screws

1

Slide panel
straight out

2
