49
CopperHead 3400
User Guide
SMPTE Hybrid Fiber between the MPS Power Unit and Camera Unit

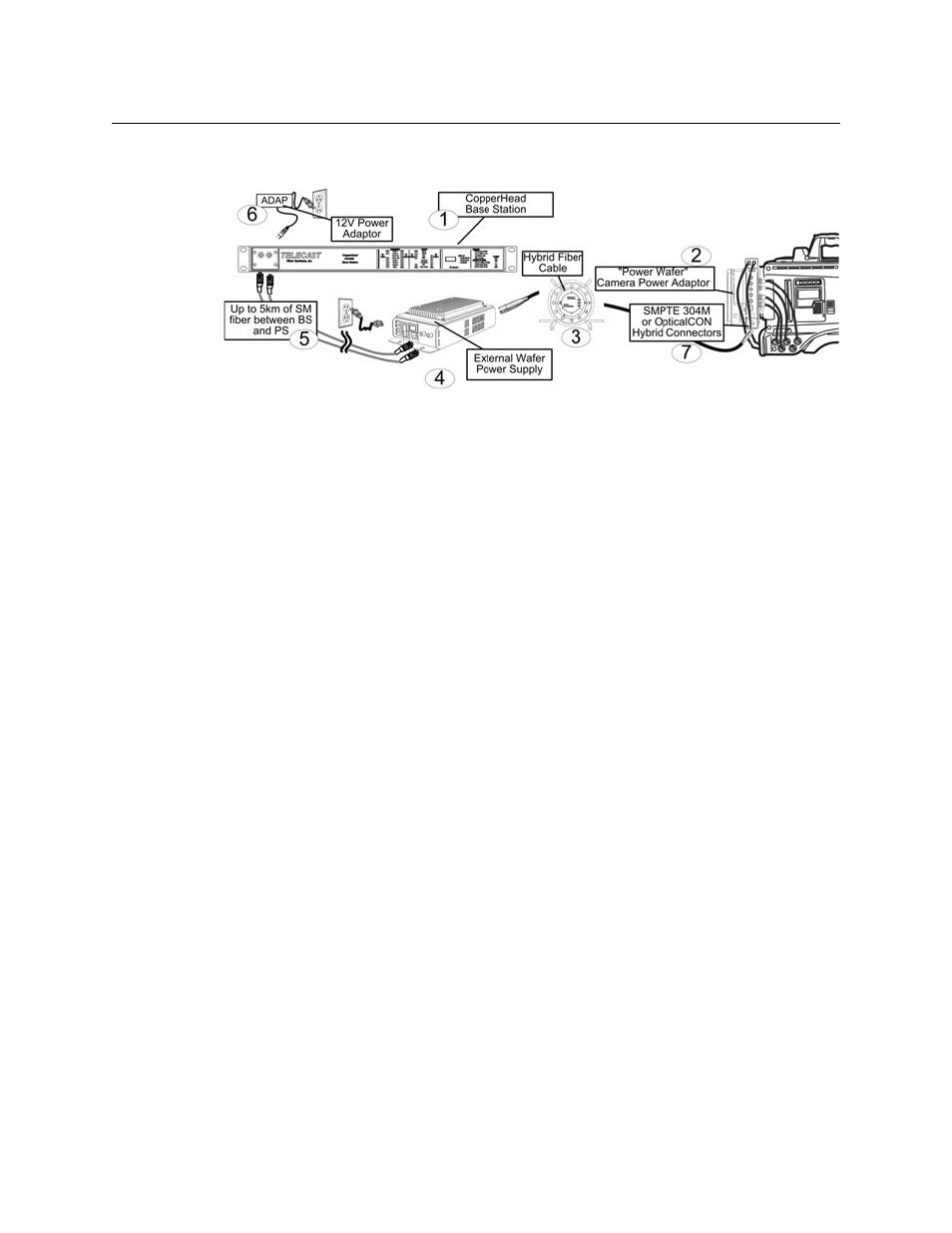

Fig. 5-4: SMPTE Hybrid Fiber between the MPS Power Unit and Camera Unit
• Between the Base Station (1) and the External Wafer Power Supply (4), connect a pair
of ST Fiber Cables (5).
• Power the External Wafer Power Supply locally by connecting to AC Power. Between
the External Wafer Power Supply (4)
and the Camera Unit, connect a length of Hybrid
Fiber Cable (3). At each end of the fiber cable will be either an OpticalCON or an SMPTE
304M Connector (7).
• The Base Station connector (1) may be mounted either on the front or back of the Base
Station. The camera will be powered by the CopperHead Power Wafer Camera Power
Supply (2).
• The Base Station will be powered by connection to local AC power (6).
